Payment & Shipping Terms:
|Product Name:||Folding Partition Walls||Material:||MDF|
|Finish:||Melamine||Package:||Standard Wooden Case|
|Function:||Soundproof Partition Wall Panels||Frame Material:||Aluminum Alloy Profile|

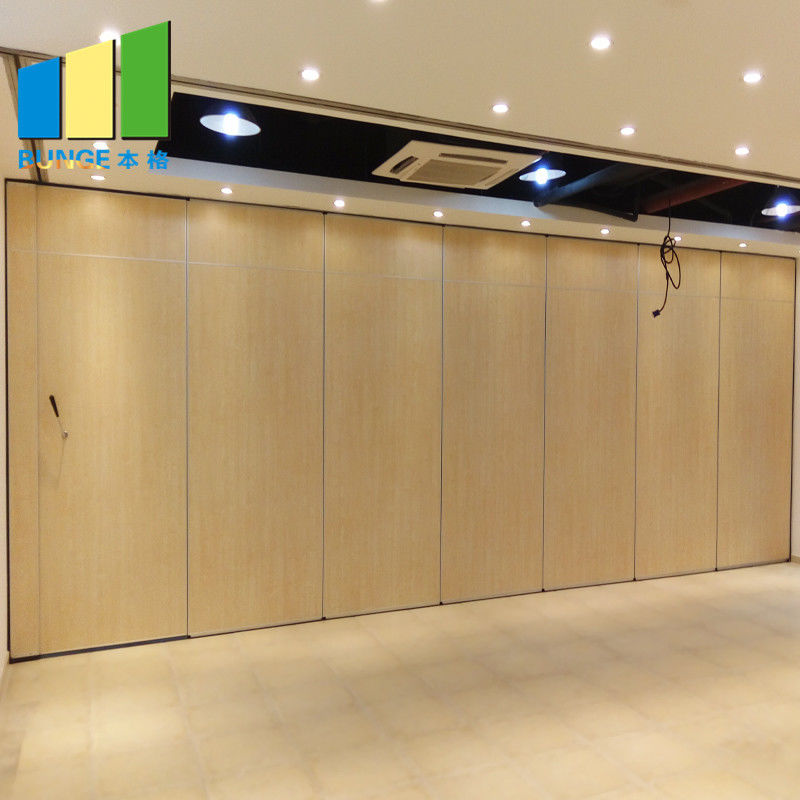

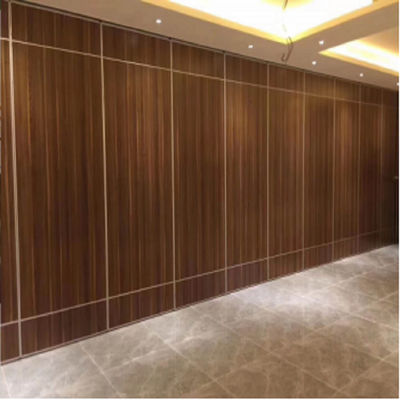

Ultra high movable sound proof partition wall banquet hall folding partition wall manufacturer china
Our partitions are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference and exhibition centers. Modernfold never loses sight of the fact that each project is unique and demands individualized attention to design, product selection, installation, and service.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
Packaging & Delivery
Selling Units:Single item
Single package size: 4000X1100X100 cm
Single gross weight:26.0 kg
Package Type:Carton package, MDF batten on four section sides ,foam board on both front face
Lead Time :
|Quantity(Square Meter)||1 - 50||51 - 200||201 - 500||>500|
|Est. Time(days)||7||18||28||To be negotiated|
|Modernized Soundproof Movable partition features|
|1.Hanging on ceiling||The floor without a track, just put the rail mounted on the ceiling|
|2.Excellent Quality||Each pieces of partition can turn around 360 degree.|
|3.Stable and secure||After partition is stable and reliable, and is not easy to swing|
|4.Energy efficient||The large space divided into a small space, in order to reduce air conditioning power consumption;|
|5.Heatproof&fireproof||Good heat insulation performance, Adopt effective fire prevention materials|
|6.Elegant appearance||Surface any adornment, can unite with indoor adornment effect|
|7.Easy to collect||Can be hidden in the special coffer, does not affect the overall appearance|
|8.Various applications||Hotels, exhibition halls, restaurants, multi-functional rooms etc.|
Components of Office Partition Walls:
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g
1:Factory direct price
3:Quick shipping with 5 days
4:Small order welcome
5:More than 3 years warranty
6:Support customer designs OEM ODM service
Very velcome to visit our Web and contact us!
Send us a question below to get a movable wall catolog and special discounts!
Contact Person: Felicity Huang
