Acoustic Folding Door Partition No Floor Track Sliding Folding Partition For Banquet Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNG |
| Model Number: | 85 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meter |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customizable | Function: | Acoustic Sliding |
| Service: | ODM | Finish: | Fabric |
| Thickness: | 85 Mm | Advantage: | Easy Flexibility |
| Package: | Standard Exported Package | Condition: | New |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

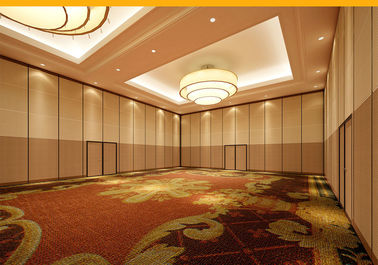

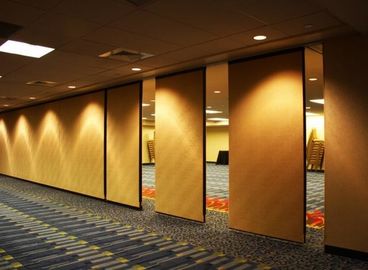

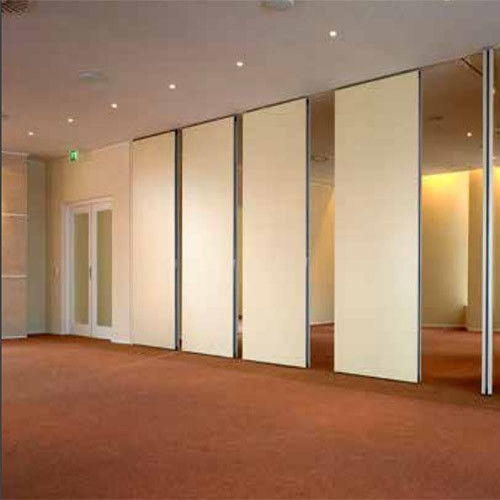

Acoustic Folding door partition no floor track sliding folding partition for banquet hall
Decsription
| Description of the system | |
| Item | Acoustic Movable partition wall |
| Applicable height | Suitable for below 6 meters |
| STC(dB) | 38 |
| Description of the partition wall | |
| Thickness(mm) | 85,customize available |
| Width(min/max)mm | 500-1230 |
| Height(min/max)mm | 2000-6000 |
| Suface Material | MDF, Melamine board, Hard fabric, Soft fabric,PU etc. |
| Main Material | 6063-T6 |
| Net Wight(Kgs/m2) | 28-40 |
The EBUNGE movable partition wall has the following characteristics
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2. Stable and safe: stable and reliable after partitioning, not easy to swing;
3. Compartment environmental protection: the effect of the compartment is good,
the maximum sound insulation coefficient can reach 50db;
4. Insulation and energy saving: excellent thermal insulation performance, according
to different occupancy rates, the hall is divided into small spaces to reduce
air conditioning power consumption;
5. Efficient fire prevention: It is made of high-efficiency fireproof material
and has good fireproof performance;
6. Beautiful and generous: the surface is arbitrarily decorated,
and can be combined with the interior decoration effect;
7. Retractable and flexible: the partition is freely retractable and flexible,
and one person can complete the whole process of partitioning;
8. Convenient collection: When closing the board, the partition can be hidden
in the special storage cabinet, which does not affect the overall appearance;
9. Wide range of applications: products used in hotels, hotels, restaurants,
conference halls, exhibition halls, high clean factories and offices.
EBUNGE movable partition walls have unparalleled quality, design flexibility, acoustic performance and lasting durability. Proudly manufactured in the Guangzhou, EBUNGE movable partition walls with aluminum frame have the most widespread application. The partition is constituted by a set of flat panel whose width ranges from 700mm to 1200mm. The panel is provided with various specifications and characteristics to satisfy most requirements of design and budget . Its thickness can be 65mm,80mm or 100mm. Additionally, each model comes with different grades of sound insulation as well as single or paired hinges. EBUNGE movable partition walls can be designed with the industry's most comprehensive range of dimensions, performance options, and decorative finishes. Increasingly, efficient space utilization becoming a must for offices, hotels, exhibition centers, studios and so on.
Sliding wall partitions is a hanging system, which only have the ceiling rails, but there is nothing on the floor, so it will not damage the carpet or floor at site. Removable office wall partitions can be customized, including the size, color and finishes. We can produce the Operable wall partitions wall based on the difference demands of different client. The price is difference based on the different size and material, Welcome to contact us for more details.
How to select the suitable movable wall for your site?
We have 4 types of movable wall , 65type , 85type , 100type and 125 ultra-high type . You can choose the right
movable wall upon the Height and Soundproof requirement as following,
65 type— Max height 3.5m, soundproof: 38dB to 43dB
85 type— Max height:5.5m,Soundproof: 43dB to 53dB
100 type— Max height:7m,Soundproof: 43dB to 55dB
125ultra-height — Max height:17m,Soundproof : 38dB to 48dB
What you should do on site ?
A beam(truss) should built on site for track installation .
The min distance leaving for track installation from false
ceiling to top ceiling is 200mm .
How to install ?
We will provide the installation manual and video guiding the installation job .
We can also dispatch the installation engineer supervising the installation as request .
What is lead time ?
The lead time is 7 days to 10 days .
How to transport ?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
How do the goods packing ?
Corrugating paper packaging, MDF batten cover all around corner .
The movable wall panel and track, fittings will be packed separately .
What is Procurement procedure ?
Firstly , send us the shop drawings(if the shop drawings is not available ,
you can tell us the height from false ceiling
to finished floor and width from wall to wall)
Secondly , we offer you the movable wall layout drawings for your confirmation
Thirdly , we quote the movable wall in accordance with confirmed drawings .
