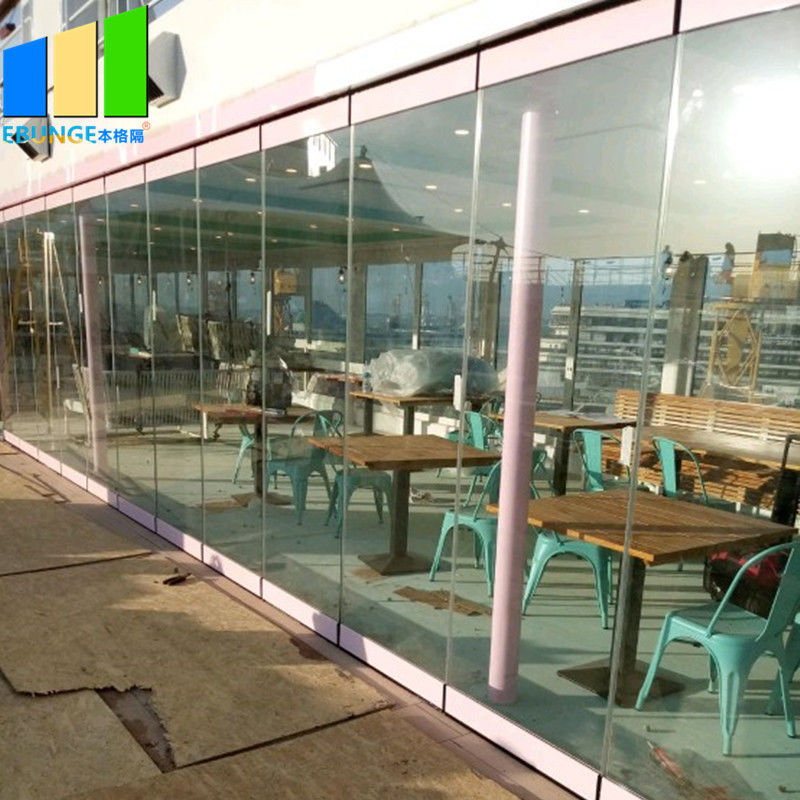

Office Movable Partition Walls Glass Folding Glass Door Exterior Frameless Glass Sliding Door
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 36 mm glass sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Frameless Glass Sliding Walls | Material: | Aluminum And Tempered Glass |
|---|---|---|---|
| Height: | Less Then 3 M | Width: | 500-1200 Mm |
| Thickness: | 36mm Aluminum Frame | Usage: | Room Dividing |
| Glass Thick: | 10mm/12mm | Warranty: | Glass Sliding Partition Walls Warranty 3-5 Years |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
2020 new office movable partition walls glass folding glass door exterior frameless glass sliding door
Specifications
1) Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2) To ensure additional friction connection, shall be integrated with magnetic strip.
3) Easy element adjustment after installation.
4) Sliding glass partition wall Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers. 5) Surface panel shall be of 9 mm or 12 mm tempered glass.
Technical parameters:
| Series | BG65 Glazing Glass Partition | BG85 Aluminum Frame Glass Partition | BG85 Sound proof Glass Partition |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 36mm | 85mm | 85mm |
| Panel height | Up to 3000mm | Up to 6000mm | Up to 6000mm |
| Max height | 3000mm | 6000mm | 6000mm |
| Panel width | 800-1100mm | 800-1100mm | 800-1100mm |
| Frame construction | Top and bottom aluminum | Aluminum frame | Aluminum frame |
| Glass thickness | 10mm or 12mm single glass | 10mm or 12mm single glass | double 10mm glass |
| Fire safety | Optional Class O | Optional Class O | Optional Class O |
| Vertical profiles | n/a | n/a | Aluminum anodised with sealing profiles |
| Retractable seals | n/a | n/a | Aluminum black with double rubber seals |
| Operation of seals | n/a | n/a | n/a |
| Pass doors | Fixed full height door | Fixed full height door | Fixed full height door |
| Locking | Optional lock to panel | Optional lock to panel | Optional lock to panel |
| Sound insulation | n/a | n/a | n/a |
| Weight | Approx 30 kg/sq M | Approx 32 kg/sq M | Approx 50 kg/sq M |
Installation:
Glass movable partition is composed of many single panels.Each panel is equipped with single or two hanging rollers.It depends on the horizontal hanging roller to make the partition panel hanging along the track.The vertical contact points of each single panel are connected by concave and convex positions.The seal rubbers are embedded and panel top and bottom parts are equipped with a retractable mechanism.
When closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.
Application:
Hotel on the hanging rail activities partition products on the hotel hanging rails off the general framework of the aluminum frame material processing and production, internal partition expansion board, suitable for high-end hotel private rooms, banquet halls, conference rooms, showrooms, mufti-function Hall and so on.
The sliding door base board is a MDF board or glass magnesium board. The decorative surface can be leather (cloth art) hard bag, soft bag, wallpaper, color steel veneer, hollow veneer and so on.
