|Product Name:||Acoustic Room Dividers||Height:||2 - 4 Meters|
|Finish:||Laminate||Application:||Restaurant Room Dividers|
65 MM Thick Movable Foldable Partition Wall MDF Acoustic Room Dividers for Hospital
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)|
Acoustic room dividers details

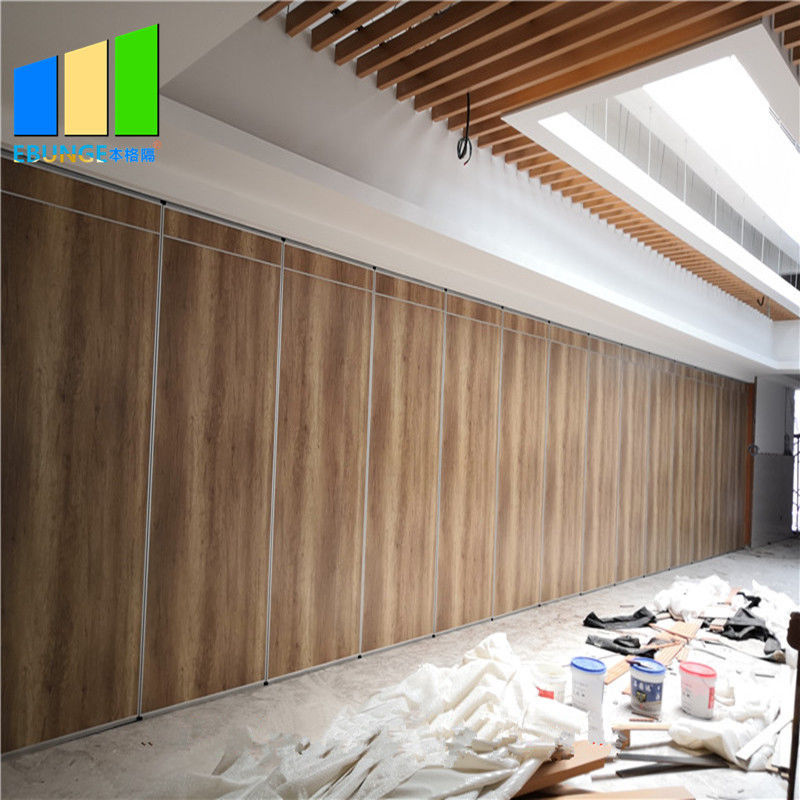

BUNGE acoustic room dividers system is a movable soundproof room partition system which forms a removable wall. The acoustic room dividers are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, movable partition wall has excellent soundproofing performance and operation easily.
The acoustic room divider is a hanging system, which have the ceiling tracks, but have no floor tracks. It means that there is nothing on the floor, so it will not damage the carpet and floor at site. And they are sliding, folding and movable.
2. Size Customized.
Acoustic room divider is a whole customized product. We can produce the movable partition walls based on the different demands of different client, including the size, the colors and the finishes. The normal thickness is 65, 85 and 100 mm thick, the maximum thickness is 130 mm. The width is available between 800-1220 mm and the maximum height can up to 17 meters.
3. Different Surfaces Available
There are several surfaces for client to choose. Such as:
MDF or Plywood(this is a raw finish, the client can paint or put the wallpaper on the panels).
Melamine or laminate(this is the most popular surface for clients, because it is most economical, there are more than 60 colors to choose and very easy to maintain).
Fabric or Leather(soft cover and hard cover also available, of course it will be sound proofing than other surfaces).
Glass or mirror(very popular in dancing room and music school).
Acoustic panels(such as the polyester acoustic panels, wooden grooved acoustic panels and wooden perforated acoustic panels).
Landscape painting PU leather(the client can choose the most favorite picture or drawing, then we can print and put it on the panels as surfaces.)
