|Product Name:||Acoustic Room Dividers||Height:||2 - 4 Meters|
|Finish:||Laminate||Application:||Restaurant Room Dividers|

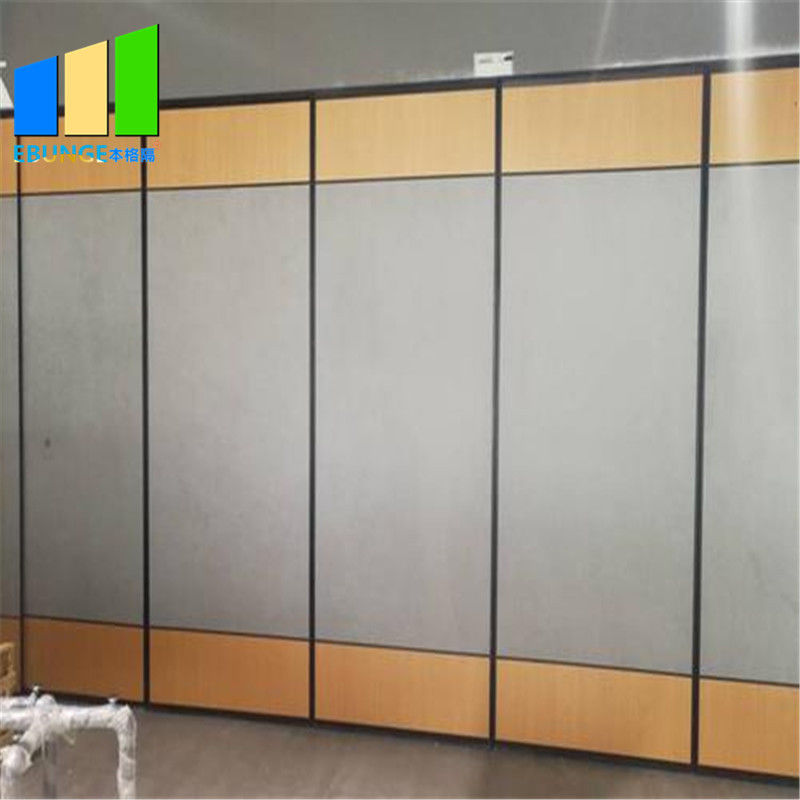

India Folding High Partition Banquet Hall Wooden Acoustic Room Divider for Studio
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)|
Do you know how to use this acoustic room dividers exactly?
Firstly, how to move the acoustic room dividers panels?
All of the operation should be gentle and safe. Use both hands to grasp the PANEL on both sides of the screen in the direction of the rail lightly pull the screen, then turn the movable partition wall panel in the direction of the rail.
After pushing the acoustic room dividers panel to the position where it should be placed, fix them.
Tip: When pushing the acoustic room dividers panels to the intersection, pay attention to the direction of the rail, and then push the panel along the rail to the position where it should be placed.
Secondly, how to fix the panels?
Hold the acoustic room dividers panel with one hand and put the handle into the hexagonal steel at 1100 MM on the side of the panel, and grasp the handle to turn 180 degrees clockwise (or continuously), the telescopic seal inside the panel will pop up to fix the screen.
Insert the handle into the groove on the side of the panel, and pull the handle up to open the telescopic seal inside the panel to fix it. After putting the whole set of panels, please check if the panels are straight? And whether it is on the same plane as the rail, if it is not straight, then retract the upper and lower telescopic seals to adjust until the panel is straight.
Thirdly, how to operate telescopic panels?
Usually, the last panel of the partitions is a retractable panel, we need to push it to the position where it should be placed, and then the upper and lower movable seals are pulled up in the side vertical groove, then place the handle in the operating hole of the retractable panel surface and turn it counterclockwise until the side of the telescopic aluminum plate is pressed against the wall.
Fourth, how to operate the pass door?
Push the pass door to the position where it should be placed and touch the screen in front. Insert the handle into the groove on the side of the panel, and pull the handle up to open the telescopic seal on the inside of the screen to fix the panel. Open the small door, insert the handle into the operation hole of the other side of the panel, and move the handle upward to open the flexible seal on the other side of the screen to fix it.
Fifth. How to collect panels?
1. If there is a pass door, firstly rotate 180 degrees through the square hole on both sides of the door in the middle of the door, loosen the upper and lower seals through the transmission wheel, and then close the pass door;
2. Open the telescopic aluminum plate and the upper and lower seals of the last panel;
3. Retract the telescopic aluminum plate of the last panel, so that the distance generated by it can at least rotate the distance of the panels;
4. Push the panels along the direction of the rail to the position of the screen;
5. After each set of panel is collected in the same way, press each of the two panels to minimize the distance between the panel and panel. If necessary, the upper and lower movable seals of the last panel placed at the storage can be opened to make it press the rails and the ground, so as to prevent others from pulling the panels out.
