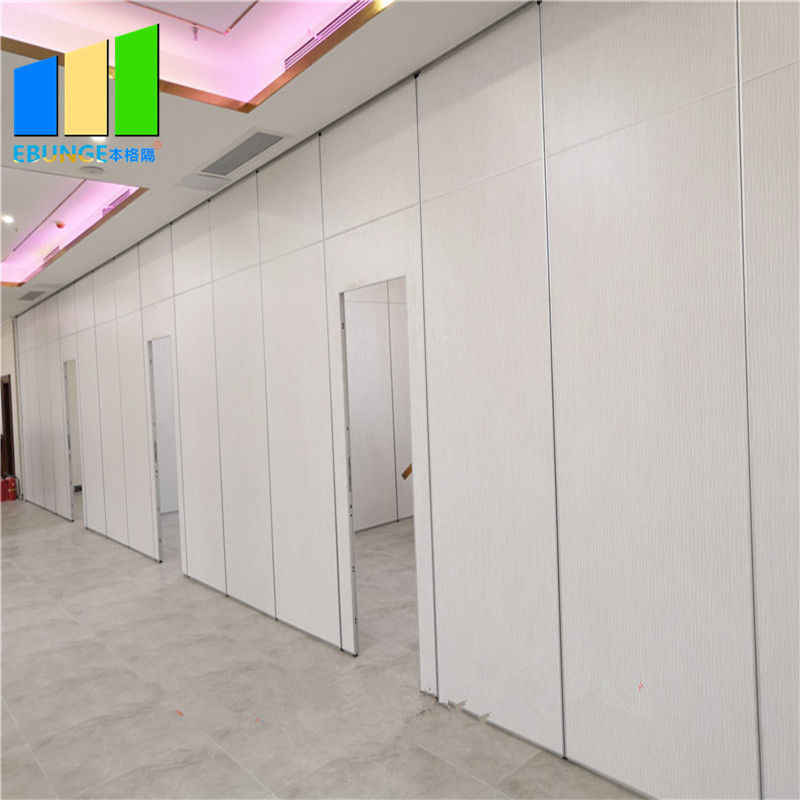

Star Hotel Decoration Operable Folding Partition Wall For Banquet Hall Philippines
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Door Partitions | Width: | 800 - 1230 Mm |
|---|---|---|---|
| Finish: | Bare Finish | Application: | Banquet Hall Partitions |
| Type: | Commercial Furniture | Position: | Interior |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Star Hotel Decoration Operable Folding Partition Wall for Banquet Hall Philippines
Folding partition walls philippines details
Folding partition walls philippines is our top of the range operable walls. The folding partition walls philippines system offers several layouts and stacking arrangements to create many useful areas within the working space.
Folding partition walls philippines are solid acoustic sliding partitions available in three varying thicknesses and laboratory tested sound rating up to Rw 53dB. This system is top hung. Each panel is individually supported by a track system mounted on the ceiling. No floor track is required.
To create the seal, each folding partition walls philippines panel has interlocking vertical profiles and retractable rubber seals. A handle inserted into the vertical edge of each panel operates the retractable seals. One half turn of the handle operates a mechanism inside the panel that moves the seal against the floor and against the track.
In most cases the last panel has a telescopic leading edge with a rubber seal operated with a handle inserted into the face of the panel. This sliding partition walls panel will close and seal the whole system. An option is also available for semi electric seal operation.
Face finishes available as standard are a wide choice of plain or wood grain melamine, real wood veneers, vinyl’s or spray painted. Doors can be inset into all sliding partition walls and can meet Disabled Door Access regulations if required. Glazing can also be incorporated into the panels.
Technical information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Folding partition walls operation
A large amount of repairs are as a result of incorrect operation by users. Folding partition walls panels philippines are deceptively heavy due to the ease of operation but are capable of serious crush injuries.
Your work place risk assessments should have taken this into account and state that only trained and authorized personnel may operate the wall. we will offer training on the safe and correct operation of your system to your staff.
Folding partition walls philippines do have a life cycle and there is a point where maintenance and repairs become either impossible or uneconomical.
