Aluminum Glass Folding Partition Walls Removing Sliding Glass Door

Aluminum Glass Folding Partition Walls Removing Sliding Glass Door

Product Details:

Place of Origin: Guangzhou,China
Brand Name: EBUNGE
Model Number: Series 65 mm glass folding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 60-119 USD per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Glass Folding Partition Walls Material: Aluminum And Tempered Glass
Height: Less Then 3 M Width: 500-1200 Mm
Thickness: 65mm Aluminum Frame Usage: Room Dividing
Glass Thick: 9mm Warranty: Glass Folding Partition Walls Warranty 3-5 Years
High Light:

acoustic folding partition

,

folding room partitions

Product Description

Aluminum glass folding partition walls door glass partition sliding door removing sliding glass door

Specifications

1) Glass partition wall interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2)To ensure additional friction connection, shall be integrated with magnetic strip.
3) Sliding partition wall easy element adjustment after installation.
4)Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
5) Sliding glass partition wall shall be of 10 mm or 12mm tempered glass to the required level.



Aluminum Glass Folding Partition Walls Removing Sliding Glass Door 0



Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Aluminum Glass Folding Partition Walls Removing Sliding Glass Door 1

Surface:

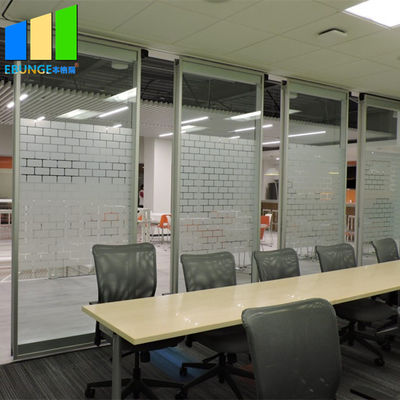

Movable glass partition usually used in office,restaurant,hotel lobby,wharehoue and any other place where we want to see the inside view and with less stringent insulation requirements. It is a good room divider,make our space flexible,maximize the use of our room.

For the glass partition wall,there are two type:aluminum frame partition and frameless aluminium partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition.

Aluminum Glass Folding Partition Walls Removing Sliding Glass Door 2

Our advantages:

1. Our office partition wall product are made of tempered glass and aluminium alloy

profile, we can supply high quality office partition wall.

2. We are factory, so we can provide competitive factory prices.

3. All of our products can be customized, you send us your height,width and all of your

requirements, the left things we will do. We will provide you perfect products with our

advance equipment and advance technologies.

4. We have good before sales and after sales service, any question you may ask us freely,

we will solute the problems immediatly.

5. Our warranty is 3-5 years, you may use our products without any worries.
