Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant

China Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant supplier
Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant supplier Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant supplier Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant supplier Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant supplier

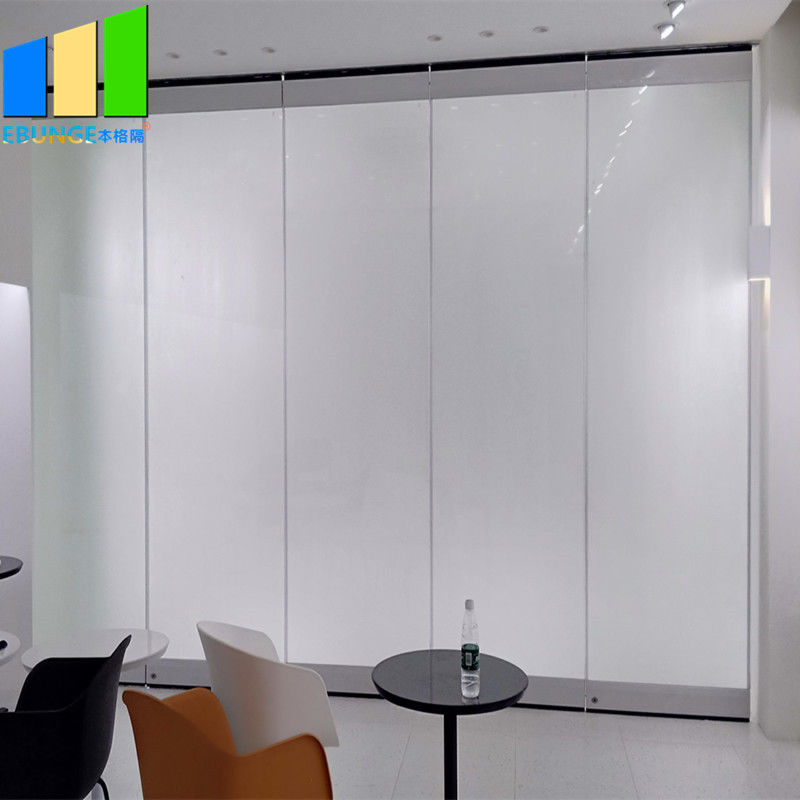

Large Image :  Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant

Product Details:

Place of Origin: Guangzhou,China
Brand Name: EBUNGE
Model Number: Series 36 mm glass sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 60-119 USD per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Contact Now
Detailed Product Description
Product Name: Glass Sliding Partition Walls Material: Aluminum And Tempered Glass
Height: Less Then 3 M Width: 500-1200 Mm
Thickness: 36mm Aluminum Frame Usage: Room Dividing
Glass Thick: 10mm/12mm Warranty: Glass Sliding Partition Walls Warranty 3-5 Years

Frameless glass door sliding partition walls glazed door movable partition glass walls for hotel restaurant

Specifications

1) Glass partition wall interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2) To ensure additional friction connection, shall be integrated with magnetic strip.
3) Sliding partition wall easy element adjustment after installation.
4) Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
5) Sliding glass partition wall shall be of 10 mm or 12mm tempered glass to the required level.



Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant



Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant

Surface:

Movable glass partition usually used in office,restaurant,hotel lobby,wharehoue and any other place where we want to see the inside view and with less stringent insulation requirements. It is a good room divider,make our space flexible,maximize the use of our room.

For the glass partition wall,there are two type:aluminum frame partition and frameless aluminium partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition.

Frameless Sliding Partition Walls Glazed Door Movable Partition Glass Walls For Restaurant



Operable walls are specially designed and customized to fully optimize room space. Often, a room is too big to serve a particular event. Operable walls are able to effortlessly configure a room into several small ones and thus allowing more activities to be held together at the same time. The room is able to reinstate to its original layout by moving away the walls easily.



Due to this great flexibility in changing rooms’ sizes, any venues ranging from small meeting room to a large exhibition hall can be altered to suit varying numbers of users. Operable walls are popular in exhibition and convention halls, hotels, conference rooms, auditorium and training centres.

Operable walls are also able to meet many sophisticated requirements such as segmented architectural curve walls and stepped floor. And with a maximum height limit of 15 meters, Operable walls are able to fulfill many complex designs.
