Fireproof Acoustic Movable Partition Wall With Door For Office Max Height 4000mm

Fireproof Acoustic Movable Partition Wall With Door For Office Max Height 4000mm

Product Details:

Place of Origin: Guangzhou,China
Brand Name: EBUNGE
Model Number: Series 65 mm acoustic partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 60-119 USD per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Acoustic Partition Wall Material: Aluminum And Mdf Board
Height: Less Then 4 M Width: 500-1200 Mm
Thickness: 65mm Aluminum Frame Type: 65mm,85mm,100mm
Finish: Melamine, Fabric, Leather, MDF Bare Finish Warranty: Acoustic Partition Wall Warranty 3-5 Years
High Light:

acoustic operable partitions

,

movable acoustic partition walls

Product Description

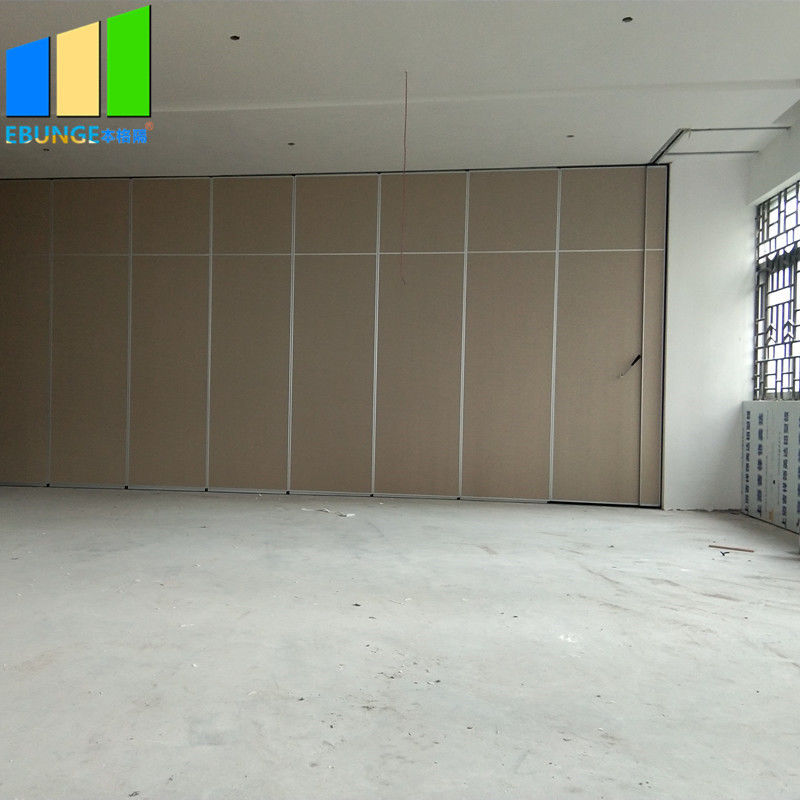

Fireproof Acoustic Movable Partition Wall With Door For Office Max Height 4000mm

Acoustic partition wall design material movable wall acoustic panel movable partition wall with door for office

Specification:

Acoustic partition wall are specified where functional space delineation is an integral element within the partition project.



Due to their flexibility and cost effectiveness, they allow large rooms to be conveniently sub-divided to maximize space utilization.



The acoustic room divider consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.

Fireproof Acoustic Movable Partition Wall With Door For Office Max Height 4000mm 0

Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Fireproof Acoustic Movable Partition Wall With Door For Office Max Height 4000mm 1

Acoustic Partition Wall Benefits:

1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;


2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;


3. Retractable and flexible: The partitions move freely, promote flexibility, and one person can complete the entire process of partitioning;


4. Convenient collection: when closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.



Fireproof Acoustic Movable Partition Wall With Door For Office Max Height 4000mm 2



Acoustic room divider operation:

All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails.



After pushing the screen to its place, fix the screen. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.
