Hanging System Folding Partition Walls Aluminum Soundproof Movable Wall For Dining Room
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm Aluminum Frame | Warranty: | 3-5 Years |
| Finish: | Melamine, Fabric, Leather, MDF Bare Finish | Application: | Gallery,theater,office,banquet Hall,hotel Ect |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

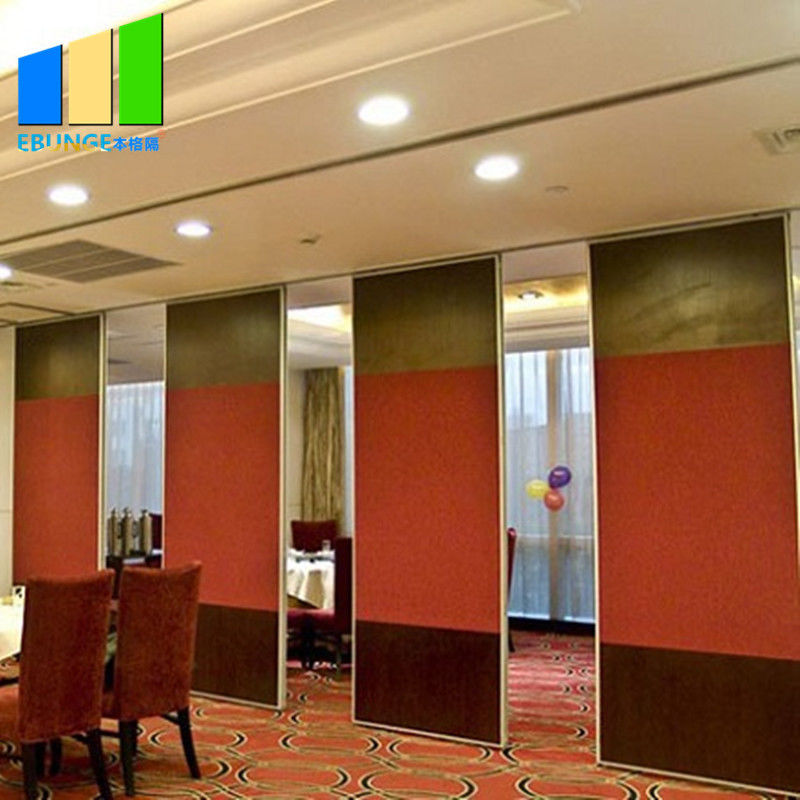

Hanging system folding partition walls aluminum soundproof movable wall for dining room
Description:
Folding partition walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.
The best door for maximum acoustic performance, with variable options on sound reduction from 32dB (Rw) to 53 dB(Rw).
Also available with 30 and 60 minute fire resistance.
Manual or Semi automatic operation.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Track system:
For single or paired panels up to 250kg. One 4-wheeled carrier is provided per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings.Resilient mounted body for quite operation and load distribution.special for center stacking option. Usual dimension from the ceiling to the structure is 200mm.
For panel up to 225kg. Two carriers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200 mm.
Installation:
When it comes to installing a sliding wall system to your premises, you can rest assured that folding partition walls make the process easier for you. Our sliding wall system is quick and easy to install, saving you time, effort and money.
Folding partition walls are ideal if you’re looking for a solution that’s minimally disruptive. The team of experts, here at movable Partitions can install the internal sliding doors within 1 day, allowing you to divide space effectively.
Our folding partition walls are suitable for any educational buildings like nurseries, schools and colleges, as well as, exhibition halls and hospitals. The sliding wall dividers are favored by teachers and architects alike because it provides them with greater convenience to maintain the attention span of students and to enhance the aesthetic nature of premises.
