Ebunge Movable Partition Walls MDF Finish Aluminum Frame Folding Acoustic Room Divider
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm Aluminum Frame | Warranty: | 3-5 Years |
| Finish: | Melamine, Fabric, Leather, MDF Bare Finish | Application: | Gallery,theater,office,banquet Hall,hotel Ect |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

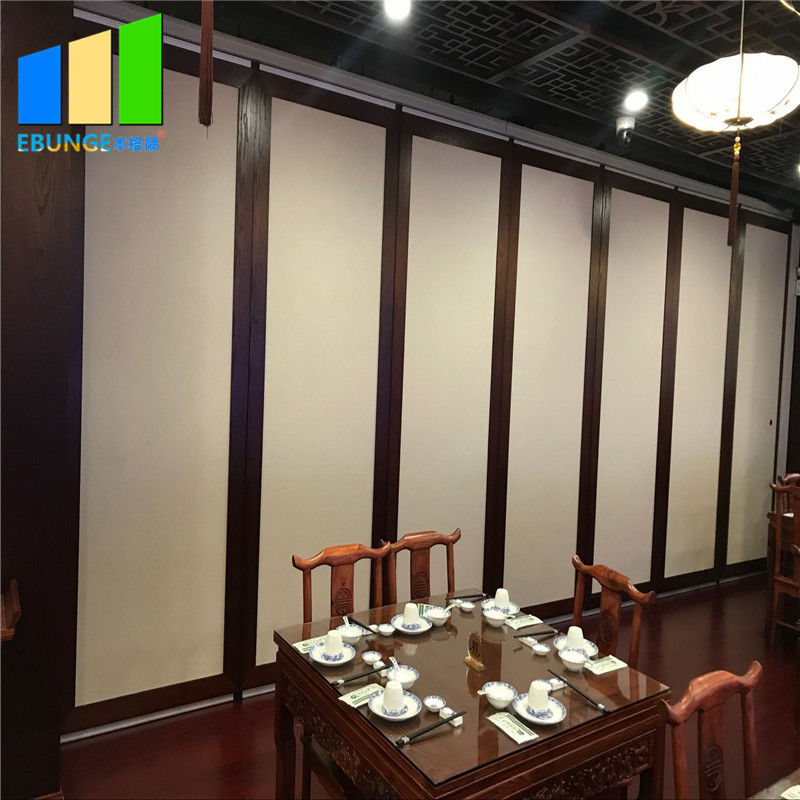

Ebunge movable partition walls MDF finish aluminum frame folding acoustic room divider
Movable partition walls are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize the use of space. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches,conference and function suites, exhibition centers,banks and restaurants.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Feature:
Individually operated, top hung panels, purpose made to suit any opening size upto 15 metres high.
Retractable top and bottom seals, able to deal with floor level differences up to 22.5 mm.
Mechanically operated by worm screw drive providing 2Kn of pressure for optimal acoustic performance.
No floor track.
Curved layouts, corner panels, junction panels, glazing cutouts, matching recess doors to special order.
Suitable for internal use only with a wide variety of features and finishes.
Advantage:
Movable partition walls allow flexible and efficient space utilization combined with excellent acoustic performance in areas such as offices, hotels, exhibition centres, studios and many other applications.
Panel surfaces from veneer to laminates, enabling us to work with your interior design needs.
Manufactured to meet the acoustic requirements for education installations to school, colleges and Universities are second nature.
Product designed for a quick and easy set up operation.
Each panel is hinged together which allows you to move all the panels in one swift effort. We incorporate an access pass door as standard to give you extra space flexibility.
With each project and opening being different this product is ideal when there is no structural support as this system can be floor supported.
This product has been designed with your economical budget in mind,it is the versatile, durable and cost effective solution.
The fabric panel finish is fully washable and contains antimicrobial to protect against mildew, mold, fungi and bacteria making it the ideal solution for medical centres and hospitals.
