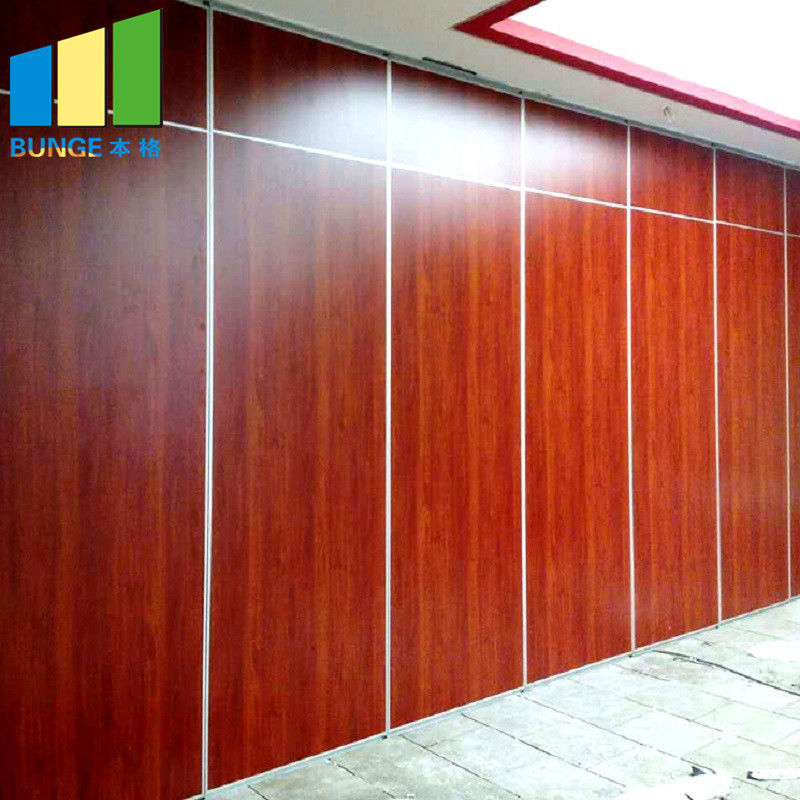

Dubai Foldable Wall Partition Soundproof Sliding Partitions For Conference Center

Product Description

Dubai Foldable Wall Partition Soundproof Sliding Partitions For Conference Center

Soundproof sliding partition features

Available in top-supported or floor-supported configurations, the center-hung, paired panels are perfect for straight-line openings and offer quick, easy setup.

Hinged together in groups of two, facilitating quick, easy setup.

No auxiliary storage track or support required.

Economical overhead support of straight-line track.

Smooth operation.

All of the measurement,surface and the colors and be customized.

Simple automatic bottom seals for efficient operation.

Suited for applications that require exceptional durability, acoustic control, and frequent use.

Panels are designed to be stored at either or both ends of an opening.

Frequently used to divide classrooms, meeting rooms, or office spaces.

Soundproof sliding partition details

1. Horizontal Seals

The principle of double skin construction on soundproof sliding partition system is applied consistently in the seal area in order to ensure maximum sound insulation. A spindle mechanism presses extendable, spring loaded, double seals against the floor and the ceiling track. Any irregularities in the flooring are offset by spring-loaded double chamber seals. The contact force of the sealing strips does not place excessive strain on screed floors, but does ensure that the flexible system is sufficiently stable to prevent the panels moving, even in the event of an attempted forced entry.

2. Corner Seals

Flexible resolves the technical issue of corner seals with specially designed, corner pieces that also reinforce the stability and done insulation properties of movable and operable partition system.

3. Magnetic Strip

The individual panels are centered via the magnetic strips to guarantee sound positive locking and sealing.

4. Operating Handle

In manual systems, the element sealing strips are operated using a crank. The crank has as a captive bayonet fitting to prevent it from being pulled off. The bayonet arrangement is easy to disengage and prevents crank slip page on movable and operable partition system.

5. Frames

The soundproof sliding partitions frame is made by torsion hollow-chamber aluminum alloy and sectional by steel tubing. Therefore, Transverse forces will not cause any deformation for the frame. Combined with the panel mounted in acoustically free suspension, flexible elements are able to offer both exceptional strength and outstanding sound insulation for movable and operable partition system.

6. Roller Assemblies

The dampening track roller assemblies prevent the transmission of impact forces and operating noise, to protect the element, rail and carrier on movable and operable partition system.

Technical information
