Aluminium Frame Sliding Movable Decorative Mesh Louvered Demountable Partition Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 80mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | 80 -100 $US |
| Packaging Details: | Carton packing ,MDF batten all around the corner |
| Delivery Time: | 30 day |
| Payment Terms: | MoneyGram, Western Union, T/T |
| Supply Ability: | 5000 square meter |
|
Detail Information |
|||
| Product Name: | Partition Wall | Function: | Sliding Folding Partition Wall |
|---|---|---|---|
| Service: | ODM OEM | Thickness: | 65 Mm |
| Finish: | Melamine | ||
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

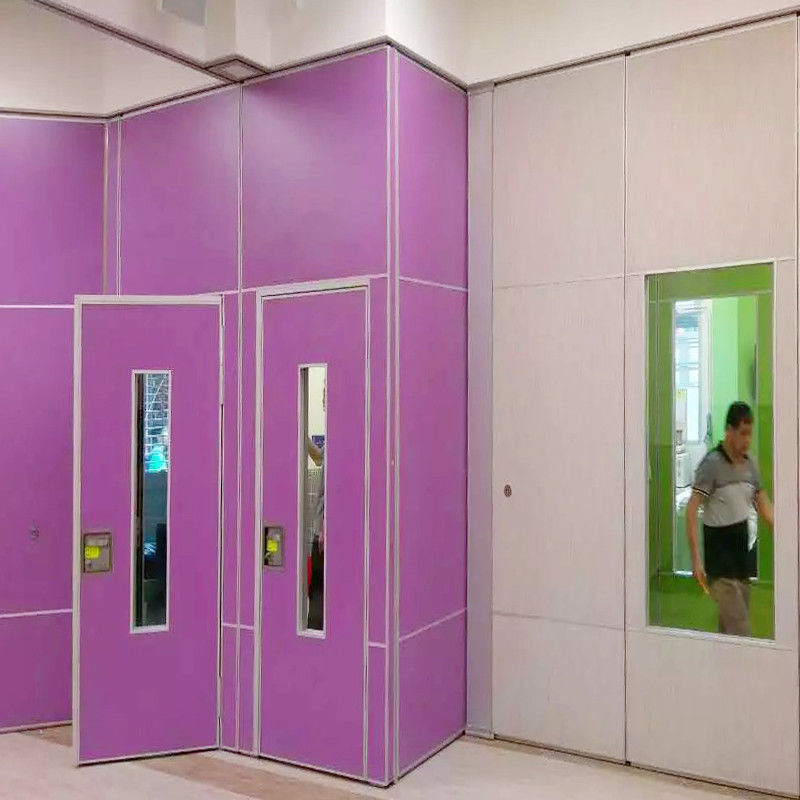

Aluminium frame Sliding movable design decorative mesh louvered demountable partition wall
Specification
1) movable wall interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2 movable wall to ensure additional friction connection, shall be integrated with magnetic strip.
3) Movable room partition is easy element adjustment after installation.
4) Folding room partition movable wall track system shall be Extruded aluminium, maintenance free with heavy -duty ball bearing steel rollers.
5) Folding room partition movable wall surface panel shall be of 9 mm or 12 mm MDF with acoustic treatment to the required level.
Technical Details
|
Series
|
BG65
|
BG80 / BG85
|
BG100 & BG125
|
|
Panel suspension
|
Top hung only
|
Top hung only
|
Top hung only
|
|
Track system
|
Single or twin point
|
Single or twin point
|
Single or twin point
|
|
Panel thickness
|
65mm
|
80mm / 85mm
|
100mm
|
|
Panel height
|
Up to 4000mm
|
Up to 6000mm
|
Up to 18000mm
|
|
Max height
|
4000mm
|
6000mm
|
18000mm
|
|
Panel width
|
600-1230mm
|
600-1230mm
|
600-1230mm
|
|
Frame construction
|
Aluminum frame
|
Aluminum frame
|
Aluminum frame
|
|
Face material
|
9mm
|
9mm / 12mm
|
12mm
|
|
Locking
|
Optional lock to pass doors
|
Optional lock to pass doors
|
Optional lock to pass doors
|
|
Pass doors
|
Single open in panel or
double open in two panel |
Single open in panel or double open in two panel
|
Single open in panel or double
open in two panel
|
|
Finish Material
|
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board,
Fireproof board, Wall paper, Vinyl, Painting,etc. (Customized)
|
||
1. Can I customize my own building material product for my house from your company?
--Yes, you can.You just need supply your project drawing or purchasing list for us,we have a professional team to
give you the best design as your budget and requirements. If required, we can also go to your project site for
measurements and installation instructions.
2. Can you provide free sample?
--Yes, we can provide the samples of product. All the sample cost will be refunded after you place the order.
About us
1 , Who We Are---
More than 10 years of experience in building industry.
2 , What Can We Do---
Providing high quality products in a wide variety of styles and sides for all custom,
Window&Door, Partition Wall at competitive price. Also we can provide the professional
solution for your reference based on your project request.
3 , Who Do We Work With---
We mainly worked with the developer, contractor, home owner, designer and the architect.
Worked for New Building Residential, Commercial and individual Houses or house renovate.
anyone are interested in products
4 , Which Countries Do We Worked In---
Till now we have done projects in Singapore, Malaysia, Philippines Australia, America,
Canada, UK, Sweden, Norway, Maldives, Mauritius, British Virgin, Haiti, Thailand, Ghana, Kenya etc.
5, Why Choose Us---
(1) Customized as your requirement;
(2) Free design,we could offer you solutions as your budget;
(3) One stop service,besides design,production,we could also arrange shipping for you;
(4) We have professional team can go to your jobsite to make measurement work and installation guide work.
Packing
FAQ
1. Do you accept customization?
Yes, we can support our clients with OEM, so that it can be easier to open the local market and build a
long-term partnership between us.
2. Can you offer sample?
Yes, we can offer standard samples for free, and customization is available.
3. How long is the lead time?
Normally 10-25 days upon receiving the deposit, base on the quantity 1,500 SQM.
4. Can you assist for installation?
Yes, we can arrange to assist in installation if needed.
5. Do you have CE certificate?
Yes, we do. We have shipped many goods to European countries.
6. How to pay ?
You can pay by western union or T/T.Cash will be ok if we do business face to face.
