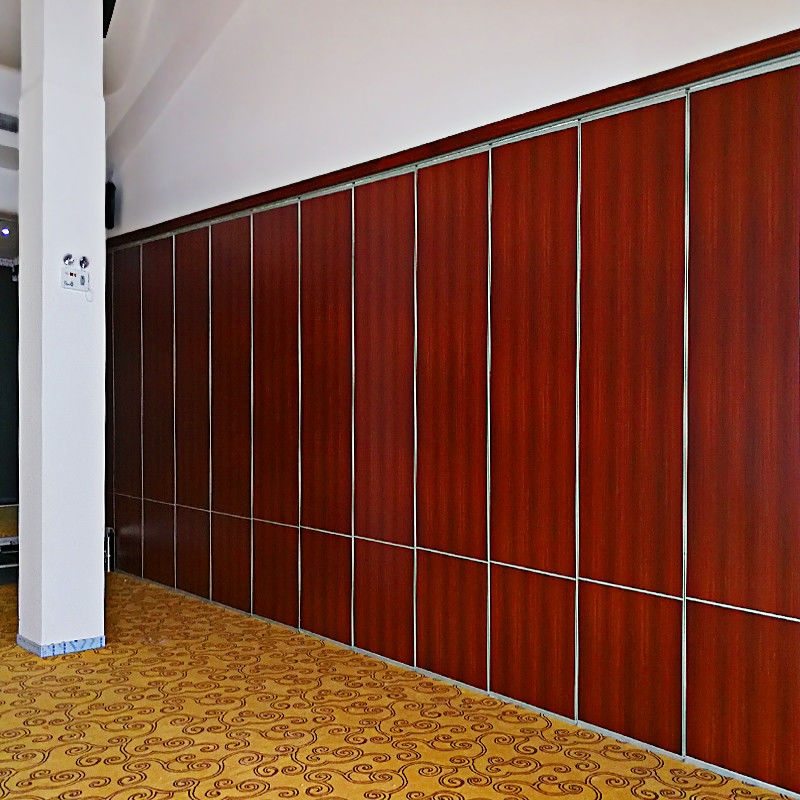

Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel

Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel

Product Details:

Place of Origin: China
Brand Name: EBUNGE
Certification: ISO9001
Model Number: 80mm movable partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: 80 -100 $US
Packaging Details: Carton packing ,MDF batten all around the corner
Delivery Time: 30 day
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: 5000 square meter
Get Best Price Contact Now

Detail Information

Product Name: Partition Wall Thickness: 65 Mm
Advantage: Soundproof Function: Sliding Folding Partition Wall
Service: ODM OEM Package: Standard Exported Package
High Light:

sound absorbing panels

,

acoustic wall panels

Product Description

Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel

Polyester Construction material hanging sysistem sound proof curtain partition walls for hotel



Specification



1) movable wall interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.



2 movable wall to ensure additional friction connection, shall be integrated with magnetic strip.



3) Movable room partition is easy element adjustment after installation.



4) Folding room partition movable wall track system shall be Extruded aluminium, maintenance free with heavy -duty ball bearing steel rollers.



5) Folding room partition movable wall surface panel shall be of 9 mm or 12 mm MDF with acoustic treatment to the required level.

Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel 0



Technical Details



Series
BG65
BG80 / BG85
BG100 & BG125
Panel suspension
Top hung only
Top hung only
Top hung only
Track system
Single or twin point
Single or twin point
Single or twin point
Panel thickness
65mm
80mm / 85mm
100mm
Panel height
Up to 4000mm
Up to 6000mm
Up to 18000mm
Max height
4000mm
6000mm
18000mm
Panel width
600-1230mm
600-1230mm
600-1230mm
Frame construction
Aluminum frame
Aluminum frame
Aluminum frame
Face material
9mm
9mm / 12mm
12mm
Locking
Optional lock to pass doors
Optional lock to pass doors
Optional lock to pass doors
Pass doors
Single open in panel or
double open in two panel
Single open in panel or double open in two panel
Single open in panel or double
open in two panel
Finish Material
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board,
Fireproof board, Wall paper, Vinyl, Painting,etc. (Customized)

Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel 1

1. Can I customize my own building material product for my house from your company?

--Yes, you can.You just need supply your project drawing or purchasing list for us,we have a professional team to

give you the best design as your budget and requirements. If required, we can also go to your project site for

measurements and installation instructions.

2. Can you provide free sample?

--Yes, we can provide the samples of product. All the sample cost will be refunded after you place the order.



Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel 2

About us



1 , Who We Are---

More than 10 years of experience in building industry.

2 , What Can We Do---
Providing high quality products in a wide variety of styles and sides for all custom,

Window&Door, Partition Wall at competitive price. Also we can provide the professional

solution for your reference based on your project request.

3 , Who Do We Work With---
We mainly worked with the developer, contractor, home owner, designer and the architect.

Worked for New Building Residential, Commercial and individual Houses or house renovate.

anyone are interested in products

4 , Which Countries Do We Worked In---
Till now we have done projects in Singapore, Malaysia, Philippines Australia, America,

Canada, UK, Sweden, Norway, Maldives, Mauritius, British Virgin, Haiti, Thailand, Ghana, Kenya etc.

5, Why Choose Us---
(1) Customized as your requirement;
(2) Free design,we could offer you solutions as your budget;
(3) One stop service,besides design,production,we could also arrange shipping for you;
(4) We have professional team can go to your jobsite to make measurement work and installation guide work.

Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel 3



Packing

Polyester Construction Material Hanging System Sound Proof Curtain Partition Walls For Hotel 4





Action Now

Company name:Guangdong Bunge Building Material Industrial Co., Ltd

Country region:Guangdong China

Address: 802 Longxi Complex Building, 490 Longxi Avenue, Liwan District, Guangzhou

Tel +86-20-81718567

Fax +86-20-81717767

Contact Parker Liang

Mobile +86 15989199233

Whatsapp /wechat/+86 15989199233

Whatsapp /wechat/+86 15989199233

Email bunge04@gzbunge.com

Website: www.acoustic-partition.com

Industry: Factory

Founded:2009

Notic: Movable partition/operable wall must follow the site measurement to fabricate.the color and the finishing can customizable
