Product Details:

Place of Origin: China
Brand Name: EBUNGE
Certification: ISO9001
Model Number: 80 mm movable partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: 80 -100 US$
Packaging Details: Carton packing ,MDF batten all around the corner
Delivery Time: 30 day
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: 5000 square meter
Get Best Price Contact Now

Detail Information

Product Name: Acoustic Partition Material: MDF
Place Of Origin: Guangdong, China Usage: Exhibition Room
Height: 6000MM MOQ: NO MOQ
High Light:

acoustic operable partitions

,

movable acoustic partition walls

Product Description

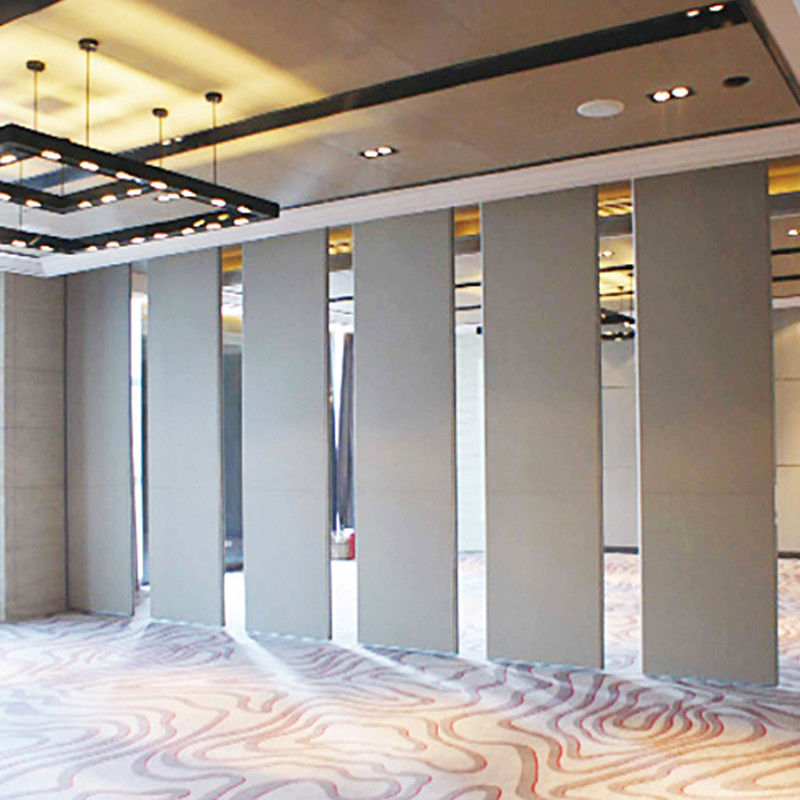

Acoustic easy operable color customized 80 style Aluminium frame Chinese Foshan Partition wall



Specification



1) Acoustic easy operable wall interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.



2 Acoustic easy operable wall to ensure additional friction connection, shall be integrated with magnetic strip.



3) Acoustic easy operable room partition is easy element adjustment after installation.



4) Acoustic easy operable slid room partition movable wall track system shall be Extruded aluminium, maintenance free with heavy -duty ball bearing steel rollers.



5) Acoustic easy operableslid room partition movable wall surface panel shall be of 9 mm or 12 mm MDF with acoustic treatment to the required level.



Acoustic Easy Operable Color Customized 80 Style Aluminium Frame Chinese Foshan Partition Wall 0



Technical data of Type 80 movable partition :

Model Weight
(kg/m)
Fire Rating(min) STC Performance Specification Carrier
Thickness
(mm)
Width(mm) Height(mm) Top Seal(mm)/ Pressure(kg) Bottom Seal(mm)/ Pressure(kg) LCP stretch (mm)
EG80-40 30 60 40db 80 680-1212 2000-5500 22.5/35 22.5/35 140 60#
80# 100#
EG80-45 38 60 45db 80 680-1212 2000-5500 22.5/35 22.5/35 140
EG80-48 47 60 48db 80 680-1212 2000-5500 22.5/35 22.5/35 140



Features:
Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Extensive range of surface finishes available



Acoustic Easy Operable Color Customized 80 Style Aluminium Frame Chinese Foshan Partition Wall 1



SCOPE OF APPLICATION

1.Studios, recording rooms, listening rooms, rehearsal rooms and more professionally inter space timbre projects.
2.Theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.Air-port, railways, bus-stops, manufactures, workshops and more noise reduction projects.


Acoustic Easy Operable Color Customized 80 Style Aluminium Frame Chinese Foshan Partition Wall 2

1 , Who We Are---

More than 10 years of experience in building industry.

2 , What Can We Do---
Providing high quality products in a wide variety of styles and sides for all custom, Window&Door, Partition Wall at competitive price. Also we can provide the professional solution for your reference based on your project request.

3 , Who Do We Work With---
We mainly worked with the developer, contractor, home owner, designer and the architect. Worked for New Building Residential, Commercial and individual Houses or house renovate.anyone are interested in products

4 , Which Countries Do We Worked In---
Till now we have done projects in Singapore, Malaysia, Philippines Australia, America, Canada, UK, Sweden, Norway, Maldives, Mauritius, British Virgin, Haiti, Thailand, Ghana, Kenya etc.

5, Why Choose Us---
(1) Customized as your requirement;
(2) Free design,we could offer you solutions as your budget;
(3) One stop service,besides design,production,we could also arrange shipping for you;
(4) We have professional team can go to your jobsite to make measurement work and installation guide work.

Acoustic Easy Operable Color Customized 80 Style Aluminium Frame Chinese Foshan Partition Wall 3



FAQ

Q: What is the price for movable wall?

A: Our movable wall system is customized and the cost is caculated by total square meter.Different types

have different prices.So we need you provide to us detailed dimensions like height by width,finish options,

parking options to get a quote.We also need your layout drawing if possible.

Q: Is the movable partition wall acoustic (soundproof)?

A: Yes, our movable wall ystem is soundproof.We have different acoustic materials infill to reach different

acoustic rating. And we are the only one factory who has passed ASTM acoustic test in HongKong and get

acoustic Test report.For type 65 series we can reach 45db,for type 80 we can reach 48db,for type 100 wecan

reach 53db.

Q: What finish options you have for partition?

A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own

decoration,We can also supply melamine laminate,high pressure laminate, wood veneer,fabric,PU and

soon.It dependson your requirement.

Q: Are you a manufacturer or trading company?

A: We are the biggest movable wall partition manufacturer in Foshan city.We have worked for this business

over 20 years. Our factory is located in Nanhai district,Foshan city.You are warm welcome to visit us!
