Ballroom Hanging Foldable Partition Wall Acoustic Room Dividers For Restaurant
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm acoustic room divider |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-98 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Finish: | Melamine |
|---|---|---|---|
| Application: | Restaurant Partition Walls | Tracks: | Aluminum Alloy |
| Style: | Floor To Ceiling | Color: | Color Chart Optional |
| High Light: | sound proof room divider,banquet hall room dividers |
||
Product Description

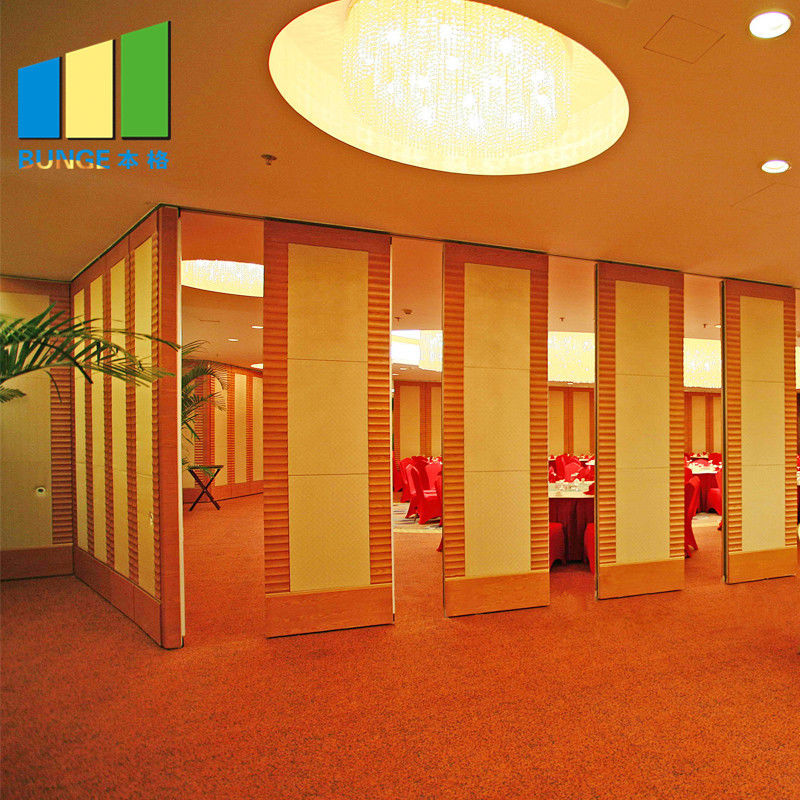

Ballroom Hanging Foldable Partition Wall Acoustic Room Dividers for Restaurant
Do you know this acoustic room dividers system?
1. Soundproofing.
Acoustic room divider is a sealing system, there are some specific sections(“M”&“W”sections) between the panels. The pressure seals are extended and retracted by a single 180°turn of a removable operating handle. Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals. So there is no gap between the panels. In addition, inside is full of sound proof cottons. So it can achieve an excellent sound proofing performance.
2. Easy operation.
The acoustic room divider is movable and sliding. When you use them, they can help you divide a big space into 2 or more smaller rooms. And when you do not use them, they can be park to the parking zone. 1 person can finish the whole operation.
3. Application.
Nowadays the acoustic room dividers are more and more popular for the clients. They are widely used in hotel banquet hall, office conference hall, meeting room, classroom, function hall, ballroom, gym, exhibition hall and many other public places.
4. Size Customized.
Acoustic room divider is a whole customized product. We can produce the acoustic room dividers based on the different demands of different client, including the size, the colors and the finishes. The normal thickness is 65, 85 and 100 mm thick, the maximum thickness is 130 mm. The width is available between 800-1220 mm and the maximum height can up to 17 meters.
5. Different Surfaces Available
There are several surfaces for client to choose. Such as:
MDF or Plywood(this is a raw finish, the client can paint or put the wallpaper on the panels).
Melamine or laminate(this is the most popular surface for clients, because it is most economical, there are more than 60 colors to choose and very easy to maintain).
Fabric or Leather(soft cover and hard cover also available, of course it will be sound proofing than other surfaces).
Glass or mirror(very popular in dancing room and music school).
Acoustic panels(such as the polyester acoustic panels, wooden grooved acoustic panels and wooden perforated acoustic panels).
Landscape painting PU leather(the client can choose the most favorite picture or drawing, then we can print and put it on the panels as surfaces.)
Technical Information
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Acoustic room dividers advantages
No floor rails: Top hung system without the need for a floor track.
Stable and safe: Stable and reliable after the partition, easy to swing.
Sound insulation: Sound insulation effect, the maximum sound insulation up to 570B, we can offer various levels of sound reduction.
Efficient fire: The use of highly efficient fire prevention materials, fire performance is good.
Retractable and flexible: Retractable top and bottom seals ensure effortless movement of panels, numerous panel stacking options for complete flexibility,only a person can complete the whole process of acoustic room dividers.
It takes up less space. Will not effect on the original building.
Easy to use (can be opened and closed as needed).
Not take much time.
