Collapsible Soundproof Moveable Wall Flexible Moving Folding Door Partition For Wedding Hall
Product Details:
Place of Origin: | Guangzhou, China |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | 65 mm folding door partition |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ, small quantity welcomed |
---|---|
Price: | US $78-98 per square meter |
Packaging Details: | Paper carton, outside with wooden boxes |
Delivery Time: | 12-20 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 20000 square meters per month |
Detail Information |
|||
Product Name: | Folding Door Partition | Finish: | Melamine |
---|---|---|---|
Application: | Wedding Hall Partition | Panel Height: | 25 KG Per Square Meter |
Style: | Folding And Sliding | Height: | 2 - 4 Meters |
High Light: | acoustic folding partition,folding room partitions |
Product Description

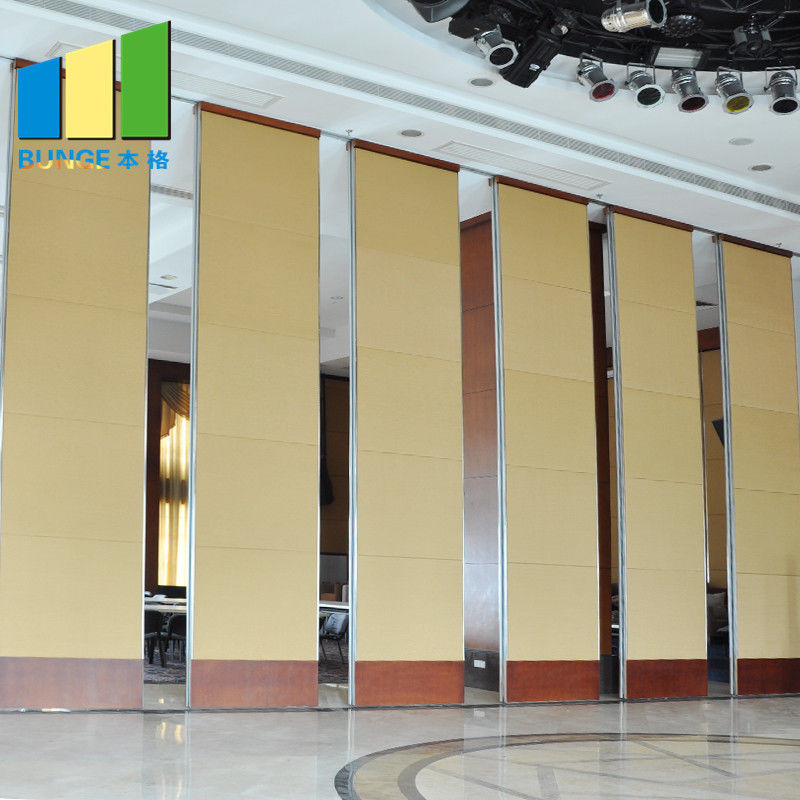

Collapsible Soundproof Moveable Wall Flexible Moving Folding Door Partition for Wedding Hall
Folding door partition for wedding hall details
Folding door partition for wedding hall are characterized by modular elements having high acoustic insulation up to an index of 53 dB certified by an accredited laboratory. They are easily stored and slide quietly along guide rails fixed only into the ceiling. Designed to harmonize with the existing architectural style they can reach any length and up to 12 m. in height with covering in a choice of materials and finish. High-level technology guarantees quality and reliability while offering the ideal solution for a rapid, physical and acoustic division of areas destined to host large events, meetings, workshops, video conferences and training sessions.
The vertical profiles, studied for for the edging of the elements, are coupled with male/female system and the finishing panels are completely enclosed within the aluminium frame. Each element has two sliding rubber blocks, linked to mobile seals with soft gaskets: through a pressure on them, the locking mechanism start to work and allows the locking in positions of the elements.
The last element of the folding door partition for wedding hall has one more moving telescopic mechanism, with a side sliding. This mechanism is manually operated by a control placed on a side of the element itself.
Technical Information
TYPE | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | ||
Track system | Single or twin point | ||
Panel thickness | 65 mm | 85 mm | 100 mm |
Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
Max height | 4000mm | 6000mm | 18000mm |
Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
Frame | Aluminum | Aluminum | Aluminum |
Surface material | 9mm | 9mm | 12mm |
Fire safety | Optional class I | Optional class I | Optional class I |
Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
Operation of seals | Manual, with supplied operating handle | ||
Locking | Optional lock to passing doors | ||
Passing doors | Single open in one panel or double open in two panel | ||
Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Panel Suspension | Top hanging system without the need for a floor track. |
Panel Width | Each panel 600mm-1200mm. |
Track | Aluminum Or Steel Track |
Roller on panel | Single or Double Roller |
Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
Module | 700mm - 1200mm maximum. |
Panel stacking | Numerous panel stacking options for complete flexibility. |
Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Folding door partition application
Installation of one of these partitions will divide the domestic environment, physically or acoustically, into two or more independent spaces. For example, kitchen/living room, living room/study, living/sleeping areas, playroom/bedroom, living room/gym, and double/single rooms.These systems are made up of independent elements having a convenient minimum thickness of 12 mm or 9 mm. They slide and position themselves from an overhead ceiling-mounted aluminium guide.No guide or bottom rollers are necessary. There are no limits to possible panel surface which include melamine, laminates, vinyl, fabric, wood.
In this realization, the studio/room environment is separated from the living room by the movable partition walls covered with decorated fabric; an original solution combining functionality and requirement in the choice of materials and colors.
