Aluminium Sliding Partition Walls Interior Decorative MDF Soundproof Wall Partition
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm movable partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-101 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm | Function: | Space Divide,sound Proof |
| Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

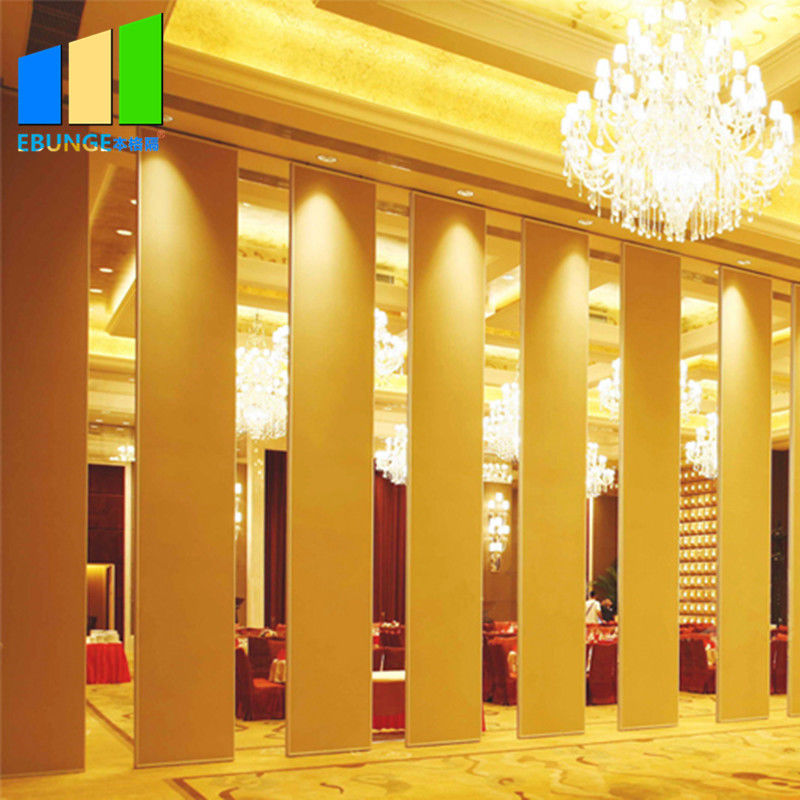

Aluminium sliding partition walls interior decorative mdf soundproof wall partition
Mobile partition brings great convenience to the work of people, for example, you can fold it at one side, make two spaces into a bigger one.When you need to have a small meeting, you can put the partition panels together, then it becomes many small rooms. Very convenient. The movable partition wall is hanging system without floor track, can also achieve the same fixed effect as the solid wall.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Partition type:
1) Model 65mm movable wall are made of aluminum alloy frames and it’s thickness is 65mm. The aluminum is 6063-T6. Oxidation, electrophoresis and other processing methods can be adopted according to customers.
Model 65mm mobile partition belongs to the light partition, its operation easy and flexible. Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity.
2) Model 85mm mobile partition belongs to the best cost-effective partition, moderate weight make the operation convenient and flexible.Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity.
3) Model 100mm movable partition is high sound insulation,more heavy, sliding and operation stable. Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity. It’s the best choice of sound insulation requirements.
4) Ultra high type movable partition all use double layer aluminum alloy frame around the ultra high type screen, the label is 6063 T6, the thickness is 120mm, may according to the customer request USES oxidation, electrophoresis and so on each kind of processing way.
Super high screen adopts heavy rail, rolling wheel sliding times up to 100,000, with partition industry the most sophisticated technology.
5) Frame-type glass partition suitable for the height of 2m-5m, the maximum bearing of the rail 450㎏/m, screen does not have sound insulation function.
6) Frameless glass partition suitable height 1m-3m, the maximum bearing of the rail 450㎏/m, screen does not have sound insulation function.
Widely used in various dance training room, senior office.
The BUNGE movable partition wall has the following characteristics:
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2. Stable and safe: stable and reliable after partitioning, not easy to swing;
3. Compartment environmental protection: the effect of the compartment is good, the maximum sound insulation coefficient can reach 50db;
4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the hall is divided into small spaces to reduce air conditioning power consumption;
5. Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof performance;
6. Beautiful and generous: the surface is arbitrarily decorated, and can be combined with the interior decoration effect;
7. Retractable and flexible: the partition is freely retractable and flexible, and one person can complete the whole process of partitioning;
8. Convenient collection: When closing the board, the partition can be hidden in the special storage cabinet, which does not affect the overall appearance;
9. Wide range of applications: products used in hotels, hotels, restaurants, conference halls, exhibition halls, high clean factories and offices.
