Room Aluminum Office Movable Sound Proof Partitions Malaysia For Restaurant
Product Details:
Place of Origin: | Guangzhou,China |
Brand Name: | EBUNGE |
Model Number: | Series 65 mm movable partitions |
Payment & Shipping Terms:
Minimum Order Quantity: | 10pcs |
---|---|
Price: | 60-101 USD per square meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 square meters per month |
Detail Information |
|||
Product Name: | Acoustic Room Dividers | Material: | Aluminium Frame And Mdf Board |
---|---|---|---|
Height: | Less Then 4 M | Width: | 500-1200 Mm |
Thickness: | 65mm | Function: | Space Divide,sound Proof |
Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
High Light: | sounproof folding partition,movable soundproof partition |
Product Description

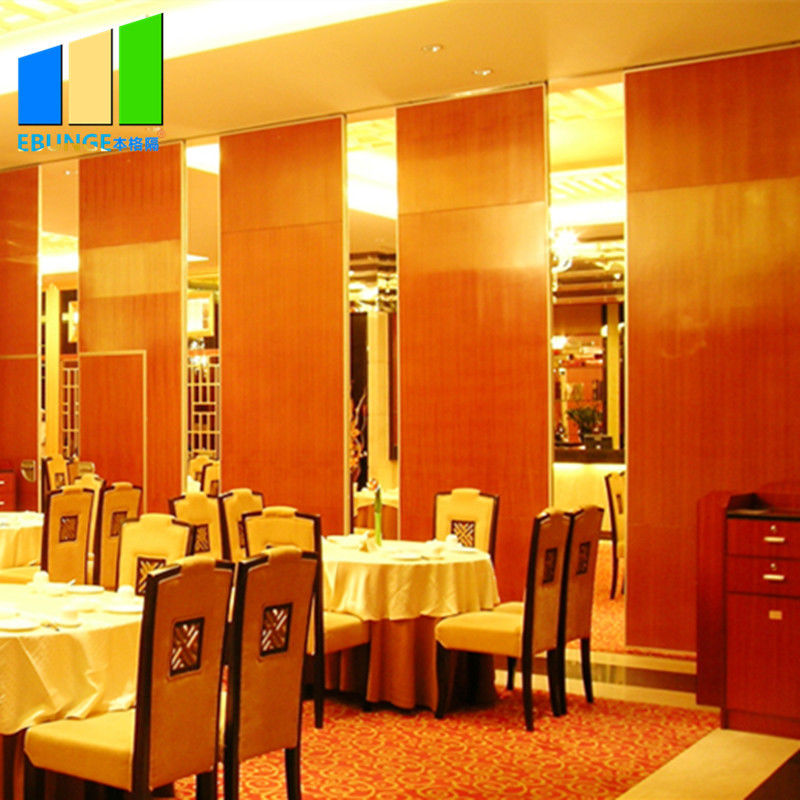

Room aluminum office movable sound proof partitions malaysia for restaurant
Folding partition are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize the use of space. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches,conference and function suites, exhibition centers,banks and restaurants.
Technical parameters:
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 80mm / 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
FAQ
Q: What is the price for movable wall?
A: Our movable wall system is customized and the cost is calculated by total square meter.Different types have different prices.So we need you provide us detailed dimensions like height and width,finish options,parking options to get a quote.We also need your layout drawing if possible.
Q: Is the movable partition wall acoustic (soundproof)?
A: Yes, our movable wall system is soundproof.We have different acoustic materials infill to reach different acoustic rating.
Q: What finish options you have for partition?
A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own decoration,We can also supply melamine laminate, wood veneer,fabric,PU leather and soon.It depends on your requirement.
Q: Are you a manufacturer or trading company?
A: We are the biggest movable wall partition manufacturer in Guangzhou city.We have worked for this business over 10 years. Our factory is located in Liwan district,Guangzhou city, China.You are warm welcome to visit us!
Q: How to install the partition? Will it difficult to be done?
A: It is not difficult to install our partitions.Our partitions are top supported system without any floor track.So top
structure will be very important.We have very detailed drawings and videos showing how to install,so your people just need to follow them step by step.
Q: Can you send engineer to install? What will the cost be?
A: Sure.We will send our engineer to help installing at site.He will instruct your workers to do the job but won't do the installation by himself.
Q: Where is your office? Do you have office in overseas?
A: So far we don't have office in overseas,our office is located in Guangzhou city,China
Q: Are your products guaranteed?
A: Yes,all of our products carry3-5 years guaranteed.
