Aluminum Frame Sliding Folding Door Wooden Sound Proof Partition Movable Wall System
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sound proof partition movable walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partition Movable Wall | Application: | Banquet Room Partition |
|---|---|---|---|
| Size: | Partition Walls Customized | Thickness: | 65 Mm(2 9/16 Inch) |
| Weight: | 25 Kg/m² | Advantages: | Sound Proofing |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description

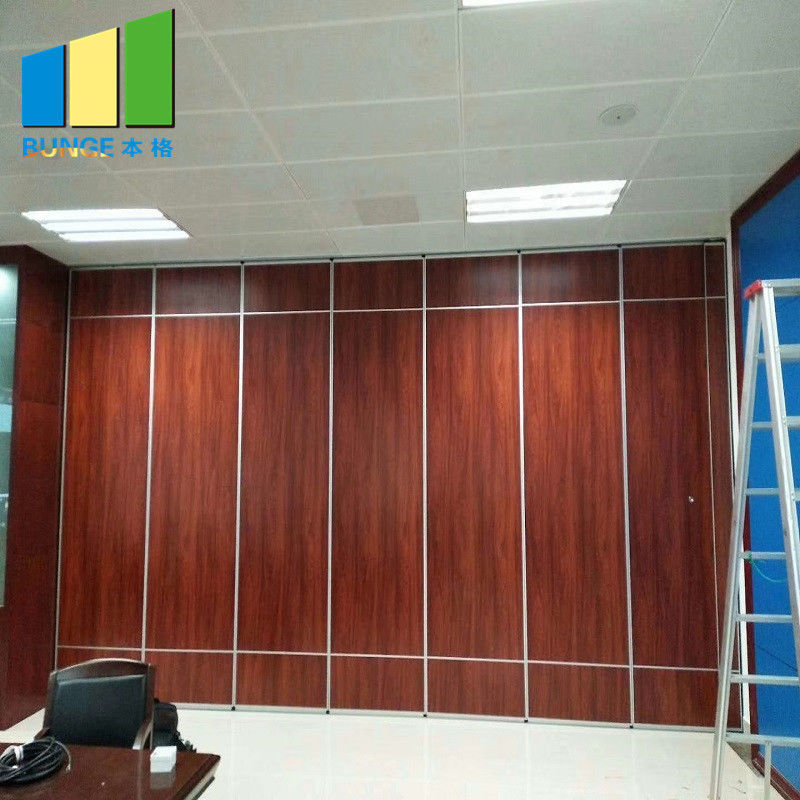

Aluminum Frame Sliding Folding Door Wooden Sound Proof Partition Movable Wall System
Sound proof partition movable wall details
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Combines elegance with robust construction .
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Sealed for life roller assemblies provide smooth and silent movement.
The system offers various levels of sound reduction.
Extensive range of surface finishes available.
Acoustics
The sound proof partitions movable wall system offers various levels of sound reduction starting at 30dB through to 54 dB. All of these levels have certification awarded by reputable independent acousticians. They are not based "in-house" test. Copies of certification available on request.
Fire Performance
Class "0" or "1" Spread of Flame Panels are available to your requirements.
This type product has 1 hour and 1/2 hour fire assessments.
| Model | BG-65 series | BG-85 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Sound proof partitions movable wall details
We are the sound proof partitions movable wall supplier from China,we are the 100％ real manufacturer,we have our own factory and showroom.Our factory located in Guangzhou,China.Very welcome to visit us.
About the sound proof partition movable wall, they are sound proofing,folding and movable.When you use them,they can be divided a big space into many small rooms,and when you do not use them,they can be parked at one site.
The sound proof partition movable walls are a hanging system,just have the ceiling rails,but has no rails on the floor.So the sliding partition walls will not damage your floor or carpet.Please do not worry,they are easy to install.Before we deliver the partitions,we will mark them one by one,and we will send you the installation drawing.
As for the surfaces,there are 4 kinds of surfaces for you to choose:
Plywood(you can decorate the surfaces at your site,such as painting,wallpapersand so on).
Melamine(the most welcomed surface,there are many colors to choose and very easy to clean).
Fabric and leather surfaces(can be a soft cover,will be more sound proofing).
