Conference Hall Removable Acoustic Wall Sliding Folding Partition For Banquet Room
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sliding folding partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Folding Partition | Application: | Banquet Room Partition |
|---|---|---|---|
| Size: | Partition Walls Customized | Thickness: | 65 Mm(2 9/16 Inch) |
| Frame Material: | Aluminum Alloy | Advantages: | Sound Proofing |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description

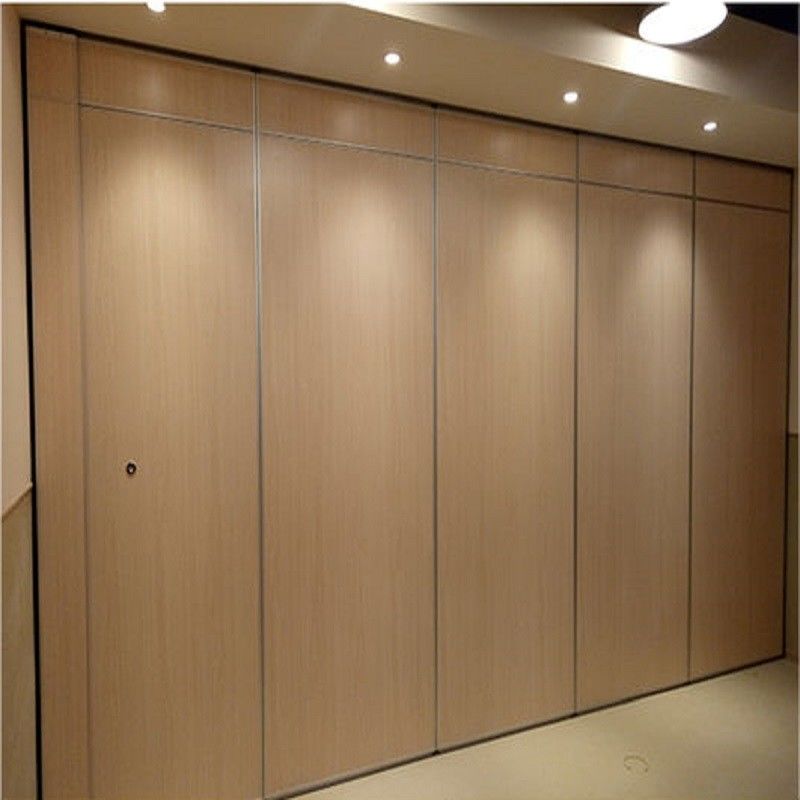

Conference Hall Removable Acoustic Wall Sliding Folding Partition for Banquet Room
Sliding folding partitions details
1) When moving a sliding folding partition wall panels, there is a 20-25mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
2) Once a sliding folding partition walls panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
3) The pressure seals are extend and retracted by a single 180 degree turn of removable operating handle.
4) Final Closure of the sliding folding partition wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
5) As you know, when we do not use the sliding folding partition walls, we can park them to the parking area. Actually there are many parking styles for the sliding folding partition walls, all of the clients can choose the suitable one and we can adjust based on their own project site. If you need some pocket doors to hide the panels, BUNGE Factory also can produce for you.
 |
|
|
Technical Information
| Model | BG-65 series | BG-85 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Sliding folding partition FAQ
1) Sliding folding partition walls interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2) To ensure additional friction connection, sliding folding partition wall panels shall be integrated with magnetic strip.
3) Sliding folding partition walls spring load retractable sound seal at the top and bottom element.
4) Face panel hung in sliding folding partition walls free suspension, for improved sound insulation, easy redecoration of surface panels. Edges shall be protected with Aluminium profiles.
5) Easy element adjustment after installation.
We Offer:
◆ A full professional design service.
◆ Survery and installation guide.
◆ Using top quality materials and components.
◆ A fully experienced work team.
◆ Maintenance contracts to ensure your valuable asset remains in full work order.
