Wooden Acoustic Room Dividers Restaurant Partitions Folding Interior Movable Walls
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm movable partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-101 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm | Function: | Space Divide,sound Proof |
| Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description

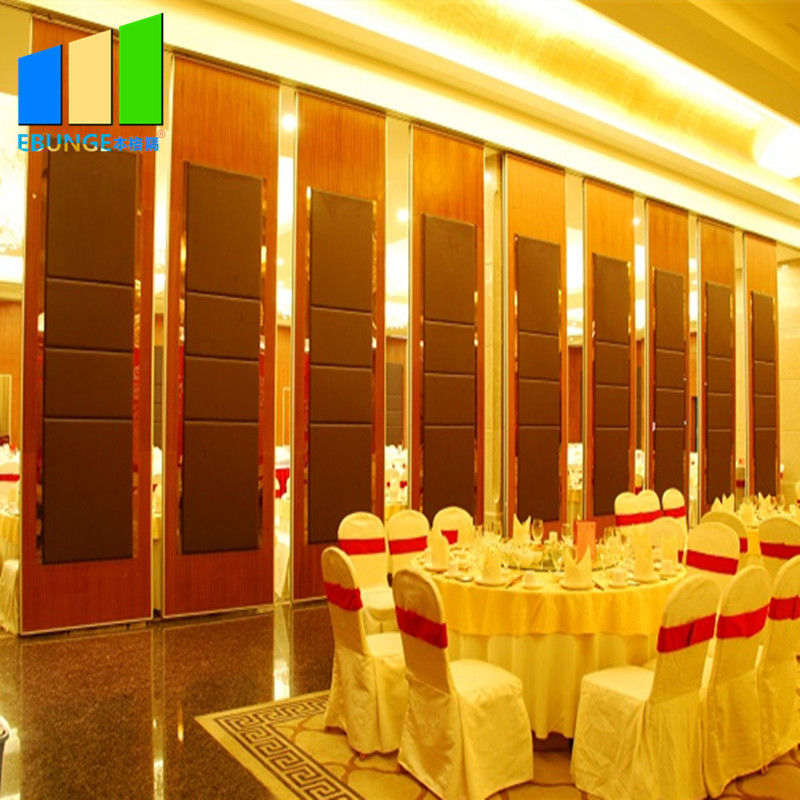

Wooden acoustic room dividers restaurant partitions folding interior movable walls
Description:
Folding partition wall can separate the space speedy and conveniently.There is top hung system without the need for a floor track.Conference room soundproof wall partition is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.Soundproof movable partition wall is hanging on the aluminum track, assembled with muti direction wheels.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Soundproof movable partition walls features:
1. Trackless suspension: there is no track on the floor, only the track is installed on the ceiling;
2. Stability and safety: stable and reliable after partition, not easy to swing;
3. Sound insulation and environmental protection: sound insulation effect is good, and the maximum sound insulation coefficient can reach 53dB;
4. Heat insulation and energy saving: excellent heat insulation performance, according to different occupancy rates, the large space is divided into small space to reduce the air conditioning power consumption;
5. Efficient fire prevention: adopt efficient fire prevention materials and have good fire protection performance;
6. Beautiful and generous: any decoration on the surface can be unified with the interior decoration effect;
7. Flexible: clapboard flexible, flexible, a person can complete the whole process of partition;
8. Easy to collect: when receiving the board, the clapboard can be hidden in the special storage cabinet, without affecting the overall appearance;
9. Widely used: it can be used in conference hall, exhibition hall, restaurant, high clean factory and office;
Operable partition wall type:
1)Model 65mm movable wall are made of aluminum alloy frames and it’s thickness is 65mm. The aluminum is 6063-T6. Oxidation, electrophoresis and other processing methods can be adopted according to customers.
Model 65mm mobile partition belongs to the light partition, its operation easy and flexible. Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity.
2)Model 85mm mobile partition belongs to the best cost-effective partition, moderate weight make the operation convenient and flexible.Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity.
3)Model 100mm movable partition is high sound insulation,more heavy, sliding and operation stable. Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation.Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place.Sliding stable and smooth making dimensional change shows diversity. It’s the best choice of sound insulation requirements.
