Demountable Operable Wall System Foldable Movable Acoustic Partition Wall For Hotel
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm demountable acoustic partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Demountable Acoustic Partitions | Application: | Hotel Partition Walls |
|---|---|---|---|
| Size: | Partition Walls Customized | Style: | Foldable |
| Pass Door: | Single Or Double | Service: | OEM ODM |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description

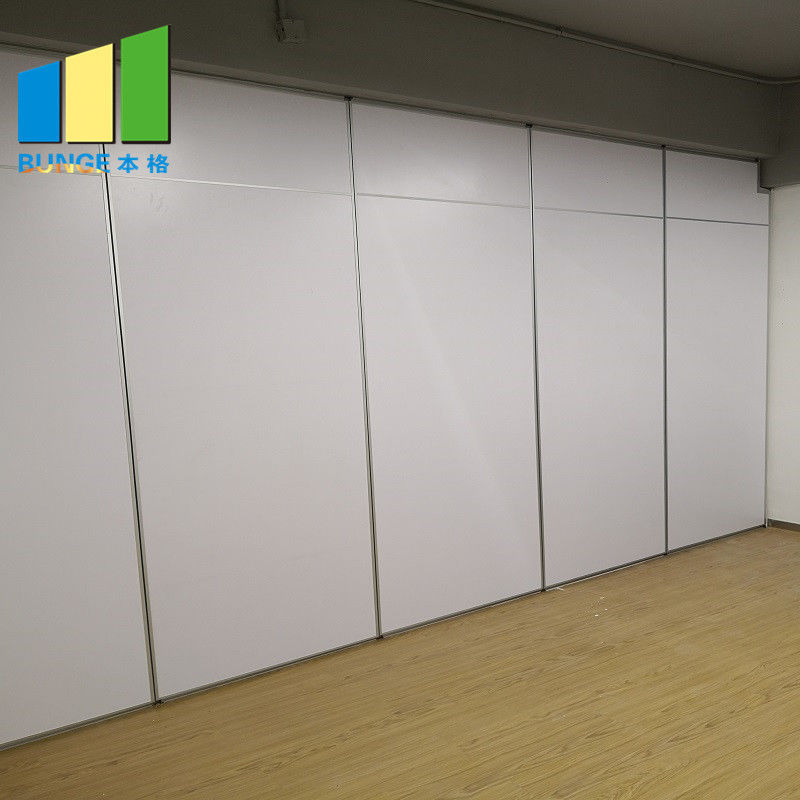

Demountable Operable Wall System Foldable Movable Acoustic Partition Walls for Hotel
Demountable acoustic partitions details
Demountable acoustic partition offers unique custom made Acoustic Movable Wall Partitions which facilitates in managing.Your space to its maximum capacity. Our acoustic room dividers system constitutes of panels.
Suspended individually from the rail fixed to the top of the roof. The demountable acoustic partition has retractable top and bottom seals which interlocks each panel to its position. If required, hinged pass doors shall be provided through the acoustic room dividers where access is required.
Type 65 demountable acoustic partition systems are made up of a series of individual partition panel with ceiling track which make it be able to slide along the track. These movable sliding partition walls on wheels are widely used in hotels, shops, exhibition centers, exhibition center, colleges, clubs, art centers, stadium, sports centers, offices, testing center, bowling centers, schools, conference center, golf clubs, etc.
The nominal thickness of demountable acoustic partition is 65 mm.
The demountable acoustic partitions panel frames are made of standard construction grade aluminum alloy.
Surface panels are available in 9 mm thick MDF board, particle board, gypsum board.
Different soundproof material infill and surface material decide the acoustic performance to meet different STC requirements.
Technical Information
| Model | BG-65 series | BG-80 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | 40-68kg/sqm. |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Demountable acoustic partitions features
demountable acoustic partition has top hung with no floor track.
Scissor-jack operating mechanism.
Available with virtually any surface finish.
Ideal for conference centres, hotels, offices & schools.
Angled, glazed, corner or junction panels for maximum flexibility.
Single or double point suspension for versatile stacking options.
Demountable acoustic partition panels with hinged pass door, single or double leaf inset pass door panels for access through.
