Sound Proof Movable Wooden Folding Sliding Partition Walls For Auditoriums / Ballroom
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm folding sliding partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Sliding Partitions | Application: | Ballroom Partition Walls |
|---|---|---|---|
| Size: | Partition Walls Customized | Style: | Folding And Sliding |
| Package: | Wooden Boxes | Service: | OEM ODM |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

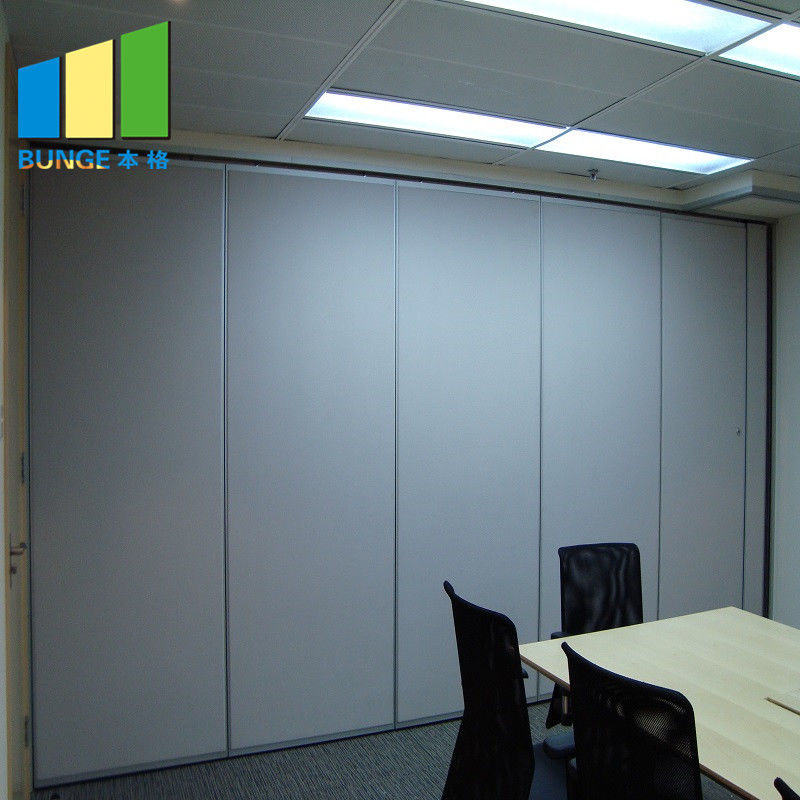

Ballroom Sound Proof Movable Wooden Folding Sliding Partition Wall For Auditoriums
Folding sliding partitions features
Folding sliding partition is also called movable acoustic partition wall. It can separate the space into several small spaces or turn several small spaces into big space according to your different need. Morever, it’s flexible sliding combination bring you a special experience.
1. Seven characters and functions:
(1) hang track on the ceiling, not the floor;
(2) heat insulation and fireproof
(3) stable and safe
(4) energy-efficientcy
(5) elegant appearance
(6) collection convenient
(7) widely used in different places
2. Usage:
Type 65 is suitable to use at 2m-4m height space.
Type 85 is suitable to use at 2m-6m height space.
Type 100 is suitable to use at 2m-8m height space.
3. Each panel load-bearing weight: 225kgs/ 450kgs/ 650kgs
4. Sound insulation coefficient:
Type 65 highest sound insulation coefficient can be reach is 36db.
Type 85 the highest sound insulation coefficient can be reach is 50db.
Type 100 the highest sound insulation coefficient can be reach is 53db.
| Technical Information | |||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000-8000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Different kinds of partitions
1.Stainless steel glass partition
Standard brushed stainless steel decorative frame with built-in metal keel, 10-12MM tempered safety glass, professional Tig welding and firmware fixed glass joint edge seam and around the glass plastic edge processing, in order to achieve earthquake safety requirements of the assembly quickly, concise and applicable The large office and office space environment demonstrates the simplicity and rationality of a modern office.
2. Plasterboard partition
The high partition of the office adopts the light steel keel as the basic skeleton, and the built-in soundproof rock wool is fixed with gypsum board on both sides with self-tapping screws, and the nail surface is brushed with anti-rust paint fiber-joint gypsum to caulking, affixed with kraft paper, putty leveling, sand silk grinding, brushing Finishes, smooth effect.
3. Aluminum-magnesium alloy partition
Aluminium-magnesium alloy profile assembly frame is built with 10-12MM single-layer toughened safety glass or other special craft glass, PVC environment-friendly special rubber strip closes, the frame is fixed with special firmware, and the structure is very stable. The whole construction is an assembly process without any environmental pollution And can be reused, office high partition of its optical and thermal performance, thermal conductivity and other indicators are in line with national standards.
4. Double glass high compartment
Aluminum-magnesium alloy or other special profile frame tempered double glass built-in manual or electric louver, profile frame and louver color can be freely selected, suitable for high-end office space Zhang Xian office space elegance and chic.
5. Movable partition
The movable partition metal track is installed in a reasonable position and is fixed on the high-efficiency fire-proof partition board. It is easy to push and release, and the whole can decorate the surface according to the indoor effect, and the appearance and sound insulation are excellent.
