Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO9001
Model Number: 65 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcomed
Price: US $78-95 per square meter
Packaging Details: Paper carton, outside with wooden boxes
Delivery Time: 12-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sliding Partition Walls For Offices Application: Banquet Room Partitions
Size: Partition Walls Customized Style: Folding And Sliding
Sample: Free Service: OEM ODM
High Light:

sliding folding partition

,

sound proof sliding partitions

Product Description

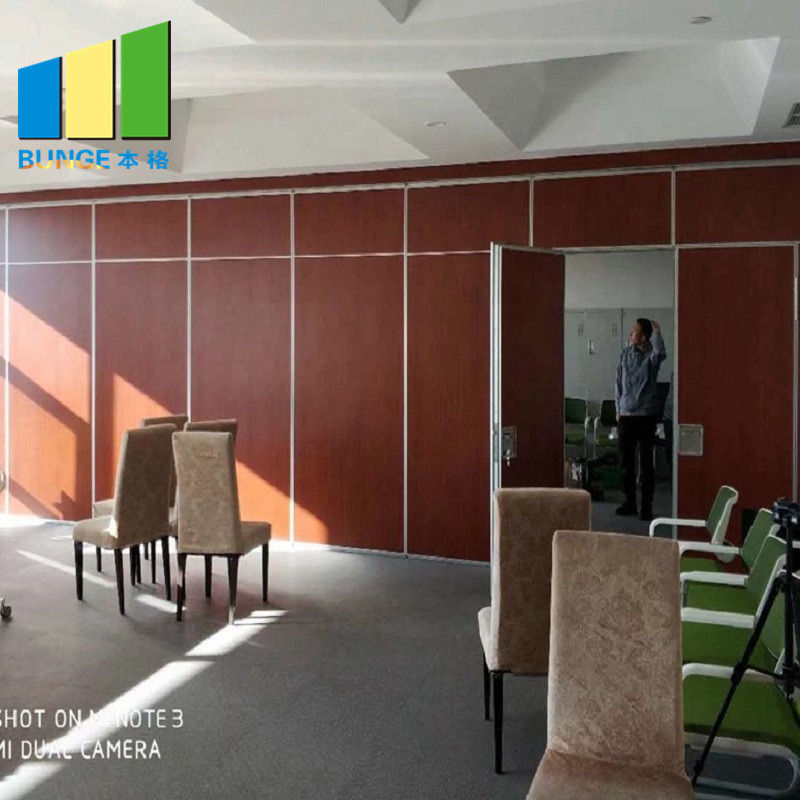

Banquet Room Temporary Acoustic Soundproof Collapsible Operable Sliding Partition Wall for Offices



Sliding partition walls for offices features



1. Without floor rail suspension: no track on the floor, only need to install the track on the ceiling and flat ceiling decoration;

2. Stable and safe: stable and reliable after the activity screen, not easy to swing;

3. Noise and environmental protection: sliding partition walls for offices sound insulation effect, the maximum sound insulation coefficient of up to 55dB;

4. Insulation and energy-saving: The sliding partition walls for offices has excellent thermal insulation performance. According to different occupancy rates, the large space is divided into small spaces to reduce various losses;

5. High-efficiency fire prevention: The sliding partition walls for offices is made of high-efficiency fireproof materials, with good fireproof performance;

6. Beautiful and generous: the sliding partition walls for offices surface decoration, can be unified with the indoor decoration effect; can complete the entire process of partition;

7. Easy to collect: When the sliding partition wall is closed, they can be hidden in a dedicated storage cabinet, which does not affect the overall appearance;

8. Training customers to cut off the use of skilled activities.

Temporary Acoustic Soundproof Collapsible Operable Sliding Partition Walls For Offices / Banquet Room 0



Technical Information
TYPE 65A 85A 100A&125A
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 85mm 100mm
Panel height Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional
Max height 4000mm with heavy duty track 6000mm with heavy duty track 18000mm with heavy duty track or steel track
Panel width 600-1200mm 600-1200mm 600-1200mm
Frame construction Aluminium/steel Aluminium/steel Aluminium/steel
Face material 12mm 12/15/18mm 12/15/18mm
Fire safety optional Class I or O optional Class I or O optional Class I or O
Vertical profiles Aluminium,anodised with sealing profiles,painted-optional Aluminium,anodised with sealing profiles,painted-optional Aluminium,anodised with sealing profiles,painted-optional
Retractable seals Aluminium,black with double rubber seals Aluminium,black with double rubber seals Aluminium,black with double rubber seals
Operation of seals Manual,with supplied operating handle Manual,with supplied operating handle Manual,with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass Doors Single open in oanel or double open in two panel Single open in oanel or double open in two panel Single open in oanel or double open in two panel
Sound insulation 40,44,47,50dB Rw 40,44,47,50,53dB Rw 40,44,47,50,53,58dB Rw
Weight Approx 33-40kg/sq M Approx 43-50kg/sq M Approx 63-70kg/sq M

Temporary Acoustic Soundproof Collapsible Operable Sliding Partition Walls For Offices / Banquet Room 1



How to install the sliding partition walls track system?



1.The size of the track box in the upper part of the sliding partition walls must be 12 cm high and 9 cm wide. Like a curtain box, a rail is installed in the track box and the sliding partition walls can be hung on the track. When the height of the door is less than 1.95 meters, it feels depressing. Therefore, Jiuzheng.com reminds that when moving partitions are made, the height should be at least 195+12=207cm.



2.The gold size of a normal door is about 80 cm x 200 cm. Under this structure, the door is relatively stable and also beautiful. Therefore, the ratio of the width and height of the moving partition should be similar to that of the gold.



3.Use the floor-to-ceiling sliding partition walls(light hanging rail box) with caution. Because the swing amplitude is too large during push-pull, the time-long sliding partition wall is easily deformed, and the deformed back door cannot be opened, which means that it cannot be repaired and cannot be used.



4.When installing the sliding partition rail, fix the upper rail, and use a gravity cone (hanger hammer) to hang the three points on both ends of the upper rail and the midpoint. Draw 3.3 points on the floor with an oil pen, install the upper rail, then face the upper rail Put a hammer to the center of the center, and put vertical lines at both ends of the track. The lower track is fixed at these three points to ensure that the upper and lower tracks are completely parallel and the sliding door is pushed and pulled in the best condition.

Temporary Acoustic Soundproof Collapsible Operable Sliding Partition Walls For Offices / Banquet Room 2
