Fireproof Flexible Soundproof Acoustic Movable Partition Wall For Office Meeting Room Church
Product Details:
Place of Origin: | Guangzhou, China |
Brand Name: | EBUNGE |
Certification: | ISO9001 |
Model Number: | 65 mm sliding partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ, small quantity welcomed |
---|---|
Price: | US $78-95 per square meter |
Packaging Details: | Paper carton, outside with wooden boxes |
Delivery Time: | 12-20 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 square meters per month |
Detail Information |
|||
Product Name: | Sliding Partition Walls For Meeting Room | Application: | Office Partition Walls |
---|---|---|---|
Surface Options: | Melamine,leather,fabric,plywood | Size: | Partition Walls Customized |
Function: | Divide The Space | Sample: | Free |
High Light: | sliding folding partition,sound proof sliding partitions |
Product Description

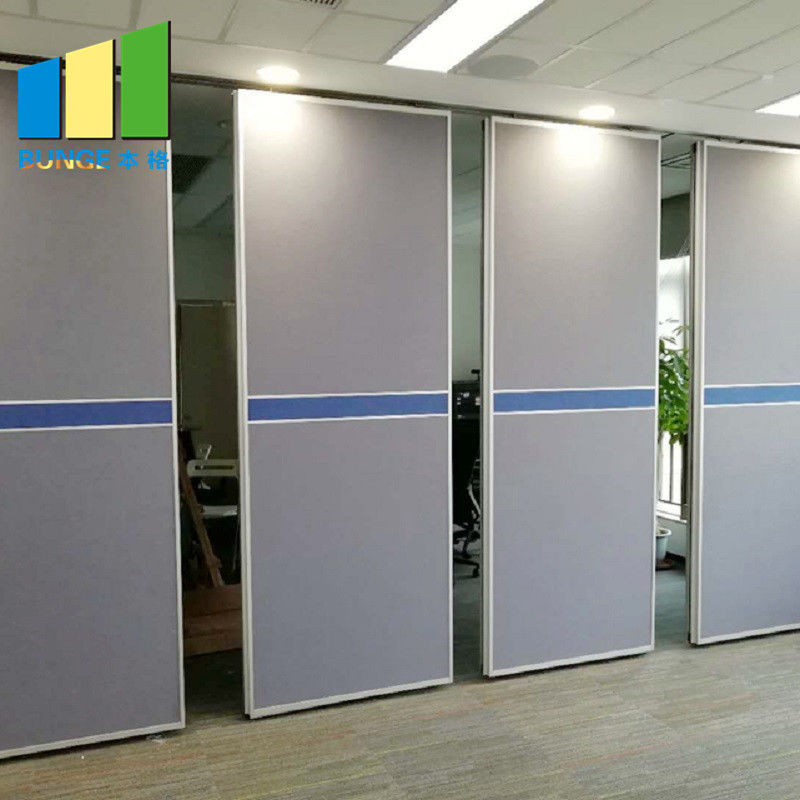

Fireproof Flexible Soundproof Acoustic Movable Partition Wall for Office Meeting Room Church
Sliding partition walls for meeting room features
This sliding partition walls for meeting room, realizes the flexible and separate use of all-round, multi-spatial angle, can repeat folding, space reuse, energy saving and environmental protection, simple and generous, fully demonstrates the separation art of indoor space.
High quality. The use of green materials, formaldehyde emission in line with national standards {1.5mg/L}, the material has a strong, durable (wear and scratch), fire, anti-deformation, anti-flammability, anti-aging, does not fade and other characteristics;
Highly soundproofed. Fully meet the soundproof standards of five-star hotels, and the sound insulation effect can reach 55db (more than 30% more than the common indoor wall sound insulation effect);
Wide range of applications. The sliding partition walls for meeting room is used in places where large spaces such as banquet halls, conference halls, exhibition halls, offices, and multi-function halls of star hotels need to be divided.
Can be customized as needed. According to the customer's different needs of customization, such as the partition model, surface decoration and collection methods such as design, can meet different styles of on-site decoration.
Technical Information | |||
TYPE | 65A | 85A | 100A&125A |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 85mm | 100mm |
Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
Face material | 12mm | 12/15/18mm | 12/15/18mm |
Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
How to install the sliding partition walls track system?
1.The size of the track box in the upper part of the sliding partition walls must be 12 cm high and 9 cm wide. Like a curtain box, a rail is installed in the track box and the sliding partition walls can be hung on the track. When the height of the door is less than 1.95 meters, it feels depressing. Therefore, Jiuzheng.com reminds that when moving partitions are made, the height should be at least 195+12=207cm.
2.The gold size of a normal door is about 80 cm x 200 cm. Under this structure, the door is relatively stable and also beautiful. Therefore, the ratio of the width and height of the moving partition should be similar to that of the gold.
3.Use the floor-to-ceiling sliding partition walls(light hanging rail box) with caution. Because the swing amplitude is too large during push-pull, the time-long sliding partition wall is easily deformed, and the deformed back door cannot be opened, which means that it cannot be repaired and cannot be used.
4.When installing the sliding partition rail, fix the upper rail, and use a gravity cone (hanger hammer) to hang the three points on both ends of the upper rail and the midpoint. Draw 3.3 points on the floor with an oil pen, install the upper rail, then face the upper rail Put a hammer to the center of the center, and put vertical lines at both ends of the track. The lower track is fixed at these three points to ensure that the upper and lower tracks are completely parallel and the sliding door is pushed and pulled in the best condition.
