Collapsible Foldable Soundproof Flexible Moving Sliding Door Partition Walls For Wedding Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sliding door partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Door Partitions | Application: | Wedding Hall Partitions |
|---|---|---|---|
| Surface Options: | Melamine,leather,fabric,plywood | Frame Material: | 6063-T6 Aluminum Alloy |
| Function: | Divide The Space | Sample: | Free |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

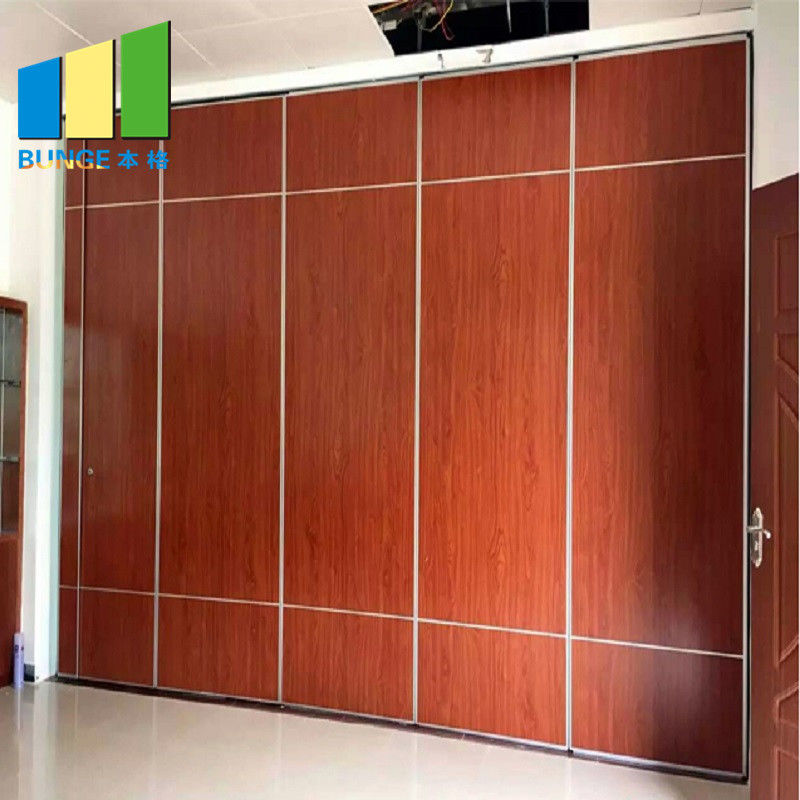

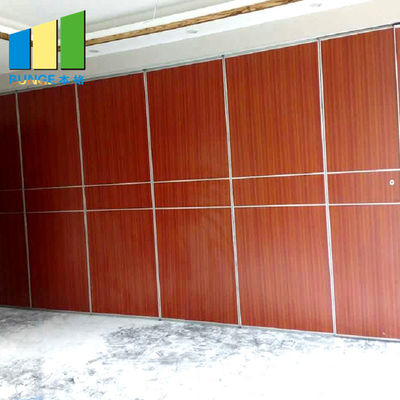

Collapsible Foldable Soundproof Flexible Moving Sliding Door Partition Walls for Wedding Hall
Sliding door partition features
The BUNGE sliding door partitions for wedding hall satisfies the most stringent requirements a user may demand from a movable wall.
The BUNGE sliding door partition for wedding hall has excellent acoustical properties. When it comes to sound insulation this acoustic room divider is the obvious choice, its sound insulation ranges from 37-58 decibels.
The BUNGE sliding door partitions for wedding hall runs smoothly along its tracks on ball-bearing trollies and is very easy to operate, it is rigid, robust and has safety features that assist in its operation.
The BUNGE sliding door partitions can benefit from a specially made steel self-supporting frame structure of which can achieve heights of more than 17 meters. Operated by a specialist scissor jack mechanism that ensures the greatest possible stability and the highest degree of sound proofing.
The BUNGE sliding door partitions Panels fully complies with BB93 (Acoustics in Schools) and is specified regularly by Architects and Designers.
Further information, drawings, colour finishes, can all be obtained by request.
| Technical Information | |||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Panel Surface Finish : The sliding door partition panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others . The basic panels will be raw MDF.(the finish materials such as laminate,veneer,melamine or fabric etc.)
Rectractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminium box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
Seals : vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
