Restaurant Movable Acoustic Room Dividers Leather Painting Finish Partition Wall
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm movable partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-101 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm | Function: | Space Divide,sound Proof |
| Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
| High Light: | sound proof room divider,banquet hall room dividers |
||
Product Description

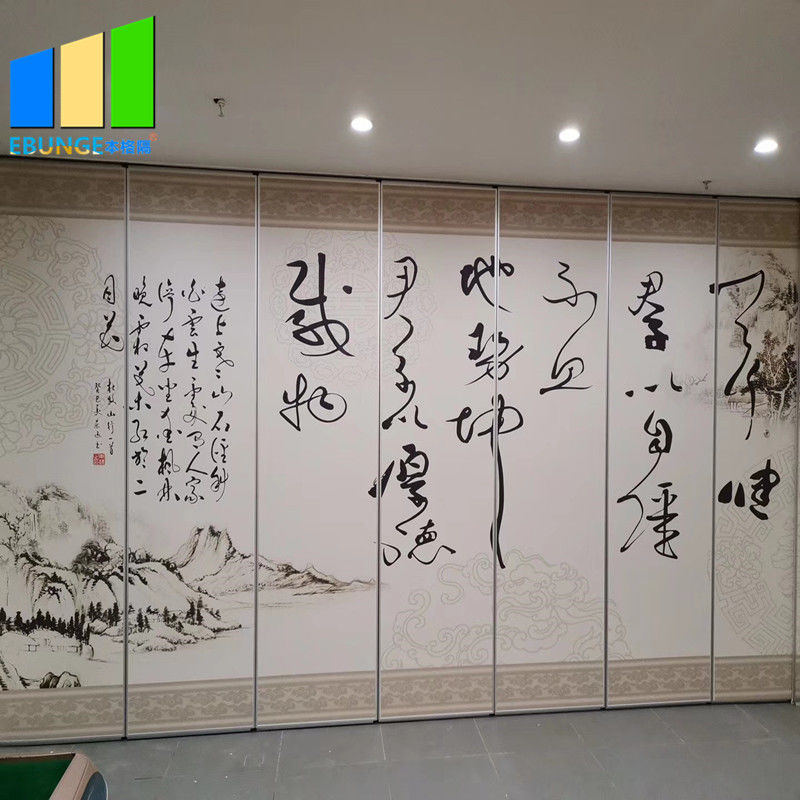

Acoustic room dividers leather finish with customized painting
Description:
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals, it provide excellent acoustic insulation property of from STC35 to 50 in laboratory setting.
Its high performance per dollar value and the easiest in-field operation makes it very suitable for Hotel, banquet hall, conference room, ballroom, muti-function hall, restaurant, classroom, office, religion, dance studio, shopping arcades and many other place where seek for space divide with good soundproof performance .
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
The movable partitions consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.
The quick set retractable seals save the owner a great deal of time during setup and take down Time means money, especially for clients that rent their facilities for meetings and other functions.
Bunge provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.
FAQ
1. Are you a trading company or a factory ?
We are factory in Guangzhou,China. We are a manufacturer engaged in movable partition for more than 10 years. Welcome to pay a visit to our factory.
2.How can you guarantee the quality?
We provide three years warrenty.
3.How to finalize orders?
Please send your room drawing and provide requirements like partition surface finished and soundproof requirements, we will design the partition for free. After your confirmation, we can start production.
4.How long is the lead time.
Normally 10-25 days upon receiving the deposit, base on the quantity 300 SQM
5.Can you do the installation?
Yes, we can send engineer to guide installtion, details please contact us.
6.How is the soundproof quality ?
From 30dB to 55dB, depends of which type and what partition surface finished you need. Contact us and we will provide professional suggestions.
