Aluminum Frame Sliding Door Partition Movable Sound Proof Partitions Wall For Restaurant
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sound proof partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Aluminum Frame Sound Proof Partition Wall | Thickness: | 65 Mm |
|---|---|---|---|
| Application: | Restaurant Partition Walls | Weight: | 25-35 KG |
| Width: | 800 - 1220 Mm | Function: | Divide The Space |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description

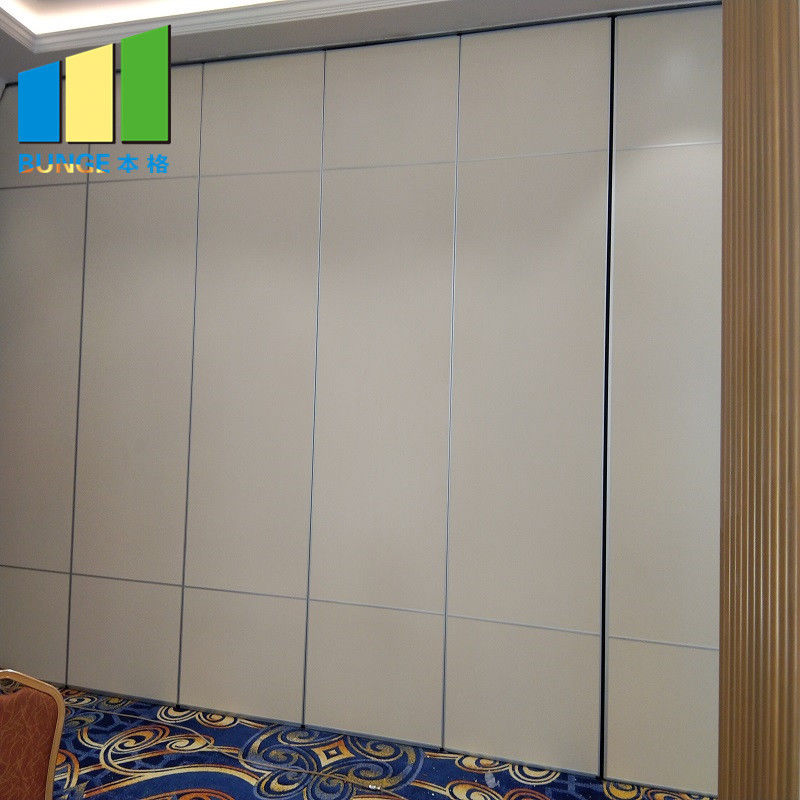

Aluminum Frame Sliding Door Partition Movable Sound Proof Partition Wall for Restaurant
Aluminum frame sound proof partition wall details
1. Can be divided into free partitions to separate the space, arbitrarily change the size of the room, according to customer needs, free to change the ballroom or conference room into a small hall or into a hall.
2. Can be a mobile partition has a good sound insulation and heat insulation function, in the course of daily use, can better protect privacy, air-conditioning energy use to achieve the purpose of saving.
3. The aluminum frame sound proof partition wall without burying the track, does not damage the carpet surface, maintains the hall overall effect, does not have the traditional ground trough to be easy to accumulate the dust, facilitates the daily cleaning work.
4. The aluminum frame sound proof partition wall surface can be selected according to customer requirements plywood, fiber board, melamine board, fire board, soft bag, tarpaulin, suede, etc., customers can make different finishes according to their own situation.
5. Widely used: Applicable to large convention and exhibition centers, exhibition halls, hotel multi-functional halls, business meeting venues, hotels, conference halls, schools or karaoke OK, hotels, government agencies, offices and so on.
| Technical Information | |||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Aluminum frame sound proof partition wall details
Aluminum frame sound proof partition wall is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.
Aluminum frame sound proof partition wall system are 2-1/4”tongue-and-groove unitized panel system. Panels are 24” wide, precision laminated, and pre-finished with vinyl, fabric or other specified finish. Panels are manufactured at various heights up to 59’. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
The BUNGE aluminum frame sound proof partition wall is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
