MDF Melamine Hotel Operable Movable Sound Proof Partitions Wall For Banquet Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sound proof partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partition For Banquet Hall | Thickness: | 65 Mm |
|---|---|---|---|
| Application: | Hotel Partition Walls | Weight: | 25-35 KG |
| Frame Material: | 6063-T6 Aluminum Alloy | Function: | Divide The Space |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description

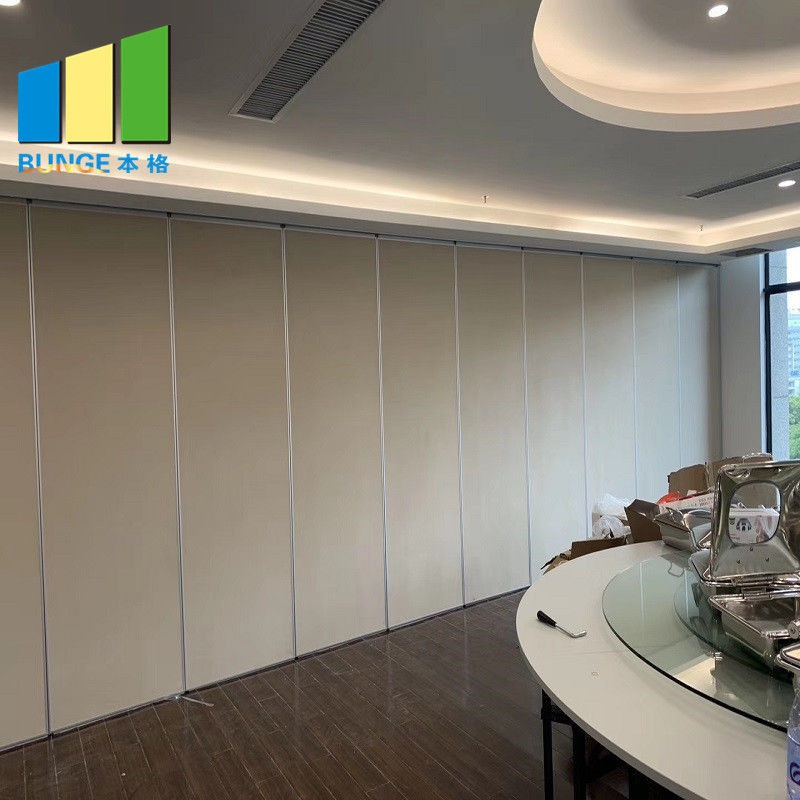

MDF Melamine Hotel Operable Movable Sound Proof Partition Wall for Banquet Hall
Sound proof partition for banquet hall details
The sound proof partition for banquet hall is a kind of operable wall that can divide a large space into a small space or a small space into a large space at any time according to needs and has a general wall function. It can serve as a multi-purpose room with multiple functions.
The sound proof partition for banquet hall has the characteristics of easy installation, reliability, industrial production, fire prevention, and environmental protection.
Sound proof partition for banquet hall is a kind of sliding wall that can divide a large space into a small space. It can serve as a multi-purpose room with multiple functions.Top hanging system without floor track. Also is seal and has good sound insulation.
Our factory can provide four series product let you have a choosing. Panel height is from finished floor to ceiling or beam. Panel width is from wall to wall.
| Technical Information | |||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Sound proof partition for banquet hall advantages
1. Top hung system without the need for a floor track.
2. Retractable top and bottom seals ensure effortless movement of panels.
3. Combines elegance with robust construction.
4. Concealed or exposed panel edge profiles.
5. Numerous panel stacking options for complete flexibility.
6. Sealed for life roller assemblies provide smooth and silent movement.
7. The system offers various levels of sound reduction.
8. Extensive range of surface finishes available.
