Gypsum Sliding Folding Door Acoustic Movable Partition Wall Board For Hotel
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm movable partition wall board |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall Board | Thickness: | 65 Mm |
|---|---|---|---|
| Application: | Hotel Partition Walls | Weight: | 25-35 KG |
| Frame Material: | 6063-T6 Aluminum Alloy | Function: | Divide The Space |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

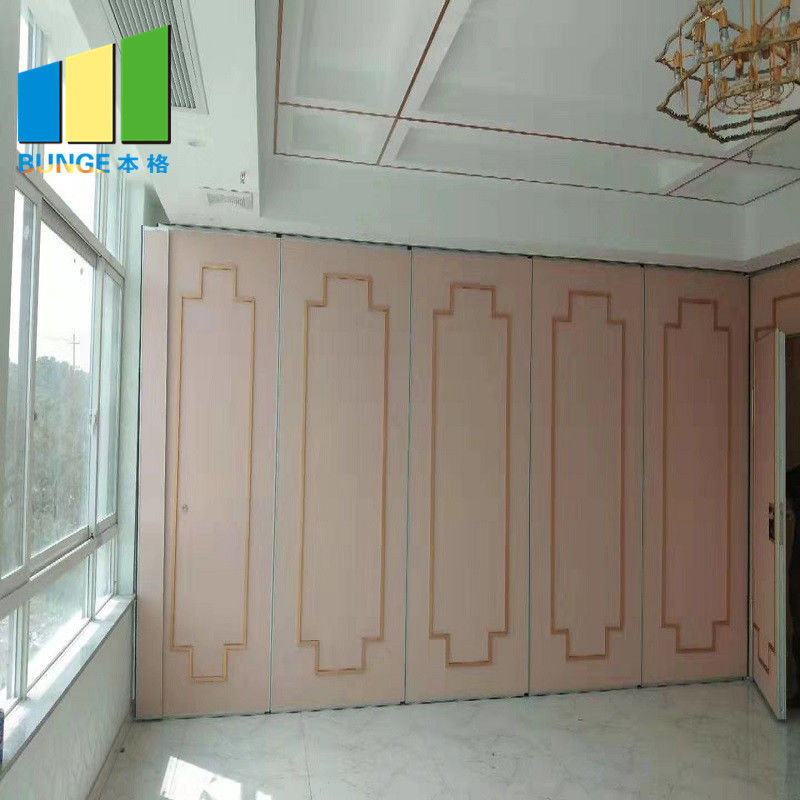

Gypsum Sliding Folding Door Acoustic Movable Partition Wall Board for Hotel
Movable partition wall board accessories feedback
There are more than 60+ kinds of accessories for the movable partition wall boards, which can form a whole sealing system. We have more than 10 tons stock of partition walls accessories in our factory now. Normally we can provide the movable partition walls tracks accessories to our client, such as the aluminum tracks and the trolley bearings. So if our client need to buy the partition walls accessories,we can start package and delivery immediately. We have exported the partition walls accessories to many countries,such as the Colombia, New Zealand, Ireland, America, Sri Lanka, Australia and so on.
The following picture is about the feedback from our client who comes from Colombia, a very nice person and he also produce the partition walls,just importing the movable partition wall board accessories. And he gave me return order regularly.
| Technical Information | |||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Movable partition wall board FAQ
Q1 : What is your main product?
A1 : We can supply the movable partition wall boards system(including movable walls tracks and other accessories)as well as the installation, office furniture and some acoustic panels.
Q2 : What’s your price?
A2 : The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.
1) Shop drawing , dimensions, quantity;
Q3 : What is the standard size ?
A3 : Our movable partition wall is CUSTOMER MADE. We always manufacture movable partition wall board according to buyer's dimensions.
Q4 : What is your delivery time?
A4 : For the series we stocked 10 working days with 300m2 , For the series unstocked 40 working days with 700m2.
Q5 : What is your payment terms?
A5 : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container.
Q6 : What is your warranty ? What do we do in case of problems?
A6 : 5 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
