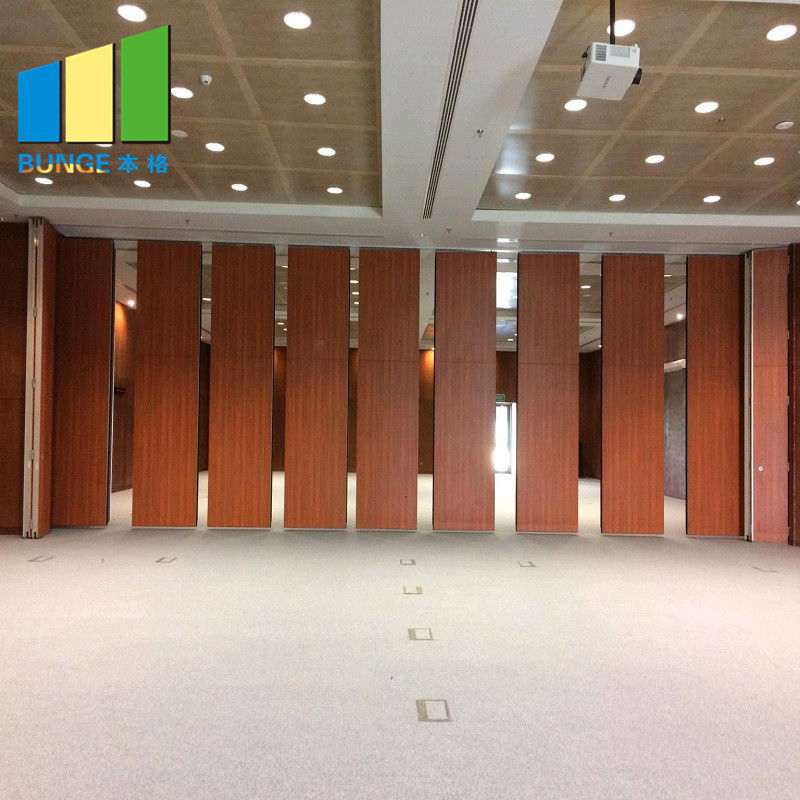

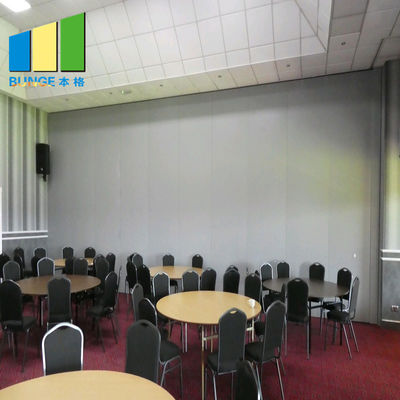

Demountable Sliding Fire Rated Acoustic Movable Partition Walls For Exhibition Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm movable partition walls for exhibition hall |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls For Exhibition Hall | Thickness: | 65 Mm |
|---|---|---|---|
| Application: | Dance Room Partitions | Weight: | 25-35 KG |
| Surface: | Melamine | Access Door: | Single Or Double |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
Demountable Sliding Fire Rated Acoustic Movable Partition Walls For Exhibition Hall
Movable partition wall for exhibition hall details
Track suspension up to 200 mm ceiling void into suitable ceiling structure steel or concrete, supplied and fitted by others, Single Pivot / Double Pivot
Aluminium Track.
Standard Panels, Manually Operated,
Standard Telescopic Panels
Wall Abutment
Panel thickness 65,85,100 mm
Top and bottom seals extended by hand cranking mechanism.
Sound Insulation Value Rw 54dB (laboratory tested solid Panels)
Surface Finish: Laminate from our Diverse Range
- Paint Primer to be decorated on Site by Others
- Laminate
- Clear Lacquered Realwood Oak Veneer
- Verscom wall vinyl
- Melamine
- Fabric Surface
- Leather Surface
Technical information
| Model | BG-65 series | BG-85 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Movable partition wall for exhibition hall advantages
Individual panels that can be stored away for maximum space utilization.
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple in fill's for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring obstruction free threshold.
Three panel sizes to accommodate a wide range of acoustic requirements .
Extensive range of surface finishes can be applied.
