Movable Partition Walls Aluminium Glass Office Partition For Conference Center
Product Details:
Place of Origin: | Guangzhou,China |
Brand Name: | BUNGE |
Model Number: | Series 65 mm sound proof partitions |
Payment & Shipping Terms:
Minimum Order Quantity: | 10pcs |
---|---|
Price: | 70-109 USD per square meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 square meters per month |
Detail Information |
|||
Product Name: | Folding Partition Wall | Material: | Aluminium Frame And Mdf Board |
---|---|---|---|
Height: | Less Then 3 M | Width: | 500-1200 Mm |
Thickness: | 65mm | Function: | Space Divide,sound Proof |
Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
High Light: | movable walls on wheels,movable partitions systems |
Product Description

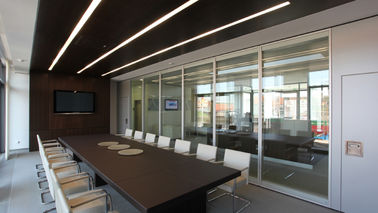

Movable partition walls aluminium glass office partition for conference center
Specification:
Specifications 1.Office glass partition can separate the space speedy and conveniently. 2.Top hung system without floor track,make the space more beautiful. 3.The movable glass wall panel is made of high density aluminum frame,special rubber,ground bolt and transparent tempered glass or frosted tempered glass. 4.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering. 5.The operable partition finished panel is hanging on the aluminum track, assembled with muti direction wheels. Good for operation. |
Technical parameters:
Series | BG65 Glazing Glass Partition | BG85 Aluminum Frame Glass Partition | BG85 Sound proof Glass Partition |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 36mm | 85mm | 85mm |
Panel height | Up to 3000mm | Up to 6000mm | Up to 6000mm |
Max height | 3000mm | 6000mm | 6000mm |
Panel width | 800-1100mm | 800-1100mm | 800-1100mm |
Frame construction | Top and bottom aluminum | Aluminum frame | Aluminum frame |
Glass thickness | 10mm or 12mm single glass | 10mm or 12mm single glass | double 10mm glass |
Fire safety | Optional Class O | Optional Class O | Optional Class O |
Vertical profiles | n/a | n/a | Aluminum anodised with sealing profiles |
Retractable seals | n/a | n/a | Aluminum black with double rubber seals |
Operation of seals | n/a | n/a | n/a |
Pass doors | Fixed full height door | Fixed full height door | Fixed full height door |
Locking | Optional lock to panel | Optional lock to panel | Optional lock to panel |
Sound insulation | n/a | n/a | n/a |
Weight | Approx 30 kg/sq M | Approx 32 kg/sq M | Approx 50 kg/sq M |
Bunge designing folding Sliding Wall Systems are ideal for any application where transparency, natural sunlight and versatility are required. Whether the purpose is to link or separate, add security, provide noise or thermal insulation for Indoor environment, Doorfold solutions are available in a variety of configurations to meet your design requirements.
Bunge movable glass partitions are supported on tracks from above — no floor tracks are needed,the glass panels are fixed by floor pins when they are in opening to keep the safety and steady of the panels.
Free Sample in 10 Days Inquiry now and you will have your sample in 10 day if you pay the express. | 3-year Warranty The acoustic room divider made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years | OEM Service Your logo can be printed on the packaging carton |
About us:
Guangdong Bunge Building Matarial Industrial Co.,Ltd is professional company in manufacturing movable partitions.It also artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staffs with more than 10 years of experience in design,production and installation.
Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.
