Manual Hanging System Moveable Sliding Partition Walls For Conference Room

China Manual Hanging System Moveable Sliding Partition Walls For Conference Room supplier
Manual Hanging System Moveable Sliding Partition Walls For Conference Room supplier Manual Hanging System Moveable Sliding Partition Walls For Conference Room supplier Manual Hanging System Moveable Sliding Partition Walls For Conference Room supplier Manual Hanging System Moveable Sliding Partition Walls For Conference Room supplier

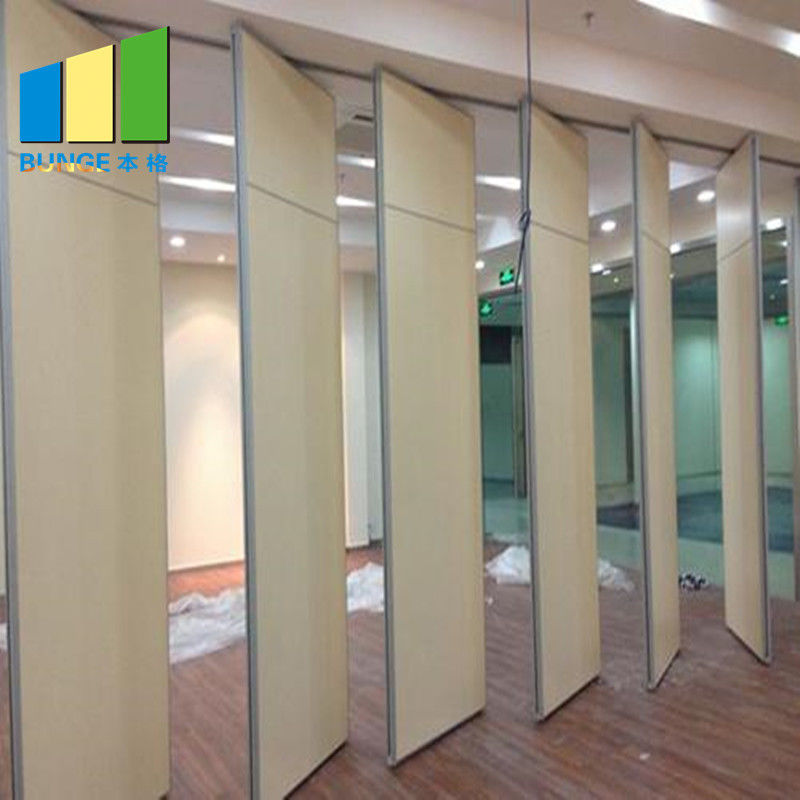

Large Image :  Manual Hanging System Moveable Sliding Partition Walls For Conference Room

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 65 mm sliding partition walls for hotel

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Contact Now
Detailed Product Description
Product Name: Sliding Partition Walls For Hotel Application: Conference Room Partitions
Surface Material: Melamine Thickness: 65 Mm(2 9/16 Inch)
System: Manual Track Material: Aluminum Alloy

Manual Hanging System Moveable Sliding Partition Walls for Hotel Conference Room



Sliding partition walls for hotel features:



Main structure of sliding partition walls for hotel is generally composed of aluminium track, rollers, sealing strips, aluminium frames, reference surface materials, sound insulation materials, transmission rods, and sealant strips.



When moving a sliding partition wall panel for hotel there is a 22.5-25mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.



Once a sliding partition walls panel for hotel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.



The pressure seals are extended and retracted by a single 180°turn of a removable operating handle. Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.

Manual Hanging System Moveable Sliding Partition Walls For Conference Room



Technical Information



Model 65 sliding partition walls for hotel

85 sliding partition walls for hotel

100 sliding partition walls for hotel

Ultrahigh sliding partition walls for hotel

Panel Thickness 65 MM 85 MM 100mm 100mm
Panel Width 680mm-1210mm 680mm-1230mm 680mm-1230mm 680mm-1230mm
Panel Height 2000mm-4500mm 3000mm-6500mm 5000mm-8500mm 7000mm-17000mm
Frame 6063 T6 Aluminium 6063 T6 Aluminium 6063 T6 Aluminium 6063 T6 Aluminium

Acoustic alreduction

coefficient(db)

32db 45db 60db 60db

Hermetic flex

distance(mm)

45mm 45mm 45mm 60mm
Weight(kg/m) 17,19,20,24 24,25,28,38 40,45,48,55 60,60,60,60
Faceplate Material

Class-fibr board,

Melamine decorative

lamminate board,

Gypsum board,Color

steel plate,Fiberboard,

Tempered glass

Class-fibr board,

Melamine decorative

lamminate board,

Gypsum board,Color

steel plate,Fiberboard,

Tempered glass

Class-fibr board,

Melamine decorative

lamminate board

,Gypsum board,

Color steel plate,

Fiberboard,

Tempered

glass

Class-fibr board,

Melamine decorative

lamminate board,

Gypsum board,Color

steel plate,Fiberboard,

Tempered glass

Panel Surface Finish

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

customize surface

treatment

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

customize surface

treatment

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

surface treatment

Anodizing,

electrophoresis,

Powder coating;

Wooden grain or

customize surface

treatment

Manual Hanging System Moveable Sliding Partition Walls For Conference Room



Sliding partition walls for hotel details



It doesn’t need track on the floor, we hang the track on the ceilings and it can be at the same color with the ceiling decoration. It won’t affect the whole decoration style. We can add single or double doors on the panel for convenience. Many different finishes are available to meet customer different requirements and get different decoration effects.

There is sound insulation rubber around each panel, which can help to insulate the sound going through. The operation way is much easier. It’s better than the old ways which using spring. The sliding partition wall for hotel is widely used in exhibition center, hotel, shopping malls, school, multi-function hall, banquet hall, conference room, training room, etc.



The sliding partition walls for hotel is made of high density aluminum frame, special made rubber, excellent sound insulation cotton, finish board, etc. The finish panel is flat and hard; The finish panel is inserted in the aluminum track, assembled with multi-direction wheels. The sliding partition walls for hotel can be stored in many different ways. BUNGE sliding partition wall for hotel is flexible, artistical and can be moved freely. And it has sound insulation, heat insulation and fireproof function.

Manual Hanging System Moveable Sliding Partition Walls For Conference Room
