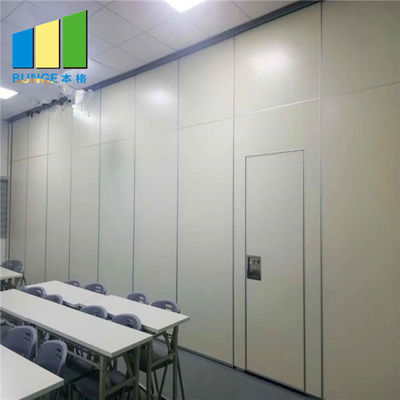

Sliding Folding Temporary Acoustic Partition Walls Mobile Soundproof Room Partition
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm temporary acoustic partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Temporary Acoustic Partitions | Application: | Conference Hall Partitions |
|---|---|---|---|
| Finish Option: | Fabric, Melamine Laminate | Thickness: | 65 Mm(2 9/16 Inch) |
| Contract Range: | 22.5 Mm | Warranty: | 5 Years |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Sliding Folding Temporary Acoustic Partition Walls Mobile Soundproof Room Partition
Temporary acoustic partitions features
- Top hung system without the need for a floor track.
- Retractable top and bottom seals ensure effortless movement of panels.
- Combines elegance with robust construction.
- Concealed or exposed panel edge profiles.
- Numerous panel stacking options for complete flexibility.
- Sealed for life roller assemblies provide smooth and silent movement.
- The system offers various levels of sound reduction.
- Extensive range of surface finishes available.
| Pattern | Hoist Weight | STC | Frame Material | Track Loading Weight | Retractable Range of Top/Bottom | Width (Min/Max) |
Height (Min/Max) |
Thickness (Min/Max) |
| kg/m2 | db | kg/m | mm | mm | mm | mm | ||
| BG-65 | 30 | 32 | Aluminium | 225 | 22.5 | 750-1200 | 2000-3000 | 65 |
| BG-80 | 35 | 38 | Aluminium | 450 | 22.5 | 750-1200 | 3000-5000 | 80 |
| BG-100 | 45 | 45 | Aluminium | 675 | 22.5 | 750-1200 | 5000-10000 | 100 |
Temporary acoustic partitions features
◆Top hung system without the need for a floor track.
◆After installing the temporary acoustic partitions,it is stable and safe,not easy to swing.
◆ Temporary acoustic partitions system can separate the space speedy and conveniently.
◆Extensive range of temporary acoustic partitions surface finishes can be available.
◆The temporary acoustic partitions system offers various levels of sound insulation,fireproof function and heat insulation .
◆When closing the board,the temporary acoustic partitions can be hidden in the special storage cabinet,which does not affect the overall appearance.
Technical Information
| Model | 65 temporary acoustic partitions |
85 temporary acoustic partitions |
100 temporary acoustic partitions |
Ultrahigh temporary acoustic partitions |
| Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm | 680mm-1230mm | 680mm-1230mm |
| Panel Height | 2000mm-4500mm | 3000mm-6500mm | 5000mm-8500mm | 7000mm-17000mm |
| Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
32db | 45db | 60db | 60db |
|
Hermetic flex distance(mm) |
45mm | 45mm | 45mm | 60mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 | 40,45,48,55 | 60,60,60,60 |
| Faceplate Material |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
| Panel Surface Finish |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
