Moveable Acoustic Partition Walls Sliding Folding Partitions For Exhibition Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm moveable acoustic partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Moveable Acoustic Partitions | Application: | Conference Hall Partitions |
|---|---|---|---|
| Finish Option: | Fabric, Melamine Laminate | Thickness: | 65 Mm(2 9/16 Inch) |
| Style: | Folding And Sliding | Warranty: | 5 Years |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Moveable Acoustic Partition Walls Sliding Folding Partitions for Exhibition Hall
Finished project
Thanks for the trust from the client. We finished a moveable acoustic partition walls project in Januarary,2019. Totally 1 set of wall. Size: 9144*5886 mm, around 53.8 square meters. And the client choose 2 different finishes for this project, one is for melamine, the other is fabric finish.
On March 20th,2019, we received some nice feedback from our client who comes from Canada.
He is a contractor in charge of the project details, his engineer just installed the movable partition walls well and sent us some pictures and videos about the project site.
Everything goes well and his client felt satisfied and happy about our movable partition walls.
Technical Information
| Description of the whole system | |
| Item | Moveable acoustic partitions systems |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-55db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect. |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
| Product name | Moveable acoustic partitions | ||
| Material | Melamine+MDF board, or MDF board+acoustic panel, or plaster board+acoustic panel, or magnesium+acoustic board, or sound insulation board+acoustic board. | ||
| Finish | Anti-fire fabric, anti-fire leather, melamine, fabric acoustic panel. | ||
| Thickness | 65mm, 85mm, 100mm | ||
| Width | 800-1200mm | ||
| Max height | 4500mm | ||
| Acoustic reduction coefficient | 30-45 dB | ||
| Hermetic bar flex distance | 46-60mm | ||
| Weight | 18-35 kg/m2 | ||
| Environmental | E1 grade | ||
| Application | Exhibition hall, international conference center, any places where need to be separated and full used easily. | ||

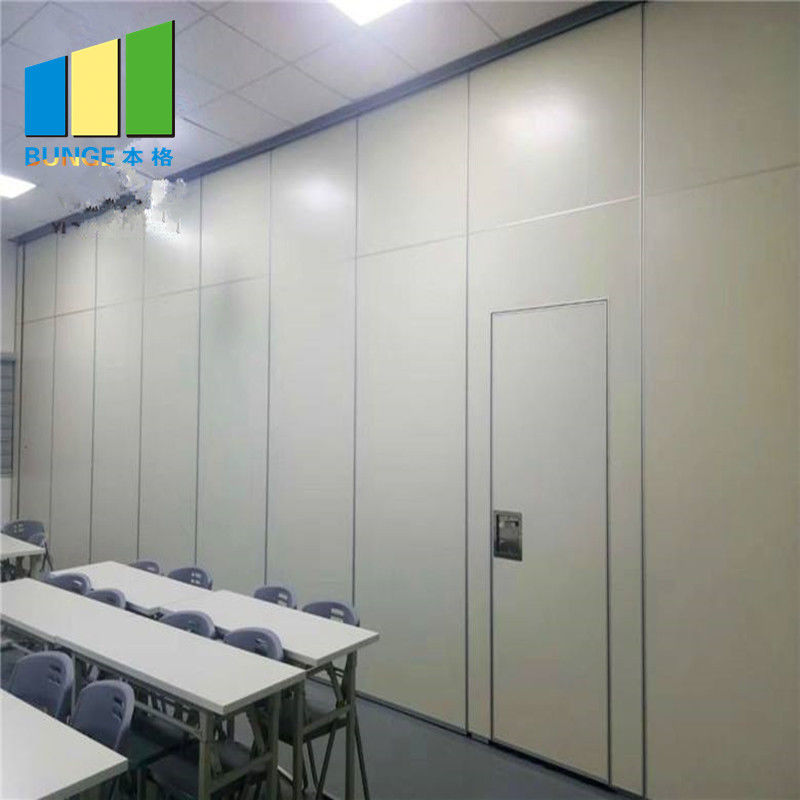

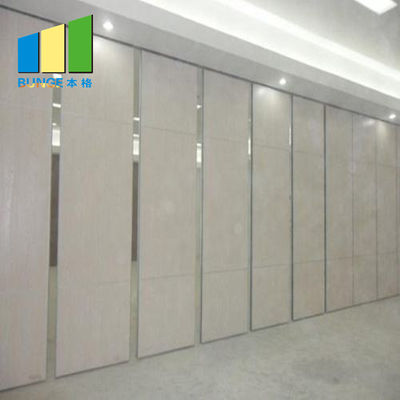

Moveable acoustic partition walls application
The moveable acoustic partition walls system is totally top supported, no floor tracks, no wall jamb on wall , manually operated panels of convenient sizes, and can be stacked in area at ends with various parking option. The moveable acoustic partition walls system when closed, its provide proper wall with complete sound barrier, the sound reduction is up to 53 db based on the differenct project.
This moveable acoustic partition walls system can be applied in hotels, Muti-functions halls, Meeting Room, Convention Center, Residential area, College and School, Banquet hall, Training rooms etc.
