Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 65 mm moveable acoustic partitions

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Moveable Acoustic Partitions Application: Conference Hall Partitions
Finish Option: Fabric, Melamine Laminate Thickness: 65 Mm(2 9/16 Inch)
Style: Folding And Sliding Warranty: 5 Years
High Light:

acoustic operable partitions

,

movable acoustic partition walls

Product Description

Folding Wood Partition Moveable Acoustic Partition Walls System

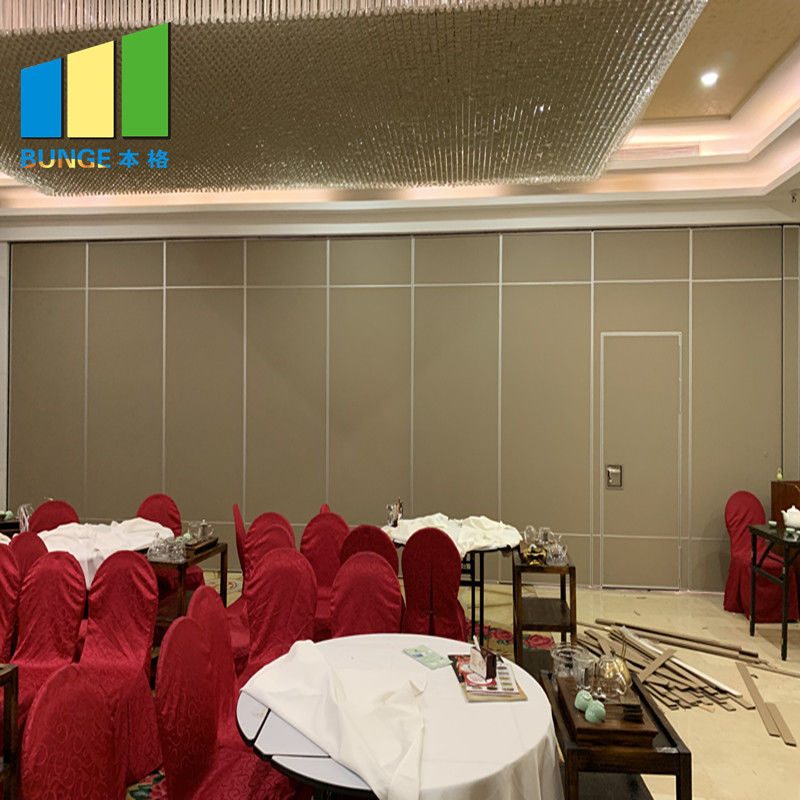

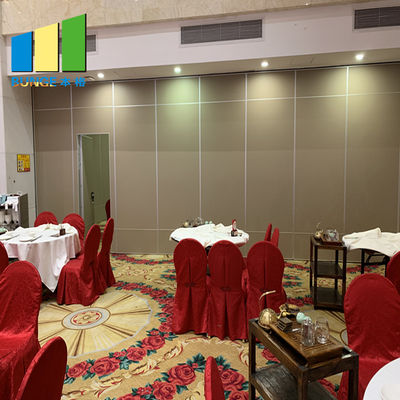

Finished project



Thanks for the trust from the client. We finished a moveable acoustic partition walls project in Januarary,2019. Totally 1 set of wall. Size: 9144*5886 mm, around 53.8 square meters. And the client choose 2 different finishes for this project, one is for melamine, the other is fabric finish.



On March 20th,2019, we received some nice feedback from our client who comes from Canada.



He is a contractor in charge of the project details, his engineer just installed the movable partition walls well and sent us some pictures and videos about the project site.



Everything goes well and his client felt satisfied and happy about our movable partition walls.

Office Acoustic Room Movable Partition Walls / Conference Hall Sliding Folding Partition

Office Acoustic Room Movable Partition Walls / Conference Hall Sliding Folding Partition



Technical Information



Description of the whole system
Item Moveable acoustic partitions systems
Partition Height 2-17 meters
Sound Transmission Class(STC) 32-55db
Description of accessories
Roller Imported dupont POM material roller,bearing capacity 225-1300kg
Track System Clear anodized 6063-T6 aluminum double track
Surface finish option MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect.
Junction "T"junction, "L" juntion, cross/ "X" juntion
Product name Moveable acoustic partitions
Material Melamine+MDF board, or MDF board+acoustic panel, or plaster board+acoustic panel, or magnesium+acoustic board, or sound insulation board+acoustic board.
Finish Anti-fire fabric, anti-fire leather, melamine, fabric acoustic panel.
Thickness 65mm, 85mm, 100mm
Width 800-1200mm
Max height 4500mm
Acoustic reduction coefficient 30-45 dB
Hermetic bar flex distance 46-60mm
Weight 18-35 kg/m2
Environmental E1 grade
Application Exhibition hall, international conference center, any places where need to be separated and full used easily.

Folding Wood Partition Moveable Acoustic Partition Walls System 2



Moveable acoustic partitions details



The moevable acoustic partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.


Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.



The moveable acoustic partition walls panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.



Moveable acoustic partition wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kilograms in weight, there are multiple options for Door types, parking areas and track layouts. Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Moveable acoustic partition walls can be created to suit any space within reason.

Folding Wood Partition Moveable Acoustic Partition Walls System 3
