Restaurant Sound Proof Partitions Banquet Room Aluminum Movable Walls
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm cheap sound proof partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Cheap Sound Proof Partitions | Application: | Restaurant Partition Walls |
|---|---|---|---|
| Weight: | 25-80 KG/square Meter | Thickness: | 65 Mm(2 9/16 Inch) |
| Finishing Option: | Melamine, Fabric, Leather | Service: | OEM ODM |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description

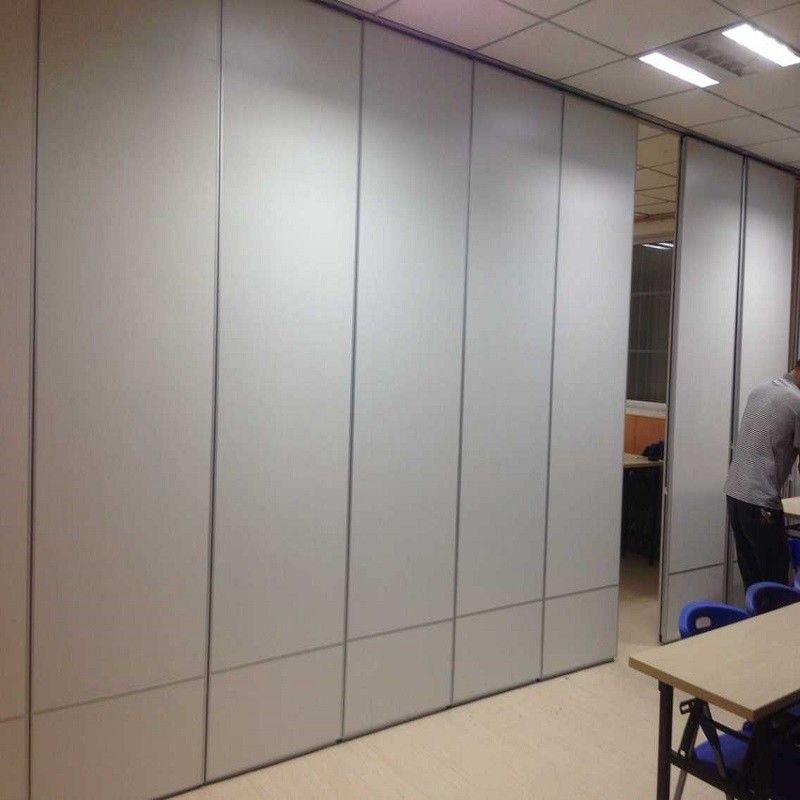

Restaurant Cheap Sound Proof Partitions Banquet Room Aluminum Movable Walls
Cheap sound proof partitions advantages
Specific aluminum alloy rails to meet the necessary stacking requirements. The intersection design should prevent the cheap sound proof partitions track wheel from falling into the track groove. Heavy-duty multi-way roller enables easy movement of the folding partition walls cost for rooms through the ceiling track.
The panel of cheap sound proof partition has a unique fast seal winding mechanism and a solid vertical seal edge profile to ensure that all panels fit perfectly.
Built-in excellent retractable top and bottom seals are anodized by extruded aluminum channels, rubber sealed, and operated by a handle with a cap lock system with spring-loaded telescopic rods. The vertical seal of each cheap sound proof partitions panel is made of thick and tongue-type extruded aluminum laminated with rubber seal.
Top and bottom seals do not collected to the ceiling track and floor during panel’s movement. When the sound seals are combined, the cheap sound proof partitions panel is placed in a stable position, and the top and bottom seals are compressed on the rails and floors by tight acoustic seals, including adjustable telescopic panels.
Cheap sound proof partitions cost with high acoustic performance should provide an average sound attenuation of 45Db to 50DB.
The weight of cheap sound proof partitions panel should be an average of 35 kg/m2, depending on the panel size.
By default it’s 9mm MDF board. However, it can be adapted to any decorative design, such as wood veneer, fabric, etc.
The cheap sound partitions consist of a series of single flat wall panels that are manually operated and allow stacking flexibility of the center or remote side.
Technical Information
| Series |
Thickness (mm) |
Applied height (m) |
Width of Intermediate panel (m) |
Acoustical reduction coefficient (db) |
Hanging weight |
| #65 | 65 | 2.0~4.5 | 0.6~1.2 | 35 | 30kg/m2 |
| #85 | 85 | 3.0~6.8 | 0.6~1.2 | 45 | 35kg/m2 |
| #100 | 100 | 5.0~8.0 | 0.6~1.2 | 53 | 45kg/m2 |
| #125 | 120 | 7.0~13.0 | 0.6~1.2 | 65 | 65kg/m2 |
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
Cheap sound proof partitions advantages
Cheap sound proof partitions material is designed to address the most basic needs of schools, churches, hotel, coffee room, inspection hall, exhibition center, station, art hall, auction center, stadium, KTV partitions, art museum, testing center, convention center, airport, conference center, library, training facilities and office environments.
With the unique multi-layer panel system, our pattern 65 cheap sound proof partition has excellent acoustic performance with a STC up to 40dB.
Double PVC seals are mounted around the cheap sound proof partitions to provide the highest level of acoustic integrity. More importantly, this fit can also achieve the desired acoustic integrity between two nearby rooms.
The acoustic structure includes multi-layer board at the top and bottom of the cheap sound proof partitions and the glass wool inside. The acoustic performance is up to 40 STC, and the fabric wrapped acoustic panel and perforated MDF panel can be used to reduce echo. The vinyl at all edges help to prolong life time and seal the noise.
These cheap sound proof partitions will be provided in an end-folded configuration to meet a variety of parking requirements and the first panel can be provided as a standard access door.
The cheap sound proof partition has aluminum edge profile, and panels are available for a variety of surface treatments including painted, polished veneer or various standard or high pressure laminate. Fire rated finish panel is also available.
