Payment & Shipping Terms:
|Product Name:||Ballroom Movable Partitions||Application:||Hotel Partition Walls|
|System:||Hanging System, No Floor Track||Packaging:||Paper Carton, Outside With Wooden Box|
movable walls on wheels,
movable partitions systems

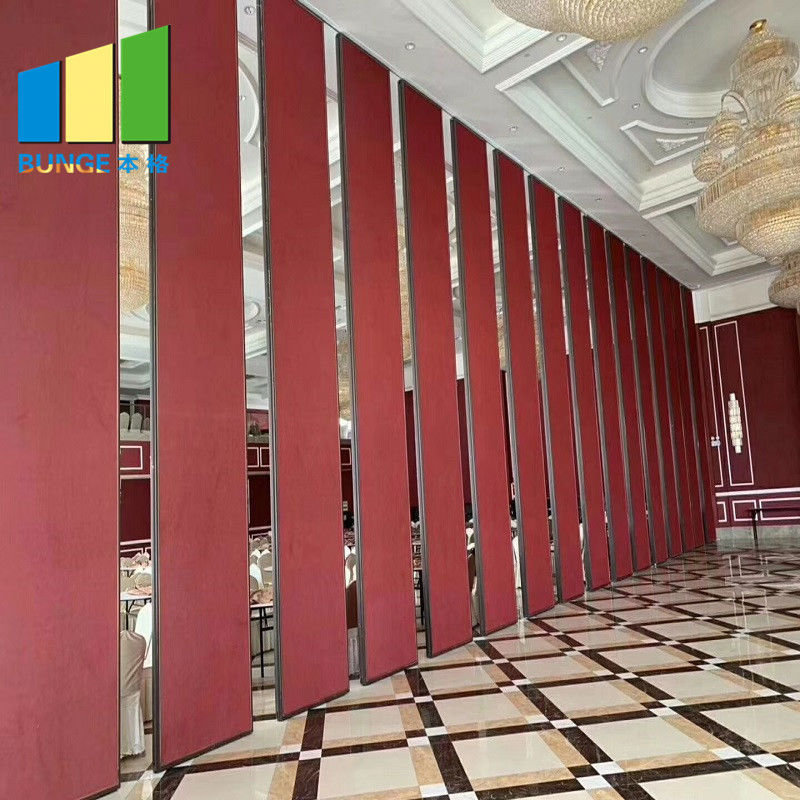

Ballroom Acoustic Movable Partitions Soundproof Folding Partition Walls For Restaurant In Thailand
❶ Wooden (MDF, Plywood bare raw finish) & (Melamine, Veneer)
❷ Fabric (fabric with mdf board hard covers) & (fabric with sponge soft covers)
❸ Leather (leather with mdf hard covers) & (leather with sponge soft covers)
❹ Wallpaper, Vinyl, Fireproof board
❺ Acoustic panels
❻ Tempered glass. etc.
Externally, most ballroom movable partition wall panels look the same, but it’s not simply the outside which makes a good movable wall, it is what’s inside the panel which makes the difference.
Ballroom movable partitions details
The ballroom movable partition panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction.
The panel faces shall be finished with selected material.
· Basic Panels shall be equal in module.
· Approx. Weight kg/ square meter : 25 kg.
· Maximum height : 4000mm.
Panel Surface Finish :
The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)
Retractable mechanism :
The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode . Single crank type mechanisms shall activate floor and head seals .
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
|Model||BG65 Series||BG80 Series||BG100 Series||BG High-Series|
|Suspensionsystem||Aluminum hanging||Steal Hanging|
|Basic Thickness||65 mm||80 mm||100 mm||100 mm|
|Max Height||Up to 3800 mm||Up to 6000 mm||Up to 8000 mm||Up to 15000 mm|
|Floor/Ceiling Sealing Strength||Telescopic aluminum tube with rubber strip.|
|Side walls sealing strength||Double seal tape|
|Sound insulation level||26-30 db||28-34 db||32-40 db||42-52 db|
|Panel structure||Aluminum frame with wooden keel||Aluminum frame with steel keel|
|Surface material||Melamine laminate/fabric/PU leather/wallpaper/veneer/customized|
Ballroom movable partitions features
Many panel stack options are completely flexible;
No floor track to get in the way;
Individual acoustic partition wall panel can be stored to maximize the use of space.
Operable top and bottom seals for easy operation;
A wide range of surface finishes are available for folding partition walls
High performance multiple fill for maximum noise reduction;
Sound insulation aluminum frame structure, enhance the acoustic effect;
Unique track systems ensure quiet and easy operation;
Three panel thickness are available for a variety of acoustic requirements.
Contact Person: Michelle Mo
