Banquet Hall Collapsable Walls Folding Soundproof Retractable Movable Partitions For Hotel
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm retractable movable partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Retractable Movable Partitions | Application: | Hotel Partition Walls |
|---|---|---|---|
| Thickness: | 65 Mm | Size: | Partition Walls Customized |
| Weight: | 25 KG/M² | Feature: | Soundproof |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

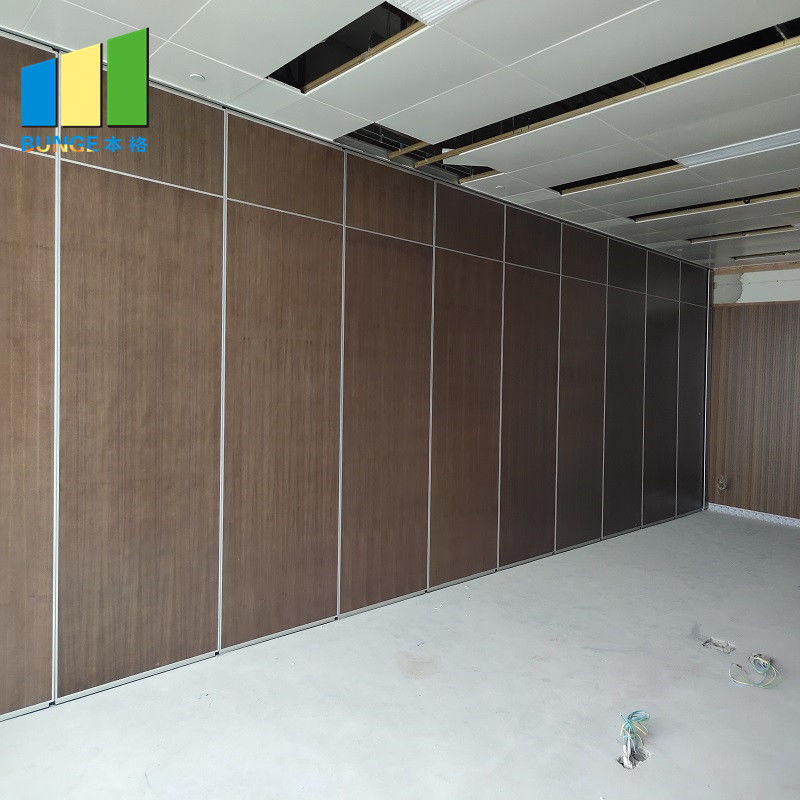

Banquet Hall Collapsable Walls Folding Soundproof Retractable Movable Partitions for Hotel
Retractable movable partitions for hotel details
Description :
The retractable movable partitions for hotel panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.
Operation :
Retractable movable partitions for hotel shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Track :
The retractable movable partitions tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
Trolley :
BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .
Aluminum trim :
The retractable movable partitions panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used .
Technical Information
| Series | BG65 | BG80 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
| Max height | 3500mm | 5200mm | 17000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | ||
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire retardant | as request | ||
| Retractable seals | have | ||
| Adjustable panels | Manual, with supplied operating handle | ||
| Pass doors | Single door or double door as request | ||
| Sound insulation | 32dB | 40dB | 50dB |
| Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
Retractable movable partitions features
Many panel stack options are completely flexible;
No floor track to get in the way;
Individual acoustic partition wall panel can be stored to maximize the use of space.
Operable top and bottom seals for easy operation;
A wide range of surface finishes are available for folding partition walls
High performance multiple fill for maximum noise reduction;
Sound insulation aluminum frame structure, enhance the acoustic effect;
Unique track systems ensure quiet and easy operation;
Three panel thickness are available for a variety of acoustic requirements.
Our Services
· Detailed initial client consultation
· Bespoke design
· Digital CAD drawings
· Highest quality manufacturing and production
· Professional and efficient Installation service
· Two years guarantee
· Guaranteed customer satisfaction
