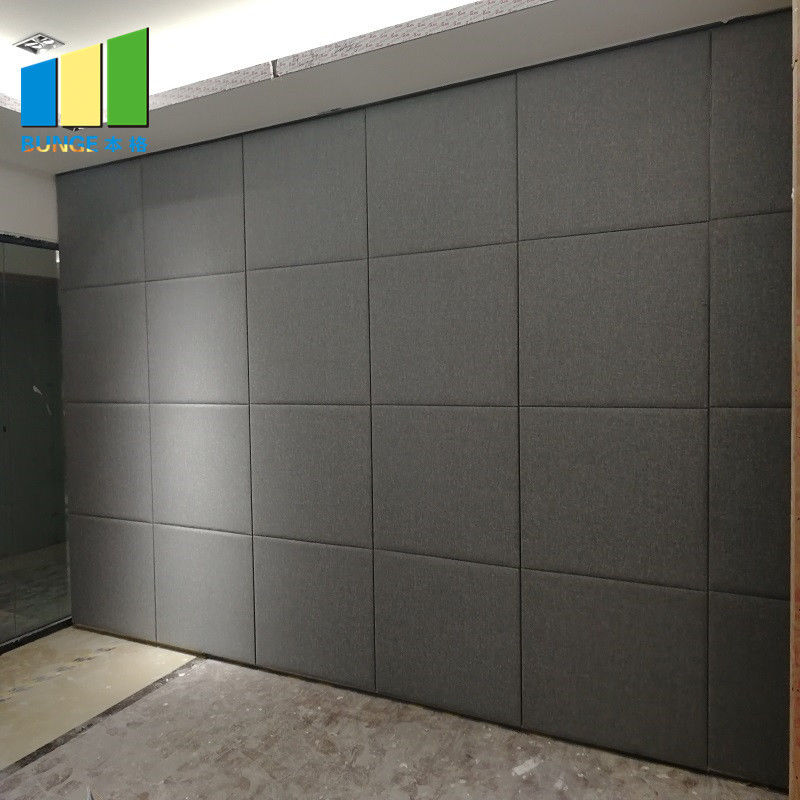

Myanmar MDF Acoustic Fabric Rolling Movable Partition Walls For Restaurant
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm acoustic fabric partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Fabric Folding Partitions | Application: | Restaurant Partition Walls |
|---|---|---|---|
| Finishing: | Fabric , Melamine , Wooden | Thickness: | 65 Mm(2 9/16 Inch) |
| Color: | Multiple Color | Sample: | Free |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Myanmar MDF Acoustic Fabric Rolling Movable Partition Walls For Restaurant
Acoustic fabric folding partitions details
Our acoustic fabric folding partition is a movable soundproof room partition system which forms a removable wall. The acoustic fabric folding partitions are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, our acoustic fabric folding partition has excellent soundproofing performance and they are hanging on an overhead track system.
Technical Specification Panel Configuration
The acoustic fabric folding partitions panels are customized to meet specific requirements. Each folding partition movable walls board thickness is 100mm and max width is 1200mm. Each single acoustic fabric folding partitions panel is welded with a welded aluminum frame and 9mm MDF is mounted on both sides of the outer surface. The internal structure is made of steel mechanism, which combines excellent performance at the top and bottom of the telescopic sound seal. Internal space is filled with less than 64 kg/m3 glass wool.
Overhead track system
specific aluminum alloy rails to meet the necessary stacking requirements. The intersection design should prevent the track wheel from falling into the track groove. Heavy-duty multi-way roller enables easy movement of the sliding partitions for rooms through the ceiling track.The panel of acoustic fabric folding partition has a unique fast seal winding mechanism and a solid vertical seal edge profile to ensure that all panels fit perfectly.
Sound Seal System
Built-in excellent retractable top and bottom seals are anodized by extruded aluminum channels, rubber sealed, and operated by a handle with a cap lock system with spring-loaded telescopic rods. The vertical seal of each panel is made of thick and tongue-type extruded aluminum laminated with rubber seal.
Top and bottom seals do not collected to the ceiling track and floor during panel’s movement. When the sound seals are combined, the acoustic fabric folding partitions panel is placed in a stable position, and the top and bottom seals are compressed on the rails and floors by tight acoustic seals, including adjustable telescopic panels.
Technical Information
| Series | BG65 | BG80 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
| Max height | 3500mm | 5200mm | 17000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | ||
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire retardant | as request | ||
| Retractable seals | have | ||
| Adjustable panels | Manual, with supplied operating handle | ||
| Pass doors | Single door or double door as request | ||
| Sound insulation | 32dB | 40dB | 50dB |
| Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
Acoustic fabric folding partitions features
1. Large selection of standard finish treatment.
2. It can quickly and easily separate the space.
3. Retractable top and bottom seals allow easy movement.
4. Quick divide by simple pull / latch operation.
5. No floor track is needed for movable partition walls for rooms.
6. Tight vertical seal prevents sound leakage and helps align the panel during installation.
7. Acoustic fabric folding partitions are a modern decorative style with noise insulation, heat insulation, and fireproofing function.
