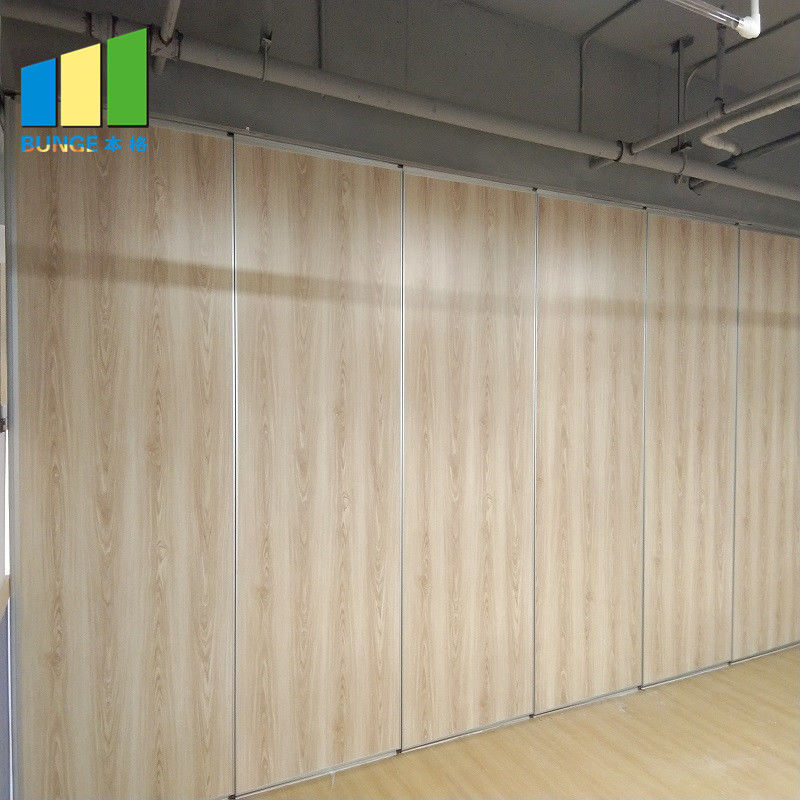

Melamine Board Soundproofing Movable Acoustic Folding Fabric Partition Walls
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm folding fabric partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Fabric Partitions | Application: | Office Partition Walls |
|---|---|---|---|
| Advantage: | Sound Proofing | Thickness: | 65 Mm(2 9/16 Inch) |
| Height: | 2-4 Meters | Frame: | Aluminum |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Melamine Board Soundproofing Movable Acoustic Folding Fabric Partition Walls
Folding fabric partitions details
- Material: MDF, glass fiber, aluminum sound proof
- Surface treatment: veneer, melamine
- Coefficient: 30-60db
- Width: 800-1230mm
- Height 2000-4200mm
- Color: multi-color design decorative sliding partition walls
- Fireproof: Yes
- Environment: E1 level
Folding fabric partition cases
Folding fabric partitions are made of high-quality anodized aluminum frame and environmentally friendly composite panels that move on ceiling tracks and do not require floor rails. The standard thickness of the panel is 65mm, 80mm and 100mm and the width is up to 1219mm. The maximum height is up to 17 meters high.
The folding fabric partitions consists of a series of interlocking panel and a quick set of foldable top and bottom seals. STC 32 to 53 is reached in the laboratory environment. Its excellent performance in sound insulation and the easy operation make it ideal for restaurants, schools, offices, religions, hospitals, shopping malls and many other indoor applications.
A wide range of finish options are available for acoustic partition walls: melamine faced MDF or particle board, fabric, carpet, leather, veneer, high pressure laminate, deck, acoustic board, white board. The panels can also supplied unfinished for site decoration.
Technical Information
| Panel Suspension | Top hunge system without the need for a floor track. | ||
| Panel Width | Each panel 600mm-1200mm. | ||
| Track | Aluminum OR Steel Track | ||
| Roller on panel | Single or Double Roller | ||
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. | ||
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. | ||
| Module | 700mm - 1200mm maximum. | ||
| Panel stacking | Numerous panel stacking options for complete flexibility. | ||
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. | ||
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. | ||
| Series | BG65 | BG80 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
| Max height | 3500mm | 5200mm | 17000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | ||
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire retardant | as request | ||
| Retractable seals | have | ||
| Adjustable panels | Manual, with supplied operating handle | ||
| Pass doors | Single door or double door as request | ||
| Sound insulation | 32dB | 40dB | 50dB |
| Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
Folding fabric partitions features
1)Folding fabric partitions interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2)Folding fabric partitions to ensure additional friction connection, shall be integrated with magnetic strip.
3)Folding fabric partition is easy element adjustment after installation.
4)Folding fabric partitions track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
5)Folding fabric partitions customized support and welcome.
