Commercial Furniture Folding Partitions System Soundproof Sliding Partition Walls For Hotel
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Walls | Application: | Hotel Partition Walls |
|---|---|---|---|
| Weight: | 25 - 35 Kg/m ² | Business Type: | Manufacturer |
| Price: | Negotiable | Function: | Soundproof Partition Walls |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

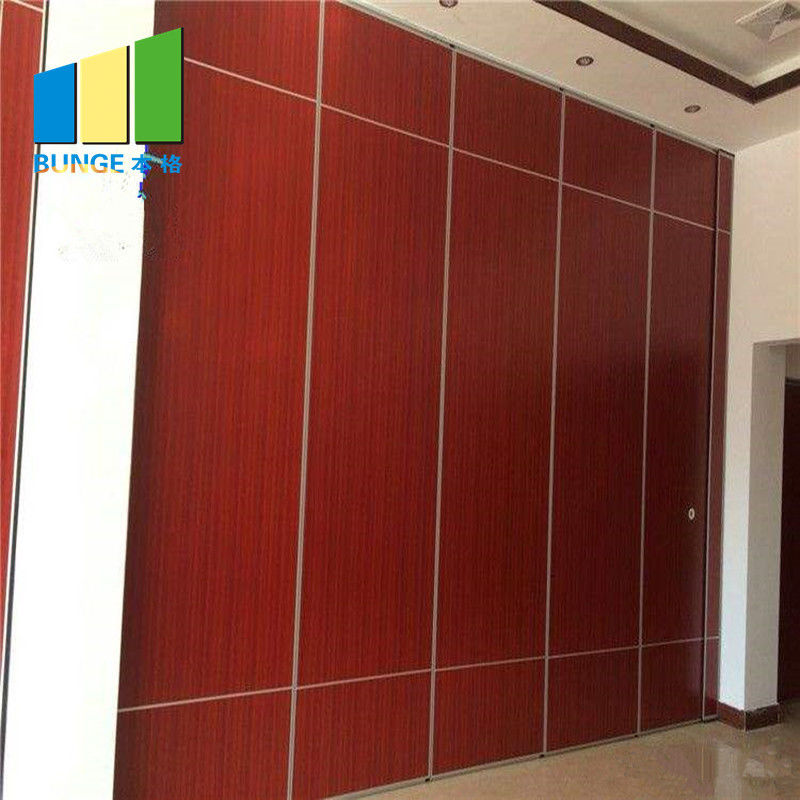

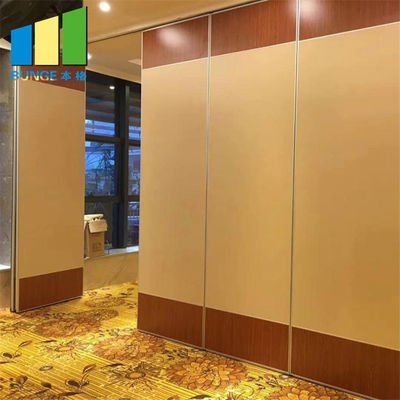

Commercial Furniture Folding Partitions System Soundproof Sliding Partition Wall for Hotel
Sliding partition walls for hotel installation
1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.
2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.
3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.
4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.
5. After the sliding partition walls track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.
6. The sliding partition walls for hotel should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.
7. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.
8. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.
9. In order to facilitate future maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance.
10. After the sliding partition walls panels for hotel are hung, it needs to be debugged. Please remember do not use the movable walls panel before our personnel have debugged the panel, otherwise forcible use will result in damage to the movable wall panels.
Technical information
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
Sliding partition walls advantages
Engineering transparency, quality assurance
1. Because it is a factory production,information: The transparency of high compartments is high. There are templates and instructions for each material, no shoddy material will appear;
2. All products passed the test;
3. Because it is an assembly, it is easy to see the effect on the spot.
Product environmental protection
1. There is no damage to the ground. Overhead rails only need to install the rails on the floor or on the load beam or grid; there is no track on the floor.
2. It can perform surface fluorocarbon spraying. Unique aluminum alloy profiles: rail and partition wall aluminum alloy 6063T6 GB profiles.
3. Heavy-duty, wear-resistant suspension wheel: The life of the suspension wheel is more than 100,000 times.
4. It is not easy to swing and can be accepted 4 Strong stability: The partition is fully stable after being pulled out of the lock. Can withstand 50-100 kg of impact force; up to 15 meters.
Soundproofing and fire prevention
1. There are four sealing strips on the upper and lower sides of the door, and two sealing strips on the left and right sides. Maximum sound insulation up to 5 Sound and environmental protection: good sound insulation. The coefficient of the compartment can reach 60 decibels; and use environmental protection data to process.
2. Efficient fire protection, use of high-efficiency fire protection data, fire rating A.
Application
The sliding partition walls for hotel are widely used in hotel,auditorium,Gym,office,meeting rooms,exhibition halls,conference rooms,international convention centers,KTV,upscale restaurants,classroom,schools,hospitals,multi-purpose hall and other public places .
