|Product Name:||Folding Partition Wall||Material:||Aluminium Frame And Mdf Board|
|Height:||Less Then 6 M||Width:||500-1200 Mm|
|Thickness:||85mm||Function:||Space Divide,sound Proof|
|Application:||Gallery,theater,office,banquet Hall,hotel Ect||Warranty:||3-5 Years|
Sound proof partitions folding moving partition wall with aluminum frame
1.Movable sound proof partition walls can separate the space speedy and conveniently.
2.Top hung system without the need for a floor track.
3.Folding partition wall is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
4.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
5.The aluminium partition wall finished panel is hanging on the aluminum track, assembled with muti direction wheels.
6.Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Different surface use in different areas.Our main surface is mdf melamine, it can be more easy to clean.Also fabric and leather surface is very popular in conference room or banquet hall.And like dancing room or classroom,client prefer mirror surface.Also we can design surface pu leather with printing photos.If client prefer to paint color on panels, we suggest Mdf bare finish.If prefer to glue wallpaper, plywood surface is a good choice.
|Free Sample in 10 Days Inquiry now and you will have your sample in 10 day if you pay the express.||3-year Warranty The acoustic room divider made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years||OEM Service Your logo can be printed on the packaging carton|
Guangdong Bunge Building Matarial Industrial Co.,Ltd is professional company in manufacturing movable partitions.It also artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staffs with more than 10 years of experience in design,production and installation.

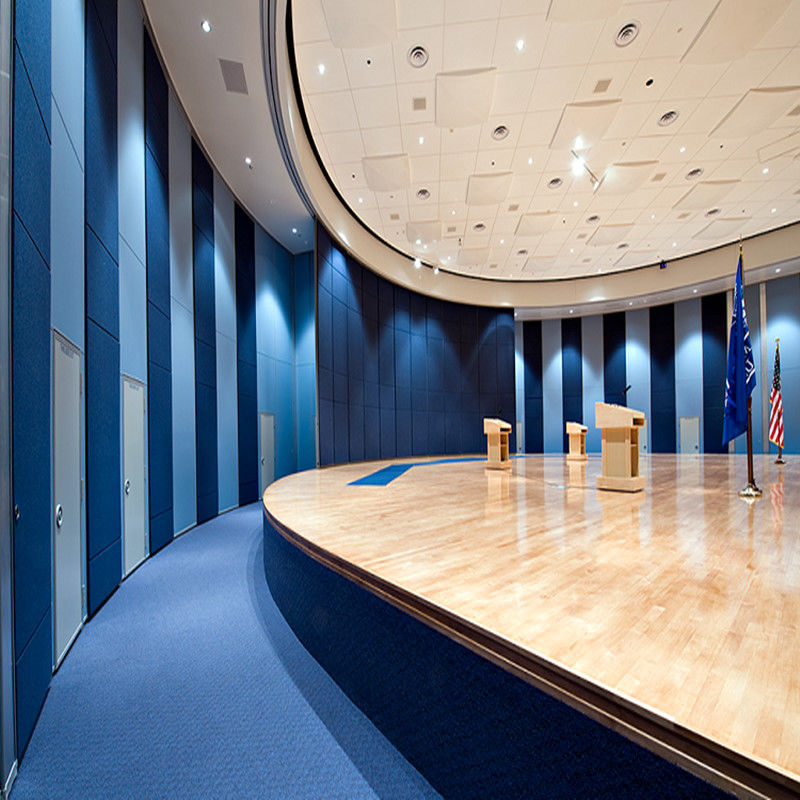

Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.
Nowadays,the modern trend in building needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the movable partition.
Bunge movable partition products as follow:
2.High Sound Proof Series:85MM,100MM；
3.Super High Series:Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame
We have clients from all over the world,they are satisfied with our soundproof movable partition walls.
When they came to our factory, they all surprised at our environment and our technology.
There are a big movable wall show room in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition etc.
