Soundproof Accordion Sliding Room Partitions Office Movable Partitions Wall Board
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls Board | Application: | Office Partition Walls |
|---|---|---|---|
| Surface: | Melamine, Fabric | Style: | Modern Sliding Partitions |
| Height: | 2 - 4 Meters | Thickness: | 65 Mm(2 9/16 Inch) |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

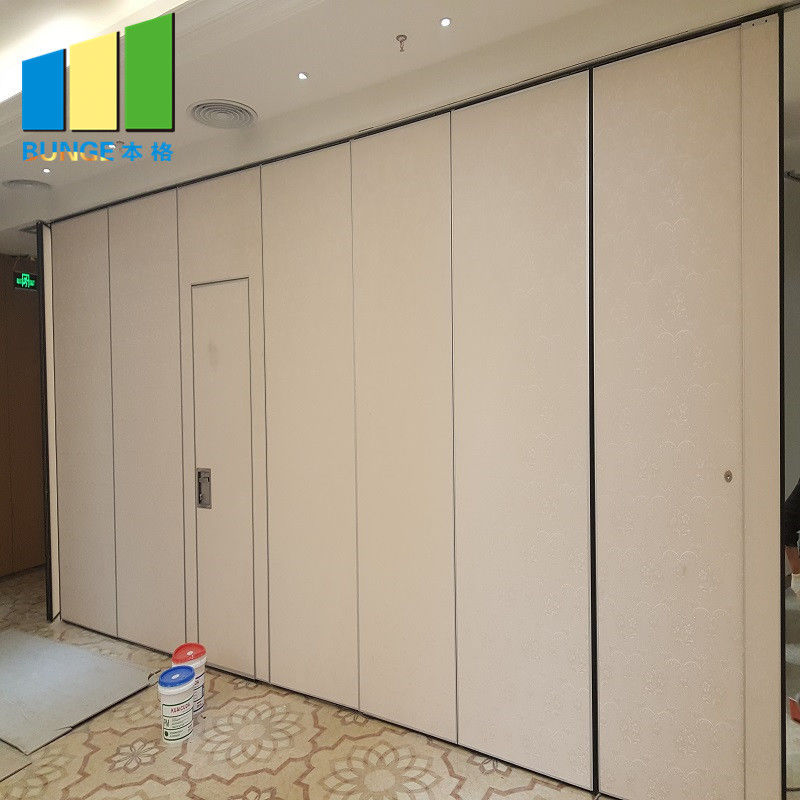

Soundproof Accordion Sliding Room Partitions Office Movable Partitions Wall Board
Description:
Movable partition walls board, the flexible space configuration, with little effort rooms can be partitioned.It can make smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
We can provide single or double pass doors, that can let people more easy to be in from one room to another room.Sliding aluminium track and roller can match different series sliding panels.Also clients can choose finished surface that they preferred.
Type 65 movable partition walls board is the best cost-effective partition.It has light weight, also is easy operation and flexible.Each door can be a single hanging wheel hanging and sliding.Per sliding panel can be rotated 360 degrees, or two hanging wheel suspension can be full-slide.
Advantage:
(1) The movable partition walls board surface can be made of any decorative surface, perfectly combined with the interior decoration style;
(2) The movable partition walls board are free to move freely and promote flexibility, which can be hidden in special storage cabinets without affecting the overall appearance;
(3) Each movable partition walls board is equipped with a telescopic mechanism, which can serve as a fixed screen and achieve soundproofing;
(4)It is made of high-efficiency flame-retardant material and has good fireproof performance.
Technical information
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
Structure:
The movable partition walls board are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Movable partition walls board system is a high quality bespoke system to suit timber panels up to 150 kiliograms in weight, there are multiple options for Door types, parking areas and track layouts.
Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
Operation:
All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails.
After pushing the movable partition walls board to its place, fix the board. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.
