Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board
Product Details:
Place of Origin: | Guangzhou, China |
Brand Name: | EBUNGE |
Certification: | ISO 9001 |
Model Number: | 65 mm movable partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ, small quantity welcome |
---|---|
Price: | $82-98 per square meter. |
Packaging Details: | Paper carton, outside with wooden box. |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50000 square meters per month |
Detail Information |
|||
Product Name: | Movable Partition Walls Board | Application: | Classroom Partition Walls |
---|---|---|---|
Surface: | Melamine, Fabric | Style: | Modern Sliding Partitions |
Track: | Anodized Aluminum | Thickness: | 65 Mm(2 9/16 Inch) |
High Light: | movable walls on wheels,movable partitions systems |
Product Description

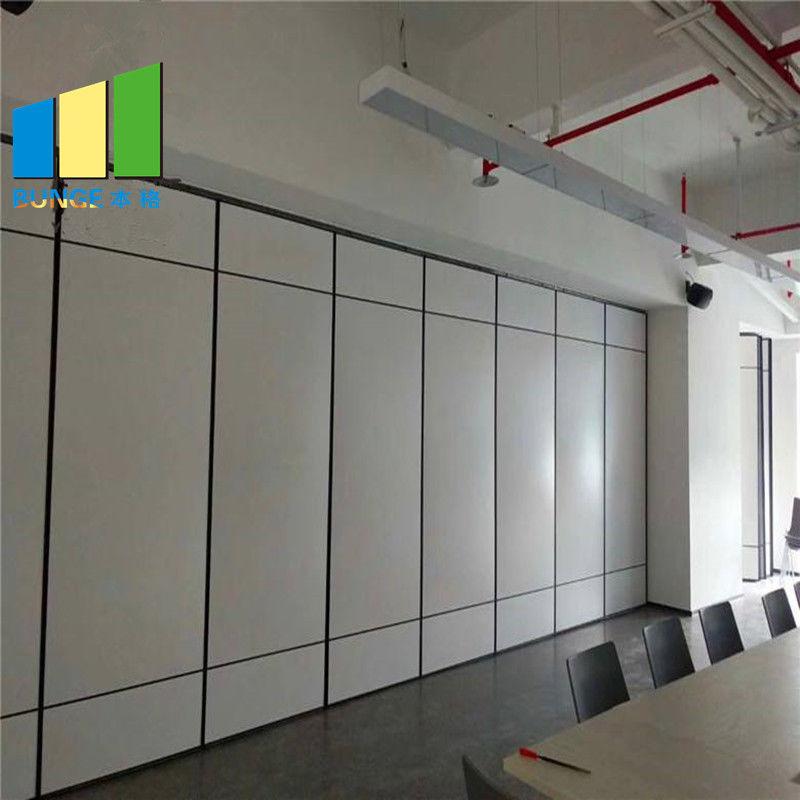

Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board
Description:
Movable partition walls board are specified where functional space delineation is an integral element within the partition project.
Due to their flexibility and cost effectiveness, they allow large rooms to be conveniently sub-divided to maximize space utilization.
The movable partition walls board consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.
Surface:
Melamine: In fact, it is a layer of colored paper pressed on the fiber board.
The moisture resistance of the plywood is better than that of the MDF; the disadvantage is that the surface flatness is worse than that of the MDF.
Leather or fabric with soft covers,hard cover, and is divided into borders (similar to mountings), already covered (the borders are not exposed).
Technical information
Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
Suspensionsystem | Aluminum hanging | Steal Hanging | |||
Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
Side walls sealing strength | Double seal tape | ||||
Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized |
Advantage:
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Retractable and flexible: The movable partition wall board move freely, promote flexibility, and one person can complete the entire process of partitioning;
4. Convenient collection: when closing, the movable partition walls board can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.
Our service:
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated.
We can offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
Movable partition walls board FAQ
Q1. Can I have a sample order for movable partition walls board?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the leading time?
Sample needs 3-5 days, mass production time needs 10-20 days for order quantity more than 300 square meter
Q3. Do you have any MOQ limit for movable partition walls board order?
Low MOQ, 20 square meter, because its big size and volume.
Q4. How do you ship the samples and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. Do you provide installation?
We provide installation guide, in general, we send two person for installation instructions on site, customer need cover tickets, hotels, accommodations, 120-200USD one person per day for instructions.
Q6. Is it OK to print my logo on packing?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the movable partition walls board?
Yes, we offer three years warranty to our products.
