|Product Name:||Acoustic Partition Walls||Application:||Meeting Room Partitions|
|Aluminium Alloy:||6063-T6||Frame Thickness:||65 Mm|
|Function:||Room Divider / Partition||Style:||Modern|
acoustic operable partitions,
movable acoustic partition walls

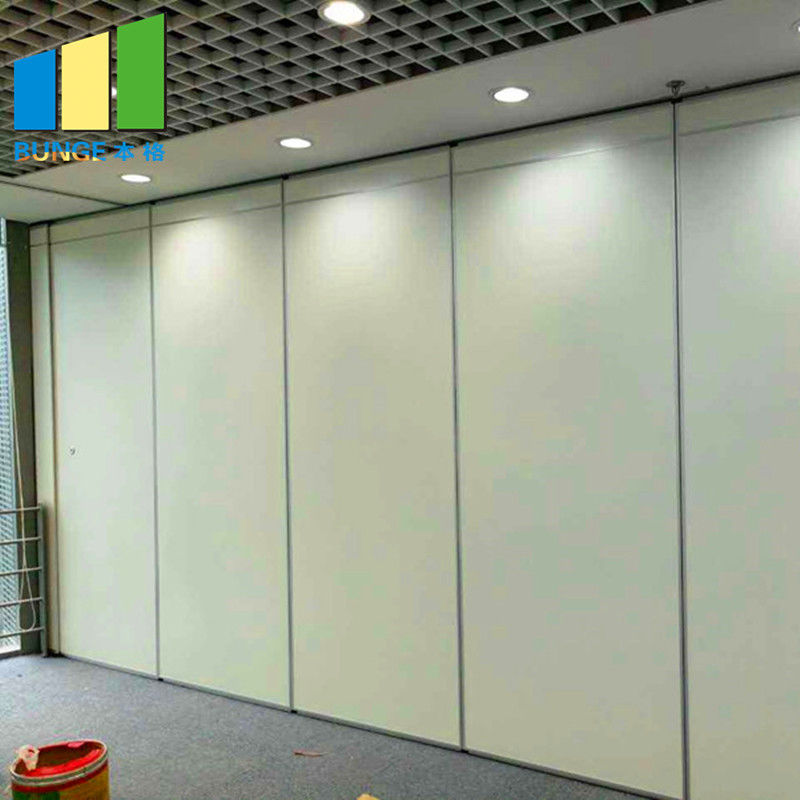

MDF Movable Folding Banquet Hall Meeting Room Acoustic Partition Walls
Acoustic partition walls details
Panel Configuration – The meeting room acoustic partition wall panels are customized to meet specific requirements. Each meeting room acoustic partition walls board thickness is 65 mm and max width is 1200mm. Each single room partition wall panel is welded with a welded aluminum frame and 9mm MDF is mounted on both sides of the outer surface. The internal structure is made of steel mechanism, which combines excellent performance at the top and bottom of the telescopic sound seal. Internal space is filled with less than 64 kg/m3 glass wool.
Overhead track system – Specific aluminum alloy rails to meet the necessary stacking requirements. The intersection design should prevent the track wheel from falling into the track groove. Heavy-duty multi-way roller enables easy movement of the conference room partitions through the ceiling track.
The panel of meeting room acoustic partition wall has a unique fast seal winding mechanism and a solid vertical seal edge profile to ensure that all panels fit perfectly.
Sound Seal System – Built-in excellent retractable top and bottom seals are anodized by extruded aluminum channels, rubber sealed, and operated by a handle with a cap lock system with spring-loaded telescopic rods. The vertical seal of each panel is made of thick and tongue-type extruded aluminum laminated with rubber seal.
Top and bottom seals do not collected to the ceiling track and floor during panel’s movement. When the sound seals are combined, the meeting room acoustic partition walls panel is placed in a stable position, and the top and bottom seals are compressed on the rails and floors by tight acoustic seals, including adjustable telescopic panels.
Meeting room acoustic partition walls features
Many conference room partitions panel stack options are completely flexible;
No floor track to get in the way;
Individual acoustic partition wall panel can be stored to maximize the use of space.
Operable top and bottom seals for easy operation;
A wide range of surface finishes are available for conference room partitions.
High performance multiple fill for maximum noise reduction;
Sound insulation aluminum frame structure, enhance the acoustic effect;
Unique track systems ensure quiet and easy operation;
Three panel thickness are available for a variety of acoustic requirements.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
