Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 85 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcome
Price: $82-98 per square meter.
Packaging Details: Paper carton, outside with wooden box.
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sliding Partition Walls Application: Hotel Partition Walls
Feature: Fire Resistant Weight: 30 Kg/m²
Thickness: 85 Mm(3 1/4 Inch) Warranty: 3 Years
High Light:

sliding folding partition

,

sound proof sliding partitions

Product Description

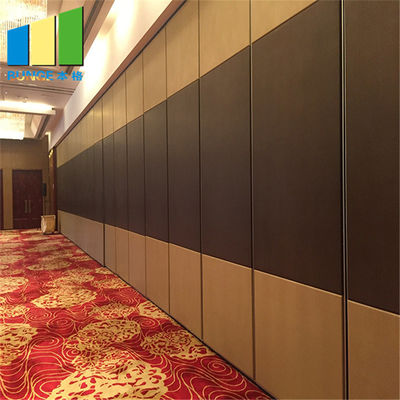

Aluminum Profile Collapsible Folding Manual Movable Sliding Partition Walls for Hotel



Sliding partition walls details:



1. Poduction: 5000 squre meter per month;



2. All of the siding partition walls can be customized;



3. Three series for different choice:


65mm-up to 4ms H, 85mm-up to 6ms H, 100mm-up to 13ms H;



4. Panels width: 600mm to 1200mm;



5. Panels height: up to 17ms height.



6. Panels thickness: 65mm-(2 9/16)", 85mm-(3 3/8)", 100mm-(3 15/16)",



7. Sound proof: from 20db to 53db.


Bunge's reputation for quality and reliable products, clever designs and an insistence on excellent service is the reason why architects, engineers and contractors routinely insist on Bunge partition walls for their building projects.

Aluminum Profile Collapsible Folding Manual Movable Sliding Partition Walls For Hotel 0



Technical Information



Model BG65 BG85 BG100 Ultra-high System
Suspension System Hanging System, with ceiling rails
Partition Panel Basic Thickness 65mm 85mm 100mm 100 mm
Max Height Max 4200 mm Max 5500 mm Max 7000 mm Max 15000 mm
Width 800 -1230mm

Floor/ceiling

Sealing strength

Telescopic aluminum tube with rubber strip

Side Walls Sealing

Strength

Double seal tape
Base Board Thickness 9 mm 9 mm 12 mm 12 mm
Vertical Profiles Aluminum anodised with sealing profiles
Retractable Seals Aluminum black with double rubber seals
Operation Manual System, with supplied operating handle
Pass Doors Single or Double Pass Through Door Available
Weight Approx 22-35 kg/m² Approx 25-40 kg/m² Approx30-48 kg/m² Approx38-68 kg/m²
Finish Options Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)
Service OEM & ODM Support
Warranty 3 Years

Aluminum Profile Collapsible Folding Manual Movable Sliding Partition Walls For Hotel 1



Sliding partition walls features



1.Movable, interlocking panels suspended from an overhead track system.



2.Sound rated panels for effective noise control.



3.Available in paired (folding) and individual (omni-directional) configurations.



4.Can include access doors for easy entry and exit.



5.Blend with a room's aesthetics, similar to a permanent wall when extended.



6.Available in a wide range of colours and finishes, including: MDF, Melamine, Fabric, Leather, veneer,Landscope painting, Wall paper, Wood mouldings, etc.

Aluminum Profile Collapsible Folding Manual Movable Sliding Partition Walls For Hotel 2
