Manual Ultrahigh Soundproof Sliding And Folding Partition Wall For Gymnasium
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Application: | Bank ,office |
|---|---|---|---|
| Material: | Wooden | Track Material: | Aluminum |
| Thickness: | 65 Mm | Height: | Up To 4000mm |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

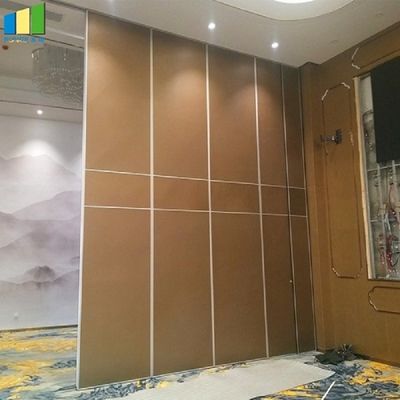

Manual Ultrahigh Soundproof Sliding And Folding Partition Wall For Gymnasium
BUNGE offers various partition wall systems ,The steel struts are milled from a single piece of steel and formed to create two internal chambers. This enables solid walls or glazed elements as well as organisational and acoustic systems to be inserted in every vertical partition wall seam. Structural and physical demands such as sound insulation, fire protection and statics are all fulfilled thanks to the construction method and materials used. BUNGE partition walls are re-usable. They are easy to move in order that a room layout can be modified with minimum effort should re-organisation be required. This is even possible during everyday business, as almost no mess is created.
Technical Details
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Passdoors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Creative flexibility
BUNGE wall systems are modular systems and are available in solid wall, balustrade wall, clerestory wall or glass wall versions. Many different design possibilities for the system are possible due to the diversity of materials (glass, wood, aluminium, textile) and the large range of colours available. The solid elements and glazed elements are simply inserted into the mullion and can be easily exchanged.
Advantages at a glance
Easy to assemble and relocate
High sound insulation and fire protection
Compatibility of all systems
Integration of acoustic elements
heights up to 17 metres
High cost-effectiveness (economical room layout, long-term usage)
Flexibility, modularity, functionality, design freedom
Sustainability (durable, re-usable, recyclable)
Organisational systems can be integrated
