Product Details:

Place of Origin: China
Brand Name: Bunge
Model Number: 85 mm Movable Partition

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meters
Price: USD 75-95/ Square Meter
Packaging Details: Carton package , Paper package
Delivery Time: 10 working days after received your down payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5,000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Product Name: Movable Partition Wall Advantage: Sliding ,folding
Service: OEM ODM Finish: MDF ,Melamine
Application: Bank ,office Thickness: 85 Mm
High Light:

movable walls on wheels

,

acoustic movable walls

Product Description

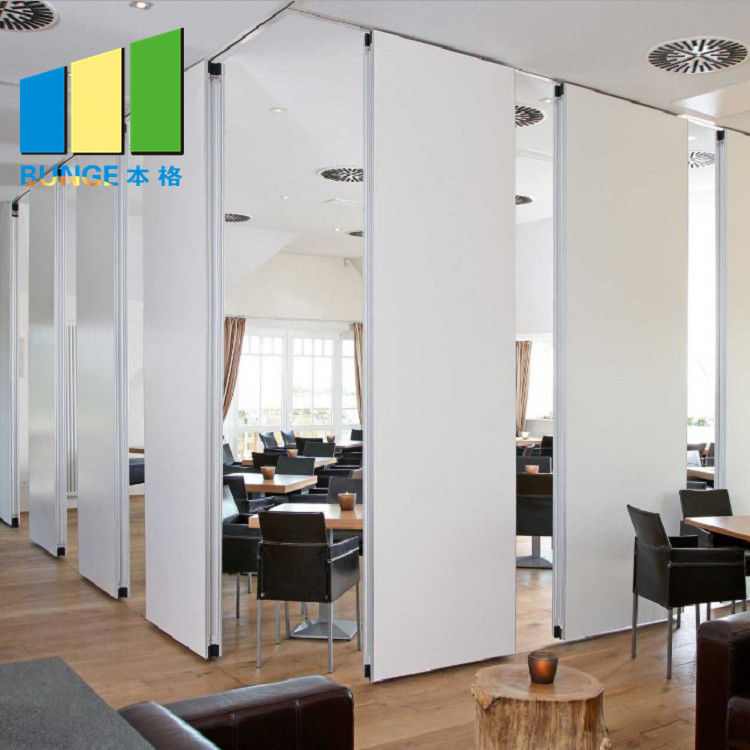

85mm High Strength Soundproof Office Divider Wall Separation Partition Wall



BUNGE partition wall operable

When moving a wall panel there is a 20-25 mm gap between the top pf the endersize of the head track ,there is a similanr gap between the bottom of the panel and the floor.

Once a panel is posititoned ,acoudtic integrity is maintained along the top and bottom of the panel by extending predure seals.The pressure seals are extendes and retracted by a single 180 degree ture of a removable op erating handle.

Final closure of the wall is achwared by extending a telescopic sleeve on the last panel .This action simultaneously the top and bottom seals.



85mm High Strength Soundproof Office Divider Wall Separation Partition Wall 0



Series BG 65 BG 85 BG100
Panel supension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 8000 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Face material 9 mm 9 mm 9 mm
Pass doors Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 32 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)



85mm High Strength Soundproof Office Divider Wall Separation Partition Wall 1


BUNGE Technical Description Feature
1. Top hung with no floor track required
2. High acoustic ratings up to 56dB available
3. Retractable acoustic seals at top and bottom of each panel operated either by a quick release handle
4. Single or twin point suspension for central or offset stacking options
5. Variable track arrangements
6. Junction panels enable corner, three or four way abutments
7. Panel finishes include Melamine Laminate, Veneer, Vinyl, Magnetic Dry Wipe Whiteboard or Painted, etc
8. Optional inset pass doors, fully glazed panels and vision panels
9. Closure panel fitted with face operated telescopic "nose"



Our Advantage
Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.

Retractable Pressure Seals--Once the panel is positioned, they are sealed in place with retractable

Telescopic sleeve panel--Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the wall tightly to reach acoustic integrity.



85mm High Strength Soundproof Office Divider Wall Separation Partition Wall 2
